Commercial 1000kg/24h Ice Maker Cube Industrial Ice Making Machine
Product Overview
Key Specifications
Ice Production
1000kg/24h
Compressor
HIGHLY/COPELAND
Refrigerant
R404a/R22/R134a
Ice Size
22*22*22mm or customized
Power Supply
220V/380V/415V/460V 3P/50hz/60hz
Product Features
- Automatic control panel with fault code display for easy operation and monitoring
- Time-controlled ice thickness adjustment (no need to open front cover)
- High-efficiency scroll compressor with low noise operation
- High-quality copper electroplated ice tray for faster heat transfer and longer service life
- Independent ice storage bucket with large capacity
- PLC + Push Button control system
- Available in both air cooling and water cooling options
Product Line Specifications
| Model |
Output |
Input Power |
Ice Storage |
Refrigerant |
Power Supply |
Machine Size |
| ETD-C120 |
54kg/24h |
400W |
26kg |
R404a/R134a/R22 |
220v/1p/50hz |
530*600*820mm |
| ETD-C150 |
68kg/24h |
420W |
46kg |
R404a/R134a/R22 |
220v/1p/50hz |
530*600*820mm |
| ETD-C200 |
90kg/24h |
600W |
60kg |
R404a/R134a/R22 |
220v/1p/50hz |
530*600*820mm |
| ETD-C280 |
128kg/24h |
650W |
66kg |
R404a/R134a/R22 |
220v/1p/50hz |
680*690*1000mm |
| ETD-C300 |
136kg/24h |
750W |
150kg |
R404a/R134a/R22 |
220v/1p/50hz |
560*830*1560mm |
| ETD-C350 |
158kg/24h |
800W |
150kg |
R404a/R134a/R22 |
220v/1p/50hz |
560*830*1580mm |
| ETD-C500 |
227kg/24h |
1180W |
250kg |
R404a/R134a/R22 |
220v/1p/50hz |
760*830*1610mm |
| ETD-C700 |
318kg/24h |
1350W |
250kg |
R404a/R134a/R22 |
220v/1p/50hz |
760*830*1730mm |
| ETD-C1000 |
454kg/24h |
1860W |
250kg |
R404a/R134a/R22 |
220v/1p/50hz |
760*830*1780mm |
| ETD-C1200 |
544kg/24h |
2150W |
250kg |
R404a/R134a/R22 |
220v/1p/50hz |
760*830*1800mm |
| ETD-C1500 |
681kg/24h |
2800W |
480kg |
R404a/R134a/R22 |
220v/1p/50hz |
1240*950*1910mm |
| ETD-C2000 |
1000kg/24h |
3680W |
480kg |
R404a/R134a/R22 |
380v/3p/50hz |
1240*950*1950mm |

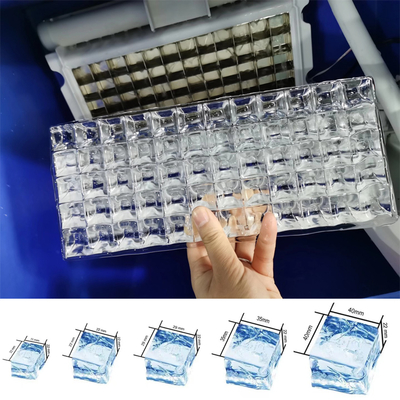

Available Ice Cube Sizes
Custom sizes available (maximum size 45*45*22mm):
- 11x22x22mm
- 22x22x22mm
- 29x29x22mm
- 35x35x22mm
- 40x40x22mm
Premium Components
Production Process
Applications
Ideal for hotels, KTV, bars, banquet halls, western restaurants, fast food restaurants, convenience stores and cold drink shops where high-quality ice cubes are needed.
Frequently Asked Questions
Q1: What is the lifespan of the machine?
It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Regular cleaning is recommended.
Q2: What is your payment method?
We accept T/T, pre-T/T+L/C, 100% L/C at sight, or payment through Alibaba platform.
Q3: Which brands of compressors do you use?
We use premium brands including BITZER, Frascold, Refcomp, Copeland, and Highly.
Q4: What type of refrigerant are you using?
We typically use R22, R404A, and R507A refrigerants. Special requirements can be accommodated.
Q5: Do I need to add refrigerant and refrigeration oil to the machine I received?
No, we add refrigerant and refrigerating oil according to standards before shipment. You only need to connect water and electricity to use.
