Automatic Ice Block Making Machine

Automatic Ice Block Making Machine

  • Highlight

    Automatic ice block making machine

    ,

    380v ice block making machine

    ,

    R22 ice block machine

  • Applicable Industries
    Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
  • Condition
    New
  • Ice Shape
    ICE BLOCK
  • Voltage
    380v 3p 50hz Customize
  • Power
    185.5kw
  • Dimension(L*W*H)
    14100*6600*3500mm
  • Weight
    3600 KG
  • Warranty
    1.5 Years
  • Key Selling Points
    Long Service Life
  • Ice Storage Capacity
    Customized Cold Storage
  • Machinery Test Report
    Provided
  • Video Outgoing-inspection
    Provided
  • Warranty Of Core Components
    1.5 Years
  • Core Components
    Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
  • Compressor Brand
    Frascold, Bitzer, Copeland, Refcomp
  • Application
    Industrial
  • Cooling Capacity
    368KW
  • Total Power
    453KW
  • Block Ice Thickness
    12cm, 16cm, 18cm Customized
  • Block Ice Height
    40, 60, 80, 100cm Customized
  • Block Ice Length
    Customized
  • The Refrigerant
    R22/R404A/R507
  • Condensation Method
    Air-cooled/Water-cooled/Evaporative Cooling
  • Block Ice Weight
    5kg~50kg Customized
  • After-sales Service
    Remote Technical Guidance, On-site Maintenance And Installation
  • Key Words
    Salt Water,Large Ice Machine,ice Factory,manufacturer,gold Supplier
  • Port
    Shanghai/Guangzhou/Ningbo
  • Place of Origin
    Shanghai, China
  • Brand Name
    ICEMA
  • Price
    $3,500.00/sets >=1 sets
  • Packaging Details
    Wooden case/Container
  • Supply Ability
    1000 Set/Sets per Month

Automatic Ice Block Making Machine

ICEMA Automatic Ice Block Making Machine Industrial Brine Block Ice Machine for Fishery Ice Factory

Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice weight(kg/pc) machine size(L*W*Hmm)
BMB20 2T 14 7.7 14.3 R22/R404A 6.43 20/30/50kg 4150*1650*2480
BMB30 3T 21.5 11 21.4 R22/R404A 9.74 20/30/50kg 5000*1800*2480
BMB50 5T 35.9 18 35.6 R22/R404A 16.2 20/30/50kg 5700*2200*2480
BMB80 8T 56.7 30.7 61.4 R22/R404A 27 20/30/50kg 6300*2200*2480
BMB100 10T 77.3 37.5 75 R22/R404A 33.7 20/30/50kg 6450*2360*2530
BMB120 12T 85 41.35 82.7 R22/R404A 37.3 20/30/50kg 7100*2350*2690
BMB150 15T 106.8 59.3 116.6 R22/R404A 49.3 20/30/50kg 8670*2750*2690
BMB200 20T 147 85.8 170.6 R22/R404A 75.1 20/30/50kg 8960*3250*2690
BMB250 25T 210 92.4 184.8 R22/R404A 83.2 20/30/50kg 11400*3250*2690
BMB300 30T 230.8 107 214 R22/R404A 92 20/30/50kg 12950*3250*2690
Automatic Ice Block Making Machine 0

PRODUCT DESCRIPTION
Automatic Ice Block Making Machine 1

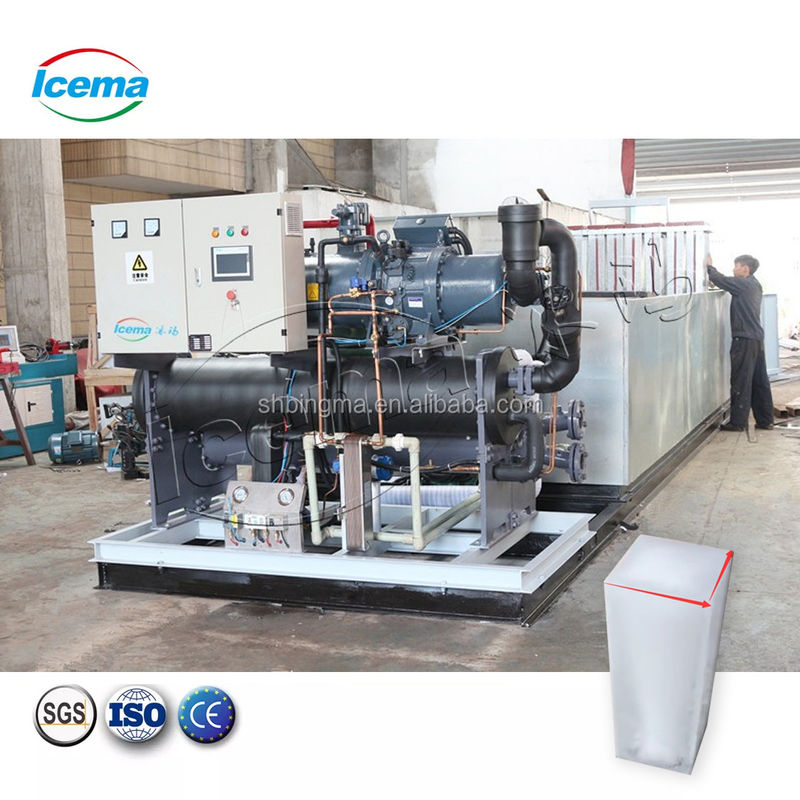

Brine Block Ice Machine
Output:20T/24hours
Ice Weight:5kg~100kg
Ice Size:can be customized
Compressor:Germany Bizter/Itay Refcomp or other
Cooling method:air cooling/water cooling/evaporative cooling
Voltage: 380v 3p 50hz(customized)
Over 12ton,you need to build the brine tank by yourself
Features:
Block ice of various yields and sizes can be customized Block ice are not edible and are usually used for transportation, keep fresh and cooling
1.ice inedible 2.The price is cheaper than direct cooling 3.Selling Ice/Fresh/Keeping Cooling 4.Flexible ice cube size design 5.Can be connected to electronic equipment for remote monitoring 6.Easy to install

Automatic Ice Block Making Machine 2
Automatic Ice Block Making Machine 3
Automatic Ice Block Making Machine 4
Automatic Ice Block Making Machine 5

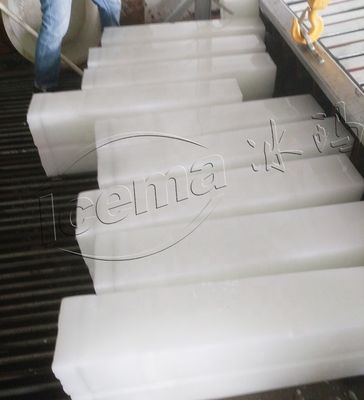

Ice Details
Automatic Ice Block Making Machine 6



The salt ice produced is firm, not easy to melt, and is easy to store and transport.

It is widely used in domestic fishery, food industry, transportation industry, medical institutions and other industries.
Automatic Ice Block Making Machine 7
Automatic Ice Block Making Machine 8
Product Accessories
Automatic Ice Block Making Machine 9
Automatic Ice Block Making Machine 10
Automatic Ice Block Making Machine 11

APPLICATION FIELD
Automatic Ice Block Making Machine 12
Automatic Ice Block Making Machine 13
OUR COMPANY
Automatic Ice Block Making Machine 14
Automatic Ice Block Making Machine 15
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Automatic Ice Block Making Machine 16
Automatic Ice Block Making Machine 17
Automatic Ice Block Making Machine 18
Certification
Automatic Ice Block Making Machine 19

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Customer Visit
Automatic Ice Block Making Machine 20
Automatic Ice Block Making Machine 21
Automatic Ice Block Making Machine 22
Automatic Ice Block Making Machine 23
Customer Feedback
FAQ




Q1-What is the lifespan of the machine?




R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment
without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.




Q2-What is your payment method?




R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at
the Alibaba background. We have several payment methods, which one do you think is more suitable for you?




Q3-Which brands of compressors do you use?




R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.




Q4-What type of refrigerant are you using?




R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has
special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)




Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?




R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you
only need to connect water and electricity to use.
