Home > products > Tube Ice Machine > 8T Ice Machine Tube With Stainless Steel Evaporator 8000kg

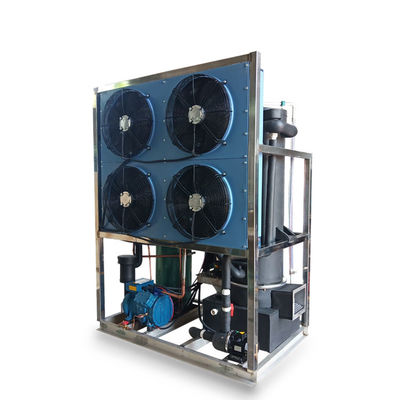

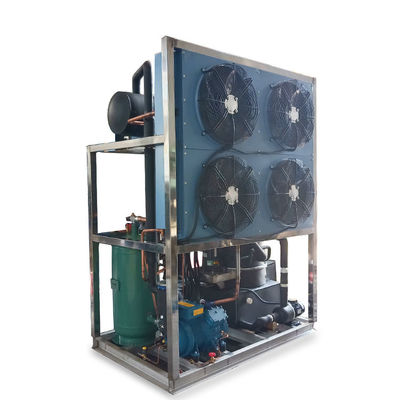

8T Ice Machine Tube With Stainless Steel Evaporator 8000kg

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Model Number: BMT80

Payment & Shipping Terms

Price: $33,000.00/sets 1-2 sets

Packaging Details: wooden case

Supply Ability: 5 Unit/Units per Month

Get Best Price
Highlight:

8T ice machine tube

,

ice machine tube 8000kg

,

380V ice maker tube

Capacity:
1000kg/24h
Certificate:
CE/ISO
Compressor:
Bitzer/Copeland
Condenser:
Finned Tube
Controller:
PLC
Dimension:
2500*1000*1800mm
Evaporator:
Stainless Steel
Ice Shape:
Tube Ice
Ice Size:
22mm
Power Supply:
220V/50Hz
Capacity:
1000kg/24h
Certificate:
CE/ISO
Compressor:
Bitzer/Copeland
Condenser:
Finned Tube
Controller:
PLC
Dimension:
2500*1000*1800mm
Evaporator:
Stainless Steel
Ice Shape:
Tube Ice
Ice Size:
22mm
Power Supply:
220V/50Hz
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 0
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 1
Products Description
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 2

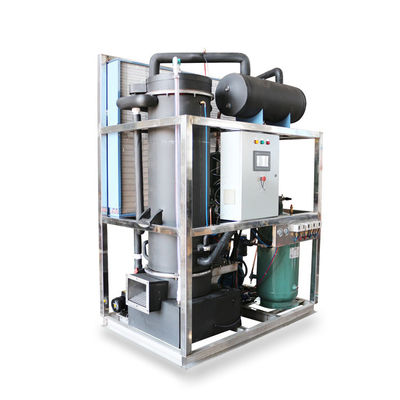

TUBE ICE MACHINE DESCRIPTION
Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 3
FUTURES

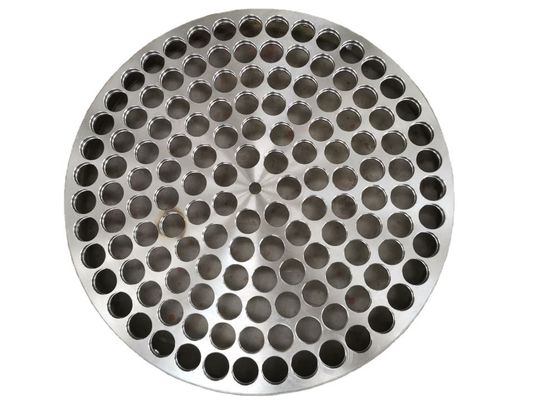

1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 4
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 5
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 6
8T Ice Machine Tube With Stainless Steel Evaporator 8000kg 7
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size L*W*H (mm)
BMT10
1T
8.9KW
4.6KW
9.2A
3.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT20
2T
17.7KW
8.3KW
16.6A
7.3KW
R22/R404A
Air/ Water
1490*900*1850
BMT30
3T
25.4KW
11.8KW
23.6A
10KW
R22/R404A
Air/ Water
1490*900*1850
BMT50
5T
40KW
17.35KW
43.5A
15.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT80
8T
67.5KW
32KW
64A
27KW
R22/R404A
Air/ Water
1490*900*1850
BMT100
10T
82.6KW
40KW
80A
33.8KW
R22/R404A
Water/ Evaporative
1490*900*1850
BMT150
15T
121.4KW
55.5KW
110A
48KW
R22/R404A
Water/ Evaporative
2750*1680*3500
BMT200
20T
166KW
70KW
140A
61.9KW
R22/R404A
Water/ Evaporative
 2960*2100*3550
BMT250
25T
205KW
92KW
184A
80KW
R22/R404A
Water/ Evaporative
3400*2350*3750
BMT300
30T
215KW
115KW
230A
102KW
R22/R404A
Water/ Evaporative
3950*2350*4050
