Home > products > Tube Ice Machine > Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory

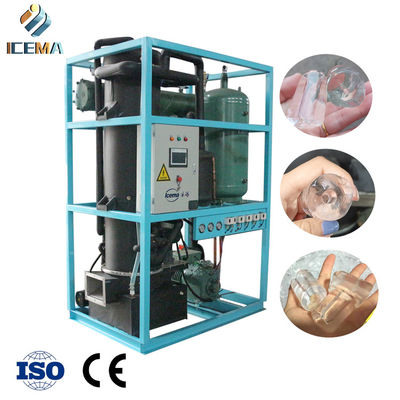

Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory

Product Details

Place of Origin: China

Brand Name: ICEMA

Certification: CE, ISO

Model Number: BMT10

Payment & Shipping Terms

Price: $8,500.00/pieces 1-4 pieces

Packaging Details: Wooden case

Supply Ability: 50 Set/Sets per Month

Get Best Price
Highlight:

10T Tube Ice Machine

,

5T Tube Ice Machine

,

1T ice maker tube

Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops, Other
Condition:
New
Ice Shape:
Tube
Voltage:
220V/380V
Weight:
750 KG
Warranty:
1.5 Years
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
Other
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Frascold, Bitzer, Copeland
Application:
Industrial
After-sales Service Provided:
Video Technical Support
Material:
304 Stainless Steel
Ice Size:
Diameter 21mm, 24mm, 28mm, 34mm
Refrigerant:
R404a/R22a/R134
Cooling Way:
Air Cooling Water Cooling
Evaporator:
Seamless Finishing Rolled Pipe
Feature:
High Efficiency+Easy Operating+Fast Making Ice
Ice Machine Type:
Tube Ice
Expansion Valve:
Danfoss-Denmark
Marketing Type:
Ordinary Product
Port:
Shanghai Port, Ningbo Port, Guangzhou Port
Applicable Industries:
Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Energy & Mining, Food & Beverage Shops, Other
Condition:
New
Ice Shape:
Tube
Voltage:
220V/380V
Weight:
750 KG
Warranty:
1.5 Years
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
Other
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Frascold, Bitzer, Copeland
Application:
Industrial
After-sales Service Provided:
Video Technical Support
Material:
304 Stainless Steel
Ice Size:
Diameter 21mm, 24mm, 28mm, 34mm
Refrigerant:
R404a/R22a/R134
Cooling Way:
Air Cooling Water Cooling
Evaporator:
Seamless Finishing Rolled Pipe
Feature:
High Efficiency+Easy Operating+Fast Making Ice
Ice Machine Type:
Tube Ice
Expansion Valve:
Danfoss-Denmark
Marketing Type:
Ordinary Product
Port:
Shanghai Port, Ningbo Port, Guangzhou Port
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory
Europe Standard Large Output Tube Ice Machine Maker Industrial Price 1T 5T 10T
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) Tube diameter(mm) machine size(L*W*Hmm)
BMT10 1T 8.9 4.6 9.2 R22/R404A 3.7 25/32/38 1490*900*1850
BMT20 2T 17.7 8.3 16.6 R22/R404A 7.3 25/32/38 1490*1050*1850
BMT30 3T 25.4 11.8 23.6 R22/R404A 10 25/32/38 1650*1150*1980
BMT50 5T 40 17.35 23.5 R22/R404A 15.7 25/32/38 1760*1250*2200
BMT80 8T 67.5 32 64 R22/R404A 27 25/32/38 2930*1290*2700
BMT100 10T 82.6 40 80 R22/R404A 33.8 25/32/38 2930*1290*2950
BMT150 15T 121.4 55.5 110 R22/R404A 48.8 25/32/38 2750*1680*3500
BMT200 20T 166 70 140 R22/R404A 61.9 25/32/38 2960*2100*3550
BMT250 25T 205 92 184 R22/R404A 80 25/32/38 3400*2350*3750

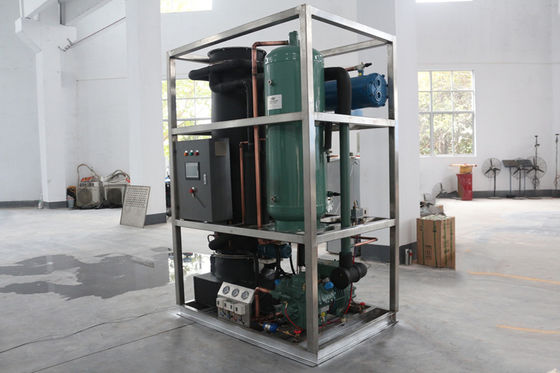

Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 0

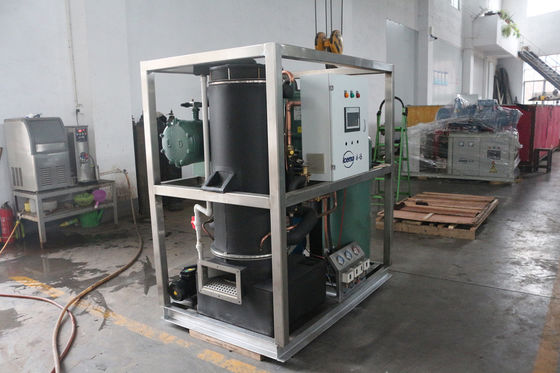

Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 1
TUBE ICE MACHINE DESCRIPTION

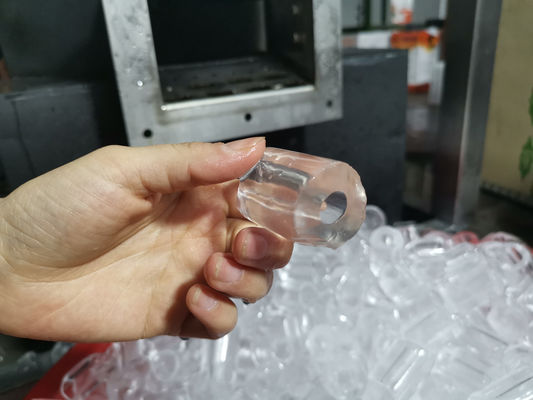

Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 2
FUTURES
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
Touch Screen
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 3
Main Accessories
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 4
Product Paramenters
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 5
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size L*W*H (mm)
BMT10
1T
8.9KW
4.6KW
9.2A
3.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT20
2T
17.7KW
8.3KW
16.6A
7.3KW
R22/R404A
Air/ Water
1490*900*1850
BMT30
3T
25.4KW
11.8KW
23.6A
10KW
R22/R404A
Air/ Water
1490*900*1850
BMT50
5T
40KW
17.35KW
43.5A
15.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT80
8T
67.5KW
32KW
64A
27KW
R22/R404A
Air/ Water
1490*900*1850
BMT100
10T
82.6KW
40KW
80A
33.8KW
R22/R404A
Water/ Evaporative
1490*900*1850
BMT150
15T
121.4KW
55.5KW
110A
48KW
R22/R404A
Water/ Evaporative
2750*1680*3500
BMT200
20T
166KW
70KW
140A
61.9KW
R22/R404A
Water/ Evaporative
 2960*2100*3550
BMT250
25T
205KW
92KW
184A
80KW
R22/R404A
Water/ Evaporative
3400*2350*3750
BMT300
30T
215KW
115KW
230A
102KW
R22/R404A
Water/ Evaporative
3950*2350*4050
Products catalogues

Partners
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 6
Application Field
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 7
Company Profile
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 8
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 9
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 10
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 11
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 12
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 13
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 14
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 15
Industrial tube ice machine 1T/24H for food processing in the catering industry laboratory 16
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.
round ice machine tube ice machine ice tube machine ice tube maker tube ice making machine tube ice maker
2 . Are the prices on the website accurate?
Because the price of the machine is affected by many factors, the price of the website is not very accurate.
tube ice machine price round ice maker ice tube maker machine tube ice machine philippines
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
1 ton tube ice machine tube ice plant ice tube machine 3 ton tube ice maker machine ice tube machine
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
2 ton ice tube maker commercial tube ice machine 1 tons
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release
your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
