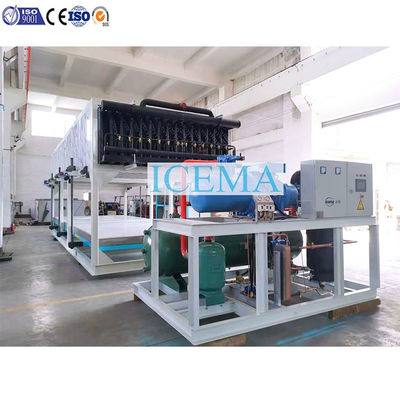

Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	ICEMA
Certification:	ce/iso
Model Number:	BMB-25T

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	$9,000.00/sets 1-1 sets
Packaging Details:	wooden case or plywood box or container or as per requests
Delivery Time:	20DAYS
Payment Terms:	L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability:	2 Unit/Units per Month 5 ton boat water maker

Contact Now

Detailed Product Description

Certificate:	CE/ISO/CCC	Compressor Brand:	Bitzer/Copeland
Condenser:	Shell And Tube	Controller:	PLC
Cooling Method:	Direct Cooling	Daily Capacity:	1~100 Tons
Evaporator:	Stainless Steel Tube	Ice Making Time:	2~3 Hours
Ice Shape:	Block	Ice Size:	Customized
Highlight:	25 Ton industrial ice block making machine ICEMA , Automatic industrial ice block making machine ICEMA , Direct Cooling industrial ice block maker ICEMA

Automatic 25 Ton Ice Block Making Machine Industrial Direct Cooling Block Ice Machine For Ice Plant

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice weight(kg/pc)	machine size(LWHmm)
BMB20	2T	14	7.7	14.3	R22/R404A	6.43	20/30/50kg	415016502480
BMB30	3T	21.5	11	21.4	R22/R404A	9.74	20/30/50kg	500018002480
BMB50	5T	35.9	18	35.6	R22/R404A	16.2	20/30/50kg	570022002480
BMB80	8T	56.7	30.7	61.4	R22/R404A	27	20/30/50kg	630022002480
BMB100	10T	77.3	37.5	75	R22/R404A	33.7	20/30/50kg	645023602530
BMB120	12T	85	41.35	82.7	R22/R404A	37.3	20/30/50kg	710023502690
BMB150	15T	106.8	59.3	116.6	R22/R404A	49.3	20/30/50kg	867027502690
BMB200	20T	147	85.8	170.6	R22/R404A	75.1	20/30/50kg	896032502690
BMB250	25T	210	92.4	184.8	R22/R404A	83.2	20/30/50kg	1140032502690
BMB300	30T	230.8	107	214	R22/R404A	92	20/30/50kg	1295032502690

PRODUCT DESCRIPTION

Model:BMB250
Ice Production:25000kg/24h

Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Net Weight:2860kg
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months

Features
1, one-time icing, saving labor and time;
2. Fully automatic ice making, ice melting and deicing process, high efficiency;
3. Modular design, convenient on-site installation, and convenient later movement;

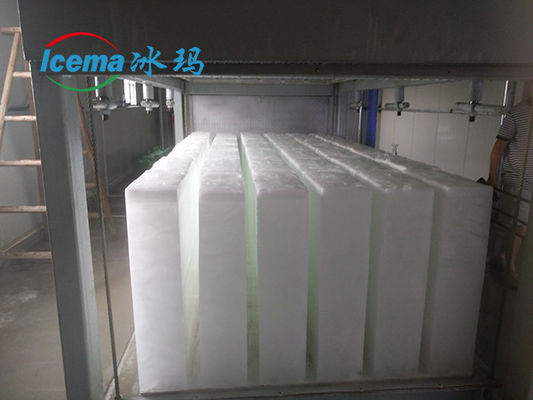

Ice Details

Feature

1.High density, high strength, not easy to melt
2.Can be made into colorful ice
3.Available in a variety of sizes
4.Clean, hygienic and free of impurities
5.Low temperature

Product Accessories

Bitzer /Refcomp/Frascold Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;

2.the brand effect is good, the quality is more guaranteed;

3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Reliable Condenser

1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;

2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;

SUS304 Evaporator

1.Use stainless steel material for good grade

2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency

PLC+ Touch screen

1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield

4.More status indications to facilitate machine
maintenance

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower

Cooling Pump

Pressure controller

Oil Separator

Solenoid valve

Dry Filter

Product Technical Map

Application Field

1.Port, wharf ice factory

2.Aquatic product preservation and cooling

3.Long-distance transportation, aquatic food preservation
4.Cooling and eating in special fields

5.Ice sculpture viewing

6.Edible ice fields, etc.

OUR COMPANY

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Certification

Customer Feedback

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
