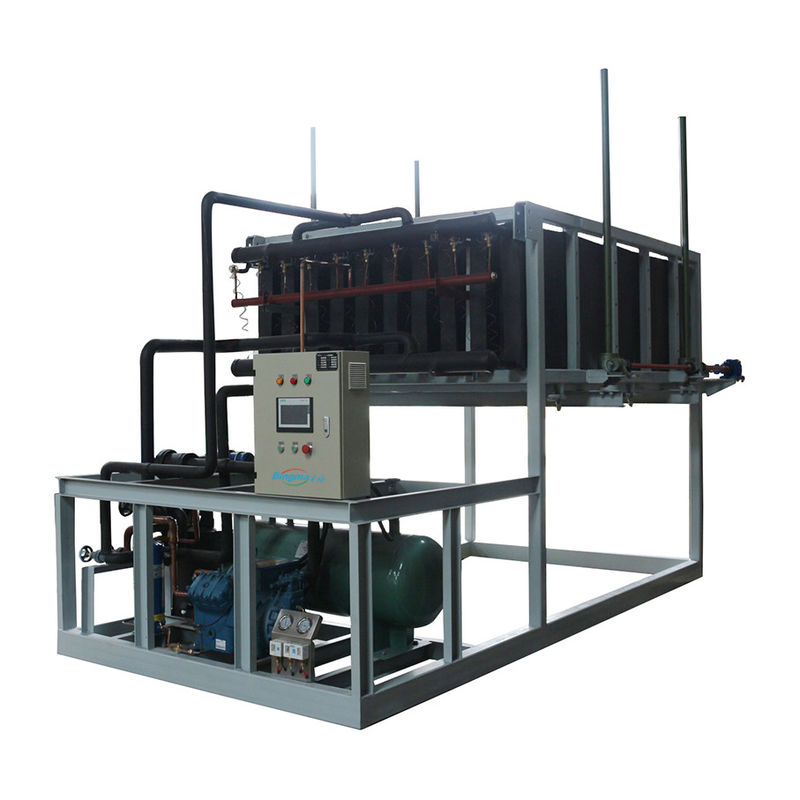

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Certification: ce

Model Number: BMB50

Payment & Shipping Terms

Price: $20,000.00/sets >=1 sets

Packaging Details: Wooden case or plywood box or container or as per requests

Supply Ability: 10 Set/Sets per Month

Get Best Price
Highlight:

Small Direct Cooling Block Ice Machine ICEMA

,

5t Direct Cooling Block Ice Machine ICEMA

,

380V small ice block machine ICEMA

Name:
Block Ice Machine
Ice Shape:
ICE BLOCK
Block Ice Weight:
25kg/30kg/50kg
Output:
5T
Voltage:
220V/380V
Power:
18kw
Rated Current:
35.6A
Refrigrant:
R404A/R507A
Dimension:
5700*2200*2480mm
Cooling Way:
Ari Cooling/water Cooling
Name:
Block Ice Machine
Ice Shape:
ICE BLOCK
Block Ice Weight:
25kg/30kg/50kg
Output:
5T
Voltage:
220V/380V
Power:
18kw
Rated Current:
35.6A
Refrigrant:
R404A/R507A
Dimension:
5700*2200*2480mm
Cooling Way:
Ari Cooling/water Cooling
Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling

Direct Small Ice Maker / Big Ice Machine /Block Ice For Food Transpoetation icegay



Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice weight(kg/pc) machine size(L*W*Hmm)
BMB20 2T 14 7.7 14.3 R22/R404A 6.43 20/30/50kg 4150*1650*2480
BMB30 3T 21.5 11 21.4 R22/R404A 9.74 20/30/50kg 5000*1800*2480
BMB50 5T 35.9 18 35.6 R22/R404A 16.2 20/30/50kg 5700*2200*2480
BMB80 8T 56.7 30.7 61.4 R22/R404A 27 20/30/50kg 6300*2200*2480
BMB100 10T 77.3 37.5 75 R22/R404A 33.7 20/30/50kg 6450*2360*2530
BMB120 12T 85 41.35 82.7 R22/R404A 37.3 20/30/50kg 7100*2350*2690
BMB150 15T 106.8 59.3 116.6 R22/R404A 49.3 20/30/50kg 8670*2750*2690
BMB200 20T 147 85.8 170.6 R22/R404A 75.1 20/30/50kg 8960*3250*2690
BMB250 25T 210 92.4 184.8 R22/R404A 83.2 20/30/50kg 11400*3250*2690
BMB300 30T 230.8 107 214 R22/R404A 92 20/30/50kg 12950*3250*2690

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 0



 According to different freeze way,Block ice machine is divided into direct small ice maker big ice machine block ice for food transpoetation direct small ice maker big ice machine block ice for food transpoetation and

brine refrigeration direct small ice maker big ice machine block ice for food transpoetation. Direct refrigeration direct small ice maker big ice machine block ice for food transpoetation adopts high quality aluminum plate as the evaporator, configuration of advanced control technology, the freezing environment is much safety and
health, so the ice is used in food industry. Brine refrigeration direct small ice maker big ice machine block ice for food transpoetation is used for traditional way of
seawater tank of ice, the configuration of modern automation control, greatly improving the efficiency of making ice and reduce the labor intensity of the workers.



Direct refrigeration direct small ice maker big ice machine block ice for food transpoetation



Features:





1. The hot extrusion of high quality aluminum plate evaporator, heat evenly fast;



2. Aluminum surface oxidation treatment, corrosion resistant, cleaner;



3. Small area, less labor;

4. The ice is not used seawater as heat transfer medium, so the ice can be

used as food additive;

5. Block ice Size can be customization that is same as seawater block ice.



All product images are in-kind real shoot, please rest assured that informationto buy

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 1

Model output
(kg)
Cooling
(kw)
input (kw) power (w) refrigerant
compressor power(kw)
ice weight(kg/pc) machine size(L*W*Hmm)
BMB20 2T 14 7.7 14.3 R22/R404A 6.43 20/30/50kg 4150*1650*2480
BMB30 3T 21.5 11 21.4 R22/R404A 9.74 20/30/50kg 5000*1800*2480
BMB50 5T 35.9 18 35.6 R22/R404A 16.2 20/30/50kg 5700*2200*2480
BMB80 8T 56.7 30.7 61.4 R22/R404A 27 20/30/50kg 6300*2200*2480
BMB100 10T 77.3 37.5 75 R22/R404A 33.7 20/30/50kg 6450*2360*2530
BMB120 12T 85 41.35 82.7 R22/R404A 37.3 20/30/50kg 7100*2350*2690
BMB150 15T 106.8 59.3 116.6 R22/R404A 49.3 20/30/50kg 8670*2750*2690
BMB200 20T 147 85.8 170.6 R22/R404A 75.1 20/30/50kg 8960*3250*2690
BMB250 25T 210 92.4 184.8 R22/R404A 83.2 20/30/50kg 11400*3250*2690
BMB300 30T 230.8 107 214 R22/R404A 92 20/30/50kg 12950*3250*2690



Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 2



Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 3



Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 4



Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 5



Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 6

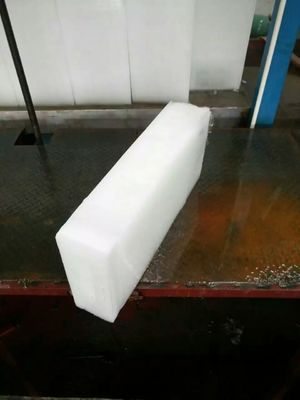

Shape Of Ice

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 7

Company profile

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 8

Customers visit

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 9

Certificate

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 10

Product application

Small Direct Cooling Block Ice Machine 5t 380V Air Water Cooling 11
