Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling

Product Details

Place of Origin: Shanghai, China

Brand Name: ICEMA

Certification: ce/iso

Model Number: BMB-25T

Payment & Shipping Terms

Minimum Order Quantity: 1SET

Price: $9,000.00/sets 1-1 sets

Packaging Details: wooden case or plywood box or container or as per requests

Delivery Time: 20DAYS

Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability: 2 Unit/Units per Month 5 ton boat water maker

Get Best Price
Highlight:

25 Ton industrial ice block making machine ICEMA

,

Automatic industrial ice block making machine ICEMA

,

Direct Cooling industrial ice block maker ICEMA

Certificate:
CE/ISO/CCC
Compressor Brand:
Bitzer/Copeland
Condenser:
Shell And Tube
Controller:
PLC
Cooling Method:
Direct Cooling
Daily Capacity:
1~100 Tons
Evaporator:
Stainless Steel Tube
Ice Making Time:
2~3 Hours
Ice Shape:
Block
Ice Size:
Customized
Certificate:
CE/ISO/CCC
Compressor Brand:
Bitzer/Copeland
Condenser:
Shell And Tube
Controller:
PLC
Cooling Method:
Direct Cooling
Daily Capacity:
1~100 Tons
Evaporator:
Stainless Steel Tube
Ice Making Time:
2~3 Hours
Ice Shape:
Block
Ice Size:
Customized
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling
Automatic 25 Ton Ice Block Making Machine Industrial Direct Cooling Block Ice Machine For Ice Plant

Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice weight(kg/pc) machine size(L*W*Hmm)
BMB20 2T 14 7.7 14.3 R22/R404A 6.43 20/30/50kg 4150*1650*2480
BMB30 3T 21.5 11 21.4 R22/R404A 9.74 20/30/50kg 5000*1800*2480
BMB50 5T 35.9 18 35.6 R22/R404A 16.2 20/30/50kg 5700*2200*2480
BMB80 8T 56.7 30.7 61.4 R22/R404A 27 20/30/50kg 6300*2200*2480
BMB100 10T 77.3 37.5 75 R22/R404A 33.7 20/30/50kg 6450*2360*2530
BMB120 12T 85 41.35 82.7 R22/R404A 37.3 20/30/50kg 7100*2350*2690
BMB150 15T 106.8 59.3 116.6 R22/R404A 49.3 20/30/50kg 8670*2750*2690
BMB200 20T 147 85.8 170.6 R22/R404A 75.1 20/30/50kg 8960*3250*2690
BMB250 25T 210 92.4 184.8 R22/R404A 83.2 20/30/50kg 11400*3250*2690
BMB300 30T 230.8 107 214 R22/R404A 92 20/30/50kg 12950*3250*2690
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 0

PRODUCT DESCRIPTION
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 1

Model:BMB250
Ice Production:25000kg/24h
Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Net Weight:2860kg
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months



Features
1, one-time icing, saving labor and time;
2. Fully automatic ice making, ice melting and deicing process, high efficiency;
3. Modular design, convenient on-site installation, and convenient later movement;
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 2
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 3
Ice Details




Feature

1.High density, high strength, not easy to melt
2.Can be made into colorful ice
3.Available in a variety of sizes
4.Clean, hygienic and free of impurities
5.Low temperature

Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 4
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 5
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 6
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 7
Product Accessories
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 8
Bitzer /Refcomp/Frascold Compressor
1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;
2.the brand effect is good, the quality is more guaranteed;
3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.
Reliable Condenser
1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;
2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 9
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 10


SUS304 Evaporator
1.Use stainless steel material for good grade
2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency


PLC+ Touch screen
1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
4.More status indications to facilitate machine
maintenance
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 11
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 12
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 13
Fully equipped with Schneider Switches
1. The panel of the socket is exquisite, flat and beautiful, simple and elegant
2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness
3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 14
Cooling Tower
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 15
Cooling Pump
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 16
Pressure controller
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 17

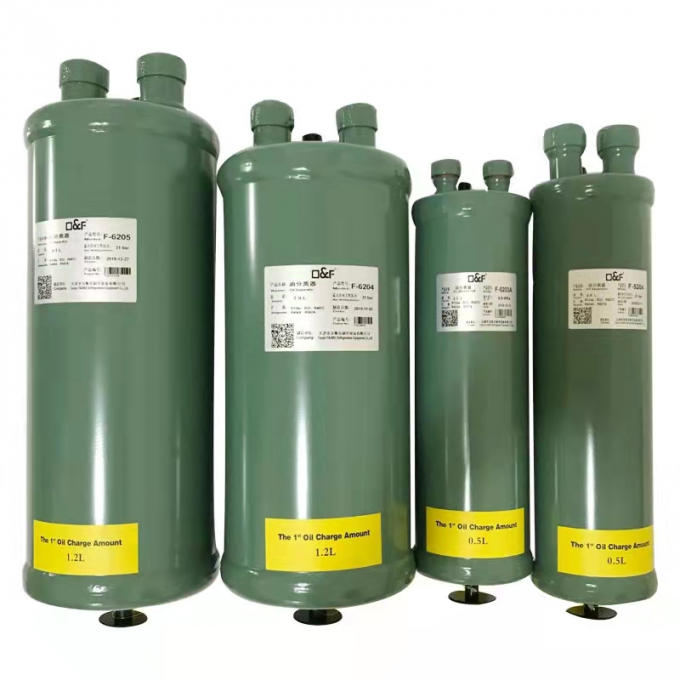

Oil Separator
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 18
Solenoid valve
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 19
Dry Filter
Product Technical Map
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 20

Application Field




1.Port, wharf ice factory
2.Aquatic product preservation and cooling
3.Long-distance transportation, aquatic food preservation
4.Cooling and eating in special fields
5.Ice sculpture viewing
6.Edible ice fields, etc.
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 21
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 22
OUR COMPANY
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 23
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 24
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 25
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 26

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Automatic 25 Ton Industrial Ice Block Making Machine Direct Cooling 27
Certification
Customer Feedback
FAQ
Q1-What is the lifespan of the machine?




R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment
without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.




Q2-What is your payment method?




R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at
the Alibaba background. We have several payment methods, which one do you think is more suitable for you?




Q3-Which brands of compressors do you use?




R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.




Q4-What type of refrigerant are you using?




R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has
special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)




Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?




R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you
only need to connect water and electricity to use.
