5T/24H Industrial Ice Cube Machine Stainless Steel 304

Product Details

Place of Origin: China

Brand Name: ICEMA

Certification: CE, ISO

Model Number: BMC50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD 17500~19500 / set

Packaging Details: Wooden box

Delivery Time: 15 working day

Payment Terms: Western Union, MoneyGram, T/T, D/P, D/A, L/C

Supply Ability: 100 sets per months

Get Best Price
Highlight:

5T/24H Industrial Ice Cube Machine ICEMA

,

Industrial Ice Cube Machine ICEMA

,

220V industrial ice cube making machine ICEMA

Material:
304 SUS
Warranty:
18 Months
Rated Output:
5000kg
Cooling Way:
Air/water Cooling
Compressor:
Bitzer/ Copeland/ Refcomp/ Frascold
Vooltage:
220V/380V
Power:
27.75KW
Rated Current:
52A
Ice Size:
22*22*22mm Support Customization
Dimension:
3560*1660*2100mm
Material:
304 SUS
Warranty:
18 Months
Rated Output:
5000kg
Cooling Way:
Air/water Cooling
Compressor:
Bitzer/ Copeland/ Refcomp/ Frascold
Vooltage:
220V/380V
Power:
27.75KW
Rated Current:
52A
Ice Size:
22*22*22mm Support Customization
Dimension:
3560*1660*2100mm

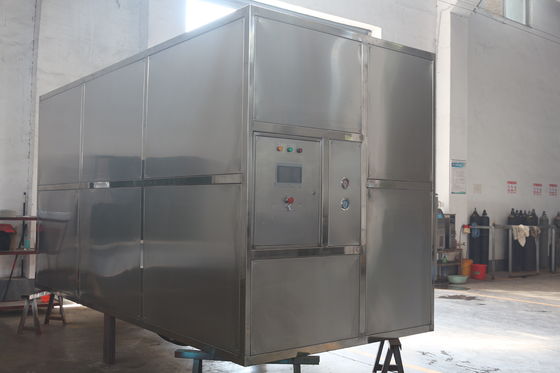

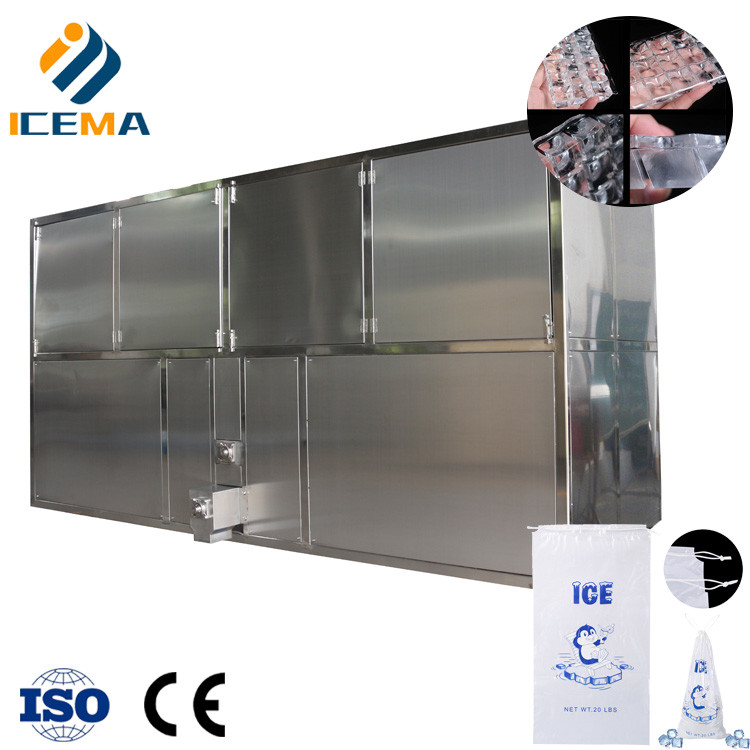

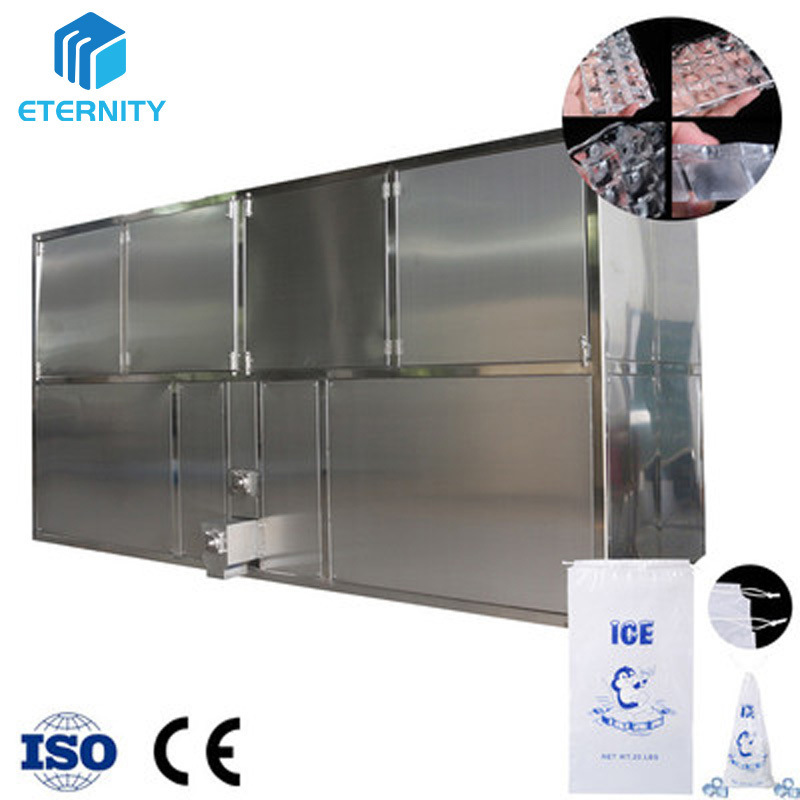

5T/24H Industrial Ice Cube Machine Stainless Steel 304
Industrial Ice Cube Making Machine Output 5T/24HStainless Steel For Ice Factory Hotel


Cube ice machine is also called square ice machine, ice is glittering and translucent, elegant appearance, automatic control, users only need to connect water and electricity ,then it will work immediately , high efficiency, energy saving, clean and health. Cube ice has good melting resistance; it can be used in modulating drinks, ice beverage, decoration and food fresh keeping and preservation and so on. It is widely used in hotel, restaurant, hotel, bar, banquet hall, restaurants,convenience stores and the cold drink ship that need the ice.



Machine Parameter



Model output
(kg)
voltage power (w) refrigerant ice size(L*W*Hmm) machine size(L*W*Hmm)
BMC-2T 2000 380v/3P/50/Hz 8.73kw R404A/R22 22*22*22 1500x1430x2070
BMC-3T 3000 380v/3P/50/Hz 15.45kw R404A/R22 22*22*22 1800x1430x2070
BMC-4T 4000 380v/3P/50/Hz 22.95kw R404A/R22 22*22*22 2100x1430x2070
BMC-5T 5000 380v/3P/50/Hz 27.75kw R404A/R22 22*22*22 2400x1430x2070




5T/24H Industrial Ice Cube Machine Stainless Steel 304 0

5T/24H Industrial Ice Cube Machine Stainless Steel 304 15T/24H Industrial Ice Cube Machine Stainless Steel 304 25T/24H Industrial Ice Cube Machine Stainless Steel 304 3

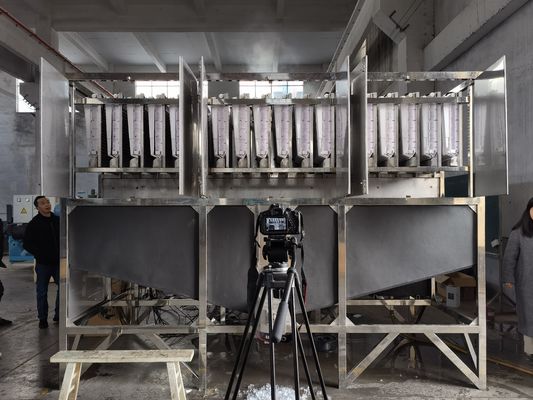

Ice Making Display

5T/24H Industrial Ice Cube Machine Stainless Steel 304 4

5T/24H Industrial Ice Cube Machine Stainless Steel 304 5

Advantages of cube ice:

1. A variety of ice cube sizes are available to meet the different needs of users.

2. Cube ice shape rules, crystal clear, beautiful appearance.

3. The raw materials used in ice makers are food grade, safe and hygienic, so the ice can be eaten straight away.

4. Suitable for restaurants, fast food restaurants, cafes, hotels, supermarkets and other occasions.



Main Configuration

Compressor:

A variety of famous brands and models of compressors are available

1. Bitzer--Germany
2. Frascold--Italy
3. Refcomp--Italy
4. Copeland--America

5T/24H Industrial Ice Cube Machine Stainless Steel 304 6

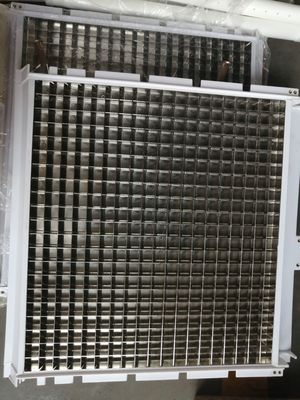

Evaporator:

1. Red copper plated ice plate, up to food standards.

2. Every ice tray with 19*20 grids.

3. The quantity of ice tray of ice cube is different with different output.

2T--6 trays, 3T--10 trays, 4T--14 trays, 5T--18 trays

5T/24H Industrial Ice Cube Machine Stainless Steel 304 7

Condenser:

Due to the different condensing methods, air-cooled condensers and water-cooled condensers are used respectively.

5T/24H Industrial Ice Cube Machine Stainless Steel 304 8

Expansion Valve:

1. All valve parts of the machine use danfoss brand.

2. Quality assurance, longer service life

5T/24H Industrial Ice Cube Machine Stainless Steel 304 9

Control System:

Use the remote control system 1. Add fault alarm function, monitor machine running state at any time 2. No need for 24 hours on duty, save manpower 3. The machine can be controlled remotely by mobile phone or computer, which is more convenient to use

5T/24H Industrial Ice Cube Machine Stainless Steel 304 10

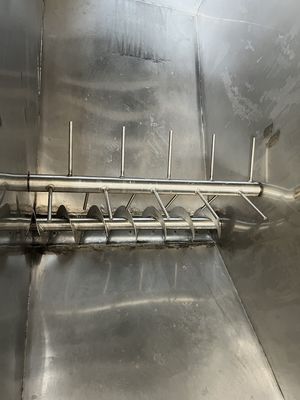

Delivery Ice System:

1. Stainless steel ice bin and stainless steel screw

2. Automatic ice feeding, reduce manual contact, ensure ice clean, save labor
5T/24H Industrial Ice Cube Machine Stainless Steel 304 11



Why Choose Us

● Safety: the industrial ice machine uses SUS304 stainless steel as the main raw material, with special water flow design, and automatic cleaning function, to ensure that the production of ice clean health, edible.

● Full output: used in high temperature environment in summer, the output can reach 100%. When used in low temperature environment in winter, the yield can reach 100%~150%
● Stable performance: ice crystal hard, crystal clear, soluble, can be long-term storage.
● The whole processing is automatically and it can reduce your cost in worker.
● Ice dropping and outgoing automatically, reduce the possibility of contact by human, which can guaranty the ice clean and sanitary.
● Provide 18 months extra long warranty period. The seller offers free technical guidance.



Application Industry

5T/24H Industrial Ice Cube Machine Stainless Steel 304 12



Company Profile

Jiangsu ICEMA refrigeration technology co., LTD. Is a technology-based enterprise that pay attention to user experience. According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh, cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china, and also be exported to Southeast Asia, Africa,Middle East,South America ,Europe and other countries.



Company Certificate
5T/24H Industrial Ice Cube Machine Stainless Steel 304 13



Other Products

5T/24H Industrial Ice Cube Machine Stainless Steel 304 14



Customer Visit

5T/24H Industrial Ice Cube Machine Stainless Steel 304 15



Customer Praise





Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.



According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.



We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.



FAQ

1. Can I customize the machine?

You can choose output, material, accessories brand, etc.


2 . How can I trust your company?

We have more than ten years' experience in exporting. Our customers are in many countries and cities around the world. We delivered the goods to our customers safely and on time every time. You can confirm your order on our Alibaba.com or Made in China website, and they will also provide guarantee for your order.


3. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

4. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.



5. The address of the company?
Our company is located in Changzhou, Jiangsu Province, but we also have an international affairs office in Shanghai. If you want to visit our company, you can take a plane to Shanghai, and then our company will take care of all your travel.
