Home > products > Brine Refrigeration Block Ice Machine > 5T Brind Machine Shape Refrigerator Ice Block Moulding Machine

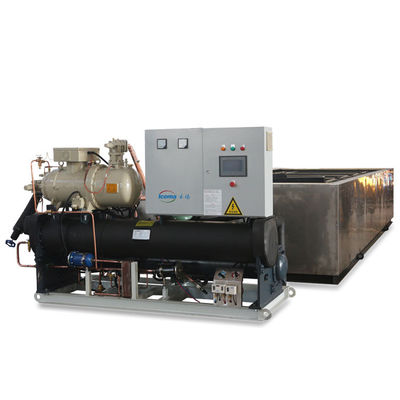

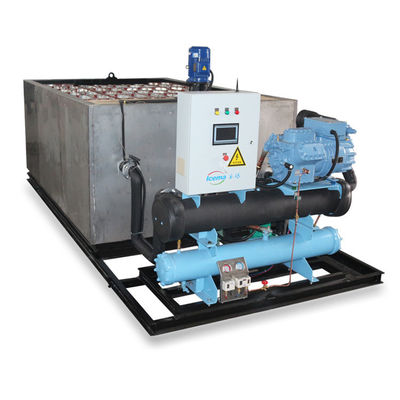

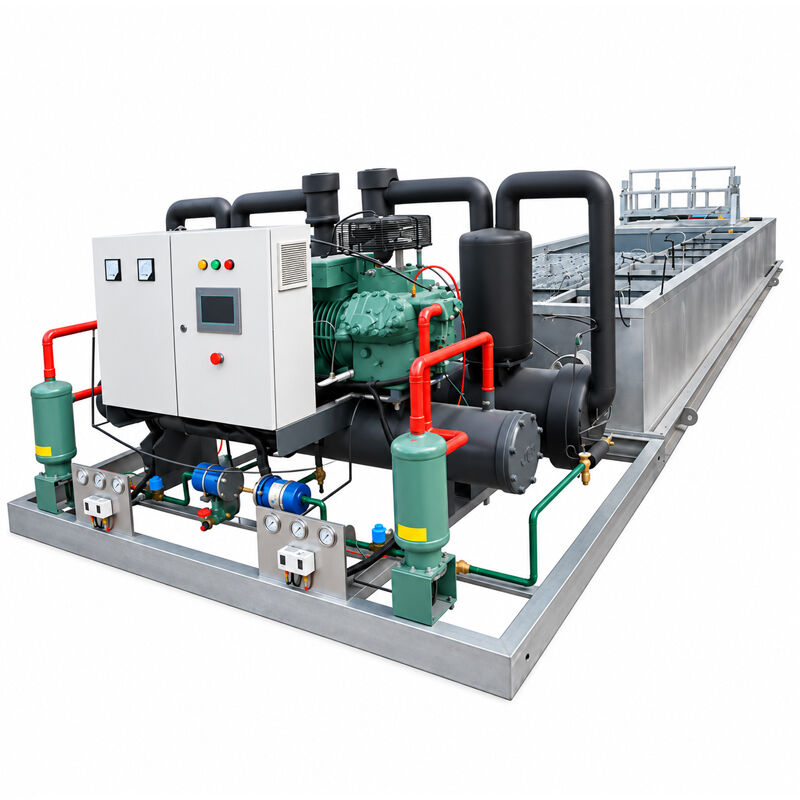

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: Bingma

Certification: ce

Model Number: BMSB50

Payment & Shipping Terms

Minimum Order Quantity: 1 SET

Price: $1.00 - $5.00/sets

Packaging Details: wooden case or plywood box or container or as per requests

Payment Terms: D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability: 2 Unit/Units per Month block of ice for refrigerato

Get Best Price
Highlight:

ICEMA 5T ice block moulding machine

,

ICEMA 380V ice block moulding machine

,

ICEMA 5000kg ice block machine

Rated Output:
5T/24H
Cooling Capacity:
38.5KW
Ice Temp:
-8℃
Input Power:
44.6KW
Rated Current:
88.8A
Compressor:
Piston Compressor
Compressor Power:
17.43KW
Condensation Method:
Ari/Water Cooling
The Refrigerant:
R404A/R507A
Machine Size:
8200*2900*3500mm
Rated Output:
5T/24H
Cooling Capacity:
38.5KW
Ice Temp:
-8℃
Input Power:
44.6KW
Rated Current:
88.8A
Compressor:
Piston Compressor
Compressor Power:
17.43KW
Condensation Method:
Ari/Water Cooling
The Refrigerant:
R404A/R507A
Machine Size:
8200*2900*3500mm
5T Brind Machine Shape Refrigerator Ice Block Moulding Machine

5T Brind Machine Shape Refrigerator Moulding Making Plant Brine Block Ice

Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice weight(kg/pc) machine size(L*W*Hmm)
BMB20 2T 14 7.7 14.3 R22/R404A 6.43 20/30/50kg 4150*1650*2480
BMB30 3T 21.5 11 21.4 R22/R404A 9.74 20/30/50kg 5000*1800*2480
BMB50 5T 35.9 18 35.6 R22/R404A 16.2 20/30/50kg 5700*2200*2480
BMB80 8T 56.7 30.7 61.4 R22/R404A 27 20/30/50kg 6300*2200*2480
BMB100 10T 77.3 37.5 75 R22/R404A 33.7 20/30/50kg 6450*2360*2530
BMB120 12T 85 41.35 82.7 R22/R404A 37.3 20/30/50kg 7100*2350*2690
BMB150 15T 106.8 59.3 116.6 R22/R404A 49.3 20/30/50kg 8670*2750*2690
BMB200 20T 147 85.8 170.6 R22/R404A 75.1 20/30/50kg 8960*3250*2690
BMB250 25T 210 92.4 184.8 R22/R404A 83.2 20/30/50kg 11400*3250*2690
BMB300 30T 230.8 107 214 R22/R404A 92 20/30/50kg 12950*3250*2690



5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 0

Product Description

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 1 5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 25T Brind Machine Shape Refrigerator Ice Block Moulding Machine 35T Brind Machine Shape Refrigerator Ice Block Moulding Machine 45T Brind Machine Shape Refrigerator Ice Block Moulding Machine 55T Brind Machine Shape Refrigerator Ice Block Moulding Machine 6

Model Production/T Refrigerating Capacity/Kw  Input Power/Kw Rated Current/A Temperature Compressor power/Kw Refrigerant Condensation way Size
BMSB50 5 43 26.5 47.7 -8 21.5 R22/R404A Water cooling 2100*1200*1200
BMSB100 10 84 49 88 -8 41.5 R22/R404A Water cooling 2600*13500*1400
BMSB150 15 115 70.5 127 -8 60 R22/R404A Water cooling 2800*1550*1440
BMSB200 20 147 83 149.5 -8 72 R22/R404A

Water /Evaporative cooling

3100*1680*1560
BMSB300 30 217 118 212 -8 98 R22/R404A

Water /Evaporative cooling

3600*1800*2000
BMSB500 50 306 188.6 316 -8 124 R22/R404A

Water /Evaporative cooling

4700*1720*1800
BMSB800 80 470 284.2 478 -8 150 R22/R404A

Water /Evaporative cooling

4900*1850*1900
BMSB1000 100 528 319.6 538 -8 176 R22/R404A

Water /Evaporative cooling

4900*1850*1900

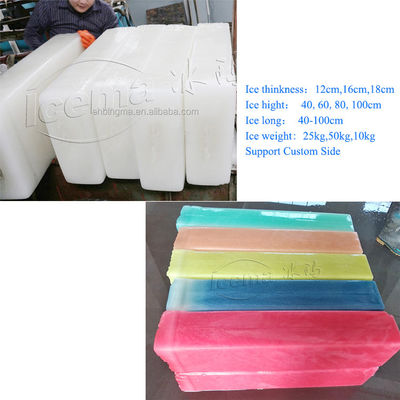

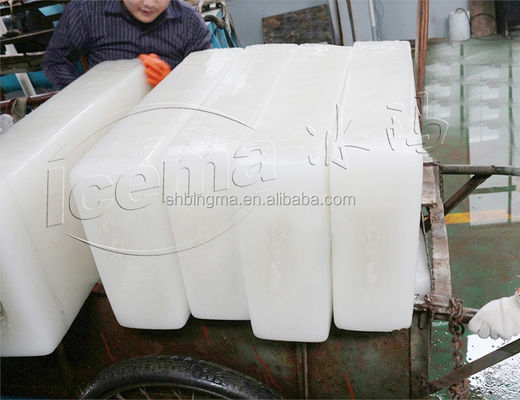

Shape Of Ice

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 7

Product application

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 8

Company profile

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 9

Certificate

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 10

Customers visit

5T Brind Machine Shape Refrigerator Ice Block Moulding Machine 11

Contact us



Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.

According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc.

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.



Q1-What is the lifespan of the machine?

A1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.

Q2-What is your payment method?

A2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?

Q3-Which brands of compressors do you use?

A3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.

Q4-What type of refrigerant are you using?

A4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)

Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?

A5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
