Product Details
Place of Origin: Jiangsu, China
Brand Name: ICEMA
Certification: ce
Model Number: BMSB100
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: $5,000.00/sets 1-1 sets
Packaging Details: wooden case or plywood box or container or as per requests
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 10 Unit/Units per Month
Rated Output: |
10T/24H |
Cooling Capacity: |
77.3KW |
Ice Temp: |
-8℃ |
Input Power: |
44.6KW |
Rated Current: |
88.8A |
Compressor: |
Screw/piston Compressor |
Compressor Power: |
36.7KW |
Condensation Method: |
Ari/Water/Evaporative Cooling |
The Refrigerant: |
R404A/R507A |
Machine Size: |
9400*29020*3500mm |
Rated Output: |
10T/24H |
Cooling Capacity: |
77.3KW |
Ice Temp: |
-8℃ |
Input Power: |
44.6KW |
Rated Current: |
88.8A |
Compressor: |
Screw/piston Compressor |
Compressor Power: |
36.7KW |
Condensation Method: |
Ari/Water/Evaporative Cooling |
The Refrigerant: |
R404A/R507A |
Machine Size: |
9400*29020*3500mm |
| Model | output (kg) |
Cooling (kw) |
input (kw) | Rated current (A) | refrigerant | compressor power(kw) | ice weight(kg/pc) | machine size(L*W*Hmm) |
| BMB20 | 2T | 14 | 7.7 | 14.3 | R22/R404A | 6.43 | 20/30/50kg | 4150*1650*2480 |
| BMB30 | 3T | 21.5 | 11 | 21.4 | R22/R404A | 9.74 | 20/30/50kg | 5000*1800*2480 |
| BMB50 | 5T | 35.9 | 18 | 35.6 | R22/R404A | 16.2 | 20/30/50kg | 5700*2200*2480 |
| BMB80 | 8T | 56.7 | 30.7 | 61.4 | R22/R404A | 27 | 20/30/50kg | 6300*2200*2480 |
| BMB100 | 10T | 77.3 | 37.5 | 75 | R22/R404A | 33.7 | 20/30/50kg | 6450*2360*2530 |
| BMB120 | 12T | 85 | 41.35 | 82.7 | R22/R404A | 37.3 | 20/30/50kg | 7100*2350*2690 |
| BMB150 | 15T | 106.8 | 59.3 | 116.6 | R22/R404A | 49.3 | 20/30/50kg | 8670*2750*2690 |
| BMB200 | 20T | 147 | 85.8 | 170.6 | R22/R404A | 75.1 | 20/30/50kg | 8960*3250*2690 |
| BMB250 | 25T | 210 | 92.4 | 184.8 | R22/R404A | 83.2 | 20/30/50kg | 11400*3250*2690 |
| BMB300 | 30T | 230.8 | 107 | 214 | R22/R404A | 92 | 20/30/50kg | 12950*3250*2690 |
1.1 Food processing
1.2 Fisheries industry
1.3 Chilled fresh-keeping
1.4 Commercial supermarket logistics
1.5 Edible ice
1.6 Concrete cooling
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
|
Model
|
Production/T
|
Input power
|
Current
|
Refrigerant
|
Cooling way
|
Ice storage
|
Material
|
|
BMSB50
|
5
|
26.5
|
47.7
|
R22/R404A
|
water cooling
|
Avaliable
|
Carbon steel
|
|
BMSB100
|
10
|
49
|
88
|
R22/R404A
|
water cooling
|
Avaliable
|
Carbon steel
|
|
BMSB150
|
15
|
70.5
|
127
|
R22/R404A
|
water cooling
|
Avaliable
|
Carbon steel
|
|
BMSB200
|
20
|
83
|
149.5
|
R22/R404A
|
water/evaporation
|
Avaliable
|
Carbon steel
|
|
BMSB300
|
30
|
118
|
212
|
R22/R404A
|
water/evaporation
|
Avaliable
|
Carbon steel
|
|
BMSB500
|
50
|
188.6
|
316
|
R22/R404A
|
water/evaporation
|
Avaliable
|
Carbon steel
|
|
BMSB800
|
80
|
274.2
|
478
|
R22/R404A
|
water/evaporation
|
Avaliable
|
Carbon steel
|
|
BMSB1000
|
100
|
319.6
|
538
|
R22/R404A
|
water/evaporation
|
Avaliable
|
Carbon steel
|
1.Integrated Cooling System
2.Specially designed evaporator
3.Ice clean and sanitary, meet the food standards
4.Refrigerant in line with national and international standards, can be used worldwide
5.Dry expansion evaporator reduce the use of refrigerant and installation failures, make the device compact and operation safe
6.Microcomputer full intelligent control. Water-supplying, Ice-making, Ice-falling Fault protection by self-fulfillment
7.Shortest time on construction site installation and commission, low the cost and risk of user’s
8.Mobile flexible, can be transported by truck and ship
9.Daily output: 0.5Ton~10Ton Each block ice weight: 5kg 10kg 12.5kg 15kg 20kg 25kg
10. High Container with ISO certificatio
Name: Semi-hermetic recip. compressor
Brand: Germany Bitzer
Original: Germany
Shanghai ICEMA refrigeration equipment co.,ltd (Hereinafter referred to as Shanghai ICEMA) produce direct evaporative block ice machines and brine block ice machines to meet your different requirements. Of course, two types block ice machines also can be made into containerized ice machines.
1.Direct evaporative block ice machine
Direct evaporative block ice machine also called direct cooling/refrigeration block ice machine and Aluminum-alloy direct evaporation block ice machine.
The direct evaporative block ice machine adopts the integrated system,using the highly effectively heat conducting food grade aluminum plates, which has become a popular tendency in the international refrigerating revolution.
The thermal conductivity of aluminum is 3.2 times that of steel, weighing only 1/3 of the steel, and rust-free.
There is no intermediate heat transfer media of ice directly formed by evaporation. It avoids the energy loss caused by the heat transfer of the secondary refrigerant. And this will bring you an unprecedented efficiency.
Ice has the feature of sanitary and conforms to food standards.

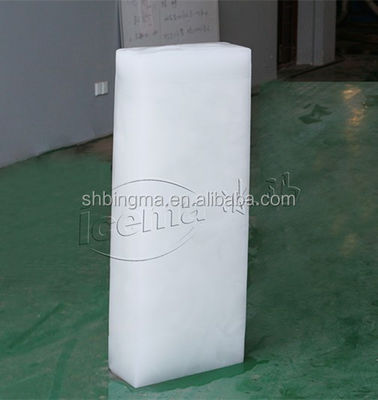

Ice weight: 5 kg, 10 kg, 15 kg, 20 kg, 25 kg.
Convenient for long-distance transport, easy storage and processing.
Large unit can be made into a container and ice can be made as long as users connect the power and water.
2.Brine block ice machine
Brine block ice machine also calls indirect cooling block ice machine or Salt type block ice machine or Brine refrigeration block ice machine. It main parts includes as belows
2.1 Necessary Section:

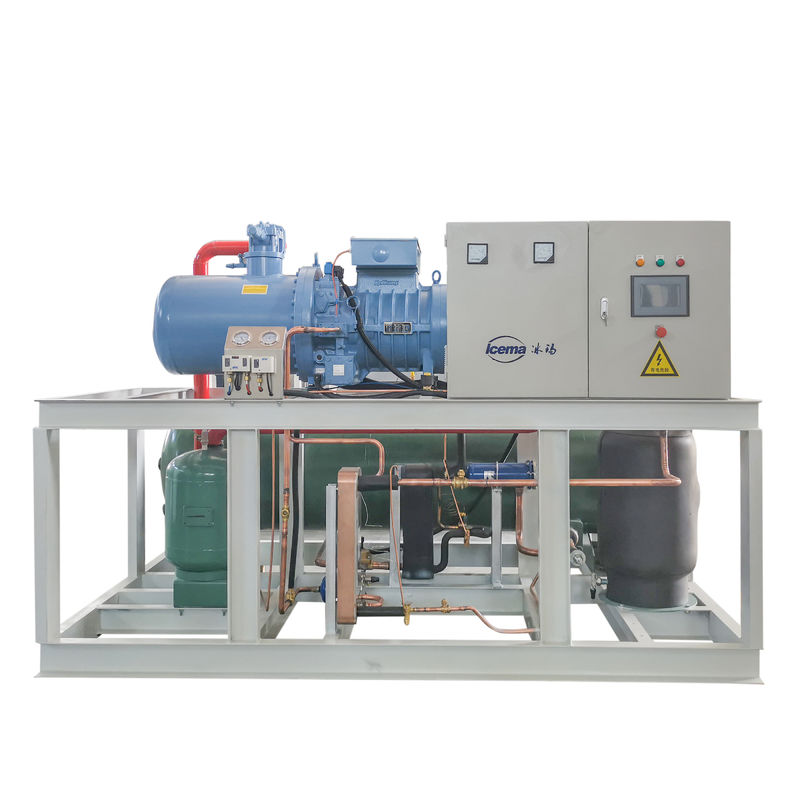

Refrigeration Unit
Electric control box
Brine tank
Evaporative coils
Ice cans
Agitator
2.2 Optional Section:
Ice thawing tank
Ice dumping shelf
Water feeder system
Ice guide rail
Ice crane
