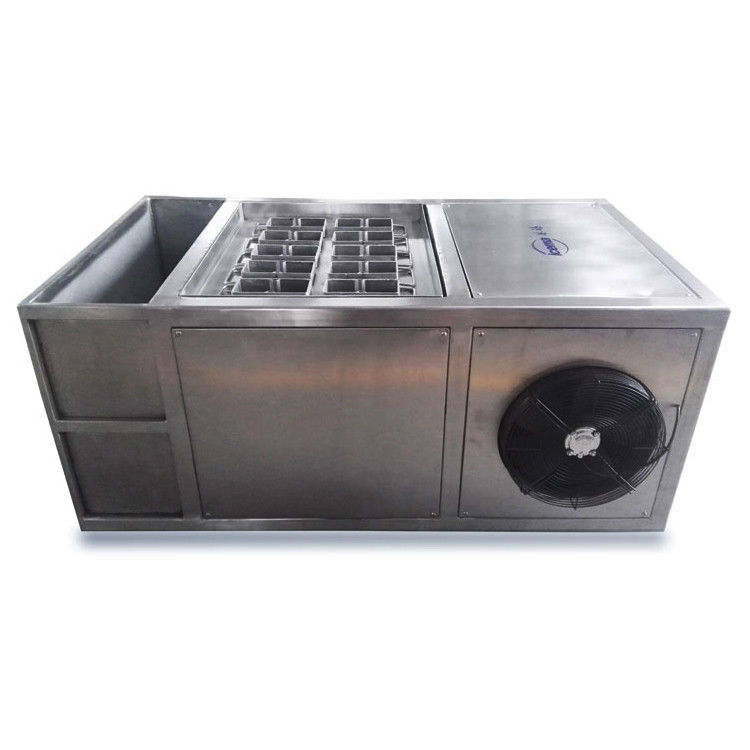

Large capacity ice block making machine with 2T ice block machine maker

Name: Large capacity ice block making machine with 2T ice block machine maker
Brand: ICEMA
SKU: ICEMA
Price: 10 USD
Availability: InStock
Rating: 5 (172 reviews)

Brand Name:	ICEMA
Price:	$10,000.00/sets 1-2 sets
Supply Ability:	3 Set/Sets per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Applicable Industries:

Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food & Beverage Shops, Other

Condition:

New

Ice Shape:

ICE BLOCK

Voltage:

220V

Power:

14KW

Dimension(L*W*H):

4150*1650*2480

Weight:

2000 KG

Warranty:

1.5 Years

Key Selling Points:

Automatic

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1.5 Years

Core Components:

Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC

Compressor Brand:

Frascold, Bitzer, Copeland

Application:

Industrial

Model:

BMSB20

Output:

Refrigerate Capacity:

14KW

Total Power:

7.7KW

Rated Current:

14.3A

Ice Temperature:

-8℃

Compressor Power:

6.43KW

Refrigerant:

R22/R404A

Cooling Way:

Air Cooling/ Water Cooling

Unit Size:

4150*1650*2480

Marketing Type:

Ordinary Product

Port:

Shanghai

Packaging Details:

wooden case

Supply Ability:

3 Set/Sets per Month

Product Description

Large capacity ice block making machine with 2T ice block machine maker 0

Large capacity ice block making machine with 2T ice block machine maker 1

Products Description

Large capacity ice block making machine with 2T ice block machine maker 2

BRINE BLOCK ICE MACHINE DESCRIPTION

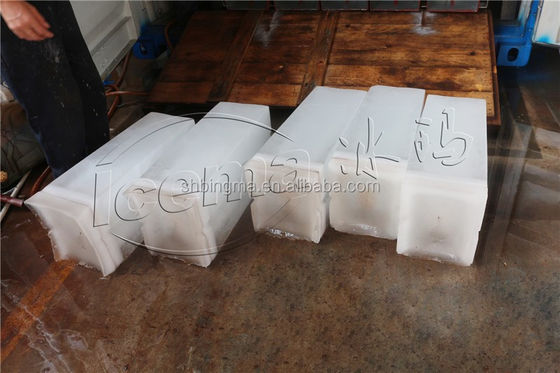

Block ice, called ice block by people habitually. Block ice is easy to save, convenient to transportation, convenient to measurement, melting time is long, and many other advantages, so it is widely used in the production and living of people.
Brine refrigeration block ice machine is used for traditional way of seawater tank of ice, the configuration of modern automation control, greatly improving the efficiency of making ice and reduce the labor intensity of the workers.

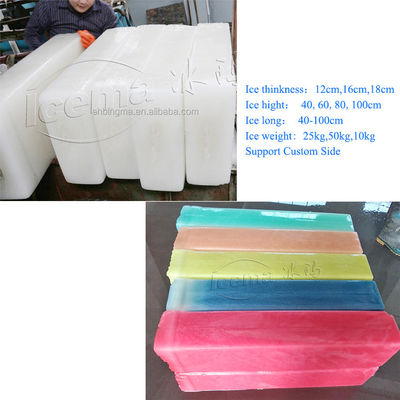

Customers can order the block ice machine according to the different occasions of ice using, different size and weight of ice and different ice frozen time, the customer can see the table below as the reference.

Large capacity ice block making machine with 2T ice block machine maker 3

FUTURES

1. The traditional craft of brine heat ice;
ice machine running stable, low failure rate;
2. According to customer requirements, design
suitable block ice machine for the customer request;

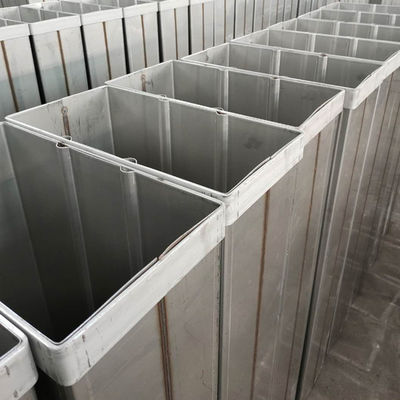

3. The ice mold can be made of galvanized
sheet or stainless steel;
4. The machine process of ice is the full
automatic control; don't need a professional people with certificates;
5. Ice size can be customization.

Large capacity ice block making machine with 2T ice block machine maker 4

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMSB10	1T	8.6KW	4.6KW	9.2A	4.15KW	R22/R404A	Air/ Water	420016001500
BMSB20	2T	15.7KW	8.3KW	16.6A	7.3KW	R22/R404A	Air/ Water	500016001500
BMSB30	3T	21.5KW	11.8KW	23.6A	10KW	R22/R404A	Air/ Water	560019001600
BMSB50	5T	38.5KW	21.56KW	43.5A	17.43KW	R22/R404A	Water/ Evaporative	640026001600
BMSB 100	10T	77.3KW	44.6KW	88.8A	36.7KW	R22/R404A	Water/ Evaporative	760026001750
BMSB 150	15T	115KW	62.7KW	125A	53.3KW	R22/R404A	Water/ Evaporative	960026001750
BMSB 200	20T	121.4KW	90.5KW	181A	75KW	R22/R404A	Water/ Evaporative	1040030001800
BMSB 250	25T	194KW	97KW	194A	85.5KW	R22/R404A	Water/ Evaporative	920041001800
BMSB 300	30T	234.8KW	125KW	250A	103KW	R22/R404A	Water/ Evaporative	10300 45001800
BMSB 400	40T	308KW	147KW	294A	121.5KW	R22/R404A	Water/ Evaporative	12300 45001800
BMSB 500	50T	368KW	185.6KW	378A	150KW	R22/R404A	Water/ Evaporative	1230054001800
BMSB 600	60T	455.8KW	215KW	428A	181.5KW	R22/R404A	Water/ Evaporative	13800 54001800

Large capacity ice block making machine with 2T ice block machine maker 5

Large capacity ice block making machine with 2T ice block machine maker 6

Products catalogues

Company Profile

Large capacity ice block making machine with 2T ice block machine maker 7

Large capacity ice block making machine with 2T ice block machine maker 8

Large capacity ice block making machine with 2T ice block machine maker 9

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

Large capacity ice block making machine with 2T ice block machine maker 10

Large capacity ice block making machine with 2T ice block machine maker 11

Large capacity ice block making machine with 2T ice block machine maker 12

Large capacity ice block making machine with 2T ice block machine maker 13

FAQ

1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
5 ton ice block machine ice block make machine price block machine ice block maker machine price brine block ice block ice
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
machine block ice make manufacture ice block making machine industrial ice block ice block machine maker ice block machine
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
commercial ice block machine for sale philippines cheap salt water block ice machines for sale block ice machine brine

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5 tons commercial brine ice block making machine 10 tons direct cooling block ice plant multifunction hot sell block ice plant container
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
high quality automatic block block piece ice machine containerized commercial ice block machine fresh water block ice machine
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
