3T 5T 10T Brine Refrigeration Block Ice Machine 12.37kw

Name: 3T 5T 10T Brine Refrigeration Block Ice Machine 12.37kw
Brand: ICEMA
SKU: BMSB30
Price: 15 USD
Availability: InStock
Rating: 4.6 (118 reviews)

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Certification: CE

Model Number: BMSB30

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $15,500.00/sets 1-2 sets

Packaging Details: wooden case

Delivery Time: 20 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 2 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                ICEMA 10T Brine Refrigeration Block Ice Machine, ICEMA 5T Brine Refrigeration Block Ice Machine, ICEMA 12.37kw ice block maker


Rated Output:	3T/24H	Cooling Capacity:	21.5KW
Ice Temp:	-8℃	Input Power:	12.37KW
Rated Current:	24.3A	Compressor:	Piston Compressor
Compressor Power:	9.47KW	Condensation Method:	Ari/Water Colling
The Refrigerant:	R404A/R507A	Machine Size:	740021003500mm

Rated Output:	3T/24H
Cooling Capacity:	21.5KW
Ice Temp:	-8℃
Input Power:	12.37KW
Rated Current:	24.3A
Compressor:	Piston Compressor
Compressor Power:	9.47KW
Condensation Method:	Ari/Water Colling
The Refrigerant:	R404A/R507A
Machine Size:	740021003500mm

3T 5T 10T Brine Refrigeration Block Ice Machine 12.37kw

High Quality 3T 5T 10T block ice making machine ice making machines block ice factory

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice weight(kg/pc)	machine size(LWHmm)
BMB20	2T	14	7.7	14.3	R22/R404A	6.43	20/30/50kg	415016502480
BMB30	3T	21.5	11	21.4	R22/R404A	9.74	20/30/50kg	500018002480
BMB50	5T	35.9	18	35.6	R22/R404A	16.2	20/30/50kg	570022002480
BMB80	8T	56.7	30.7	61.4	R22/R404A	27	20/30/50kg	630022002480
BMB100	10T	77.3	37.5	75	R22/R404A	33.7	20/30/50kg	645023602530
BMB120	12T	85	41.35	82.7	R22/R404A	37.3	20/30/50kg	710023502690
BMB150	15T	106.8	59.3	116.6	R22/R404A	49.3	20/30/50kg	867027502690
BMB200	20T	147	85.8	170.6	R22/R404A	75.1	20/30/50kg	896032502690
BMB250	25T	210	92.4	184.8	R22/R404A	83.2	20/30/50kg	1140032502690
BMB300	30T	230.8	107	214	R22/R404A	92	20/30/50kg	1295032502690

Products Description

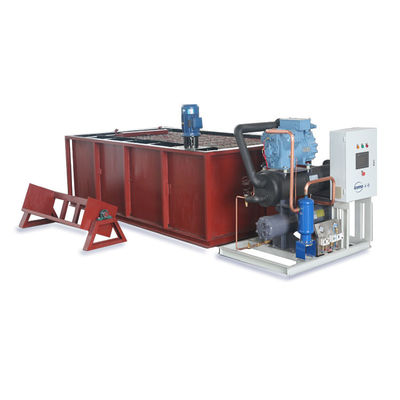

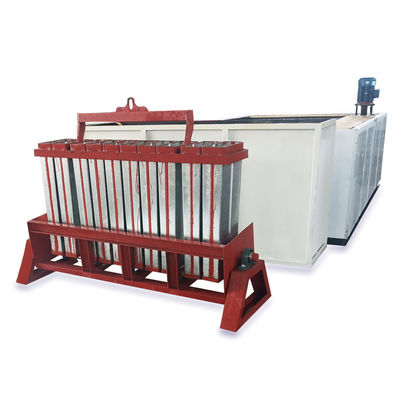

BRINE BLOCK ICE MACHINE DESCRIPTION

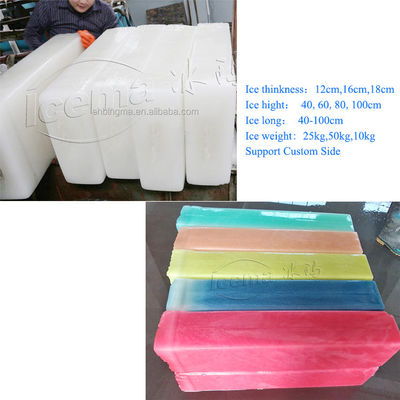

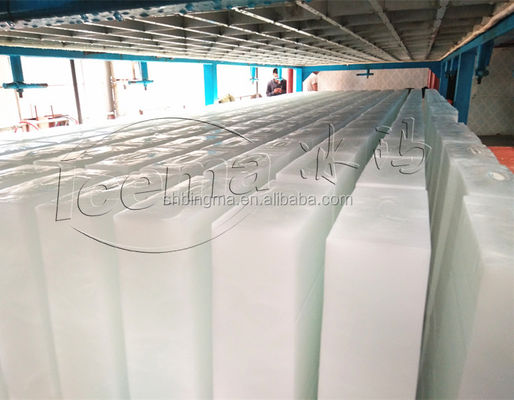

Block ice, called ice block by people habitually. Block ice is easy to save, convenient to transportation, convenient to measurement, melting time is long, and many other advantages, so it is widely used in the production and living of people.
Brine refrigeration block ice machine is used for traditional way of seawater tank of ice, the configuration of modern automation control, greatly improving the efficiency of making ice and reduce the labor intensity of the workers.
Customers can order the block ice machine according to the different occasions of ice using, different size and weight of ice and different ice frozen time, the customer can see the table below as the reference.

FUTURES

1. The traditional craft of brine heat ice;
ice machine running stable, low failure rate;
2. According to customer requirements, design
suitable block ice machine for the customer request;

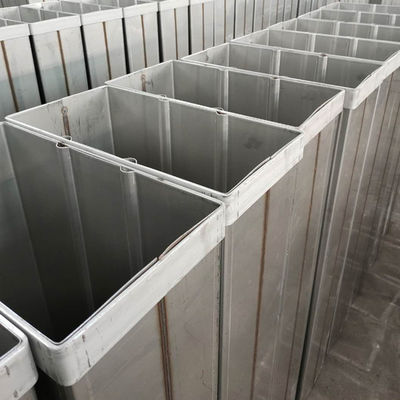

3. The ice mold can be made of galvanized
sheet or stainless steel;
4. The machine process of ice is the full
automatic control; don't need a professional people with certificates;
5. Ice size can be customization.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMSB10	1T	8.6KW	4.6KW	9.2A	4.15KW	R22/R404A	Air/ Water	420016001500
BMSB20	2T	15.7KW	8.3KW	16.6A	7.3KW	R22/R404A	Air/ Water	500016001500
BMSB30	3T	21.5KW	11.8KW	23.6A	10KW	R22/R404A	Air/ Water	560019001600
BMSB50	5T	38.5KW	21.56KW	43.5A	17.43KW	R22/R404A	Water/ Evaporative	640026001600
BMSB 100	10T	77.3KW	44.6KW	88.8A	36.7KW	R22/R404A	Water/ Evaporative	760026001750
BMSB 150	15T	115KW	62.7KW	125A	53.3KW	R22/R404A	Water/ Evaporative	960026001750
BMSB 200	20T	121.4KW	90.5KW	181A	75KW	R22/R404A	Water/ Evaporative	1040030001800
BMSB 250	25T	194KW	97KW	194A	85.5KW	R22/R404A	Water/ Evaporative	920041001800
BMSB 300	30T	234.8KW	125KW	250A	103KW	R22/R404A	Water/ Evaporative	10300 45001800
BMSB 400	40T	308KW	147KW	294A	121.5KW	R22/R404A	Water/ Evaporative	12300 45001800
BMSB 500	50T	368KW	185.6KW	378A	150KW	R22/R404A	Water/ Evaporative	1230054001800
BMSB 600	60T	455.8KW	215KW	428A	181.5KW	R22/R404A	Water/ Evaporative	13800 54001800

Products catalogues

Company Profile

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

FAQ

1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.
5 ton ice block machine ice block make machine price block machine ice block maker machine price brine block ice block ice
2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.
machine block ice make manufacture ice block making machine industrial ice block ice block machine maker ice block machine
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
commercial ice block machine for sale philippines cheap salt water block ice machines for sale block ice machine brine

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
5 tons commercial brine ice block making machine 10 tons direct cooling block ice plant multifunction hot sell block ice plant container
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.
high quality automatic block block piece ice machine containerized commercial ice block machine fresh water block ice machine
6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
