Product Details
Place of Origin: Shanghai, China
Brand Name: ICEMA
Model Number: BMSB250
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: $50,000.00/sets 1-2 sets
Packaging Details: wooden case
Delivery Time: 20 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Set/Sets per Month
Capacity: |
1000kg/24h |
Compressor: |
Bitzer/Copeland |
Control System: |

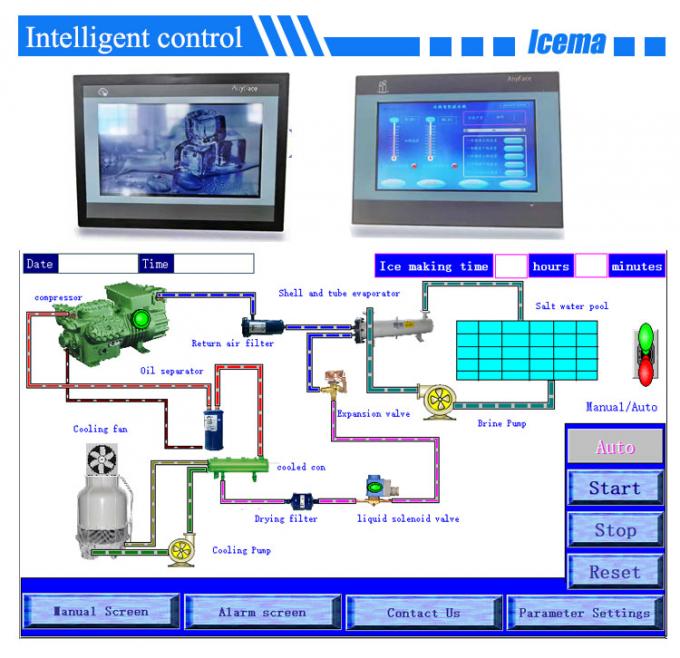

PLC |
Cooling Method: |
Air Cooling/Water Cooling |
Ice Shape: |
Block |
Ice Size: |
25mm*50mm*50mm |
Ice Thickness: |
25mm |
Material: |
Stainless Steel/Carbon Steel |
Power: |
11.5kw |
Product Name: |

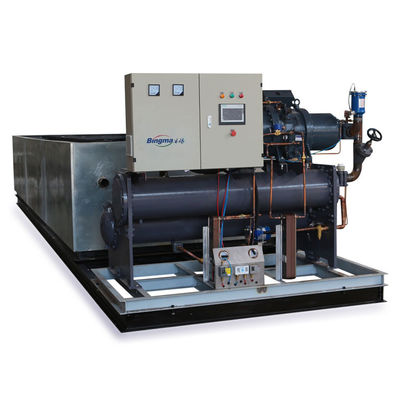

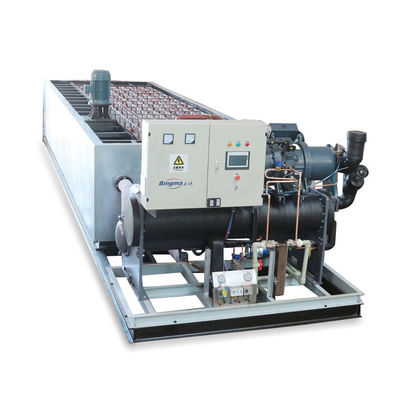

Brine Refrigeration Block Ice Machine |
Capacity: |
1000kg/24h |
Compressor: |
Bitzer/Copeland |
Control System: |
PLC |
Cooling Method: |
Air Cooling/Water Cooling |
Ice Shape: |
Block |
Ice Size: |
25mm*50mm*50mm |
Ice Thickness: |
25mm |
Material: |
Stainless Steel/Carbon Steel |
Power: |
11.5kw |
Product Name: |
Brine Refrigeration Block Ice Machine |
| Model | output (kg) |
Cooling (kw) |
input (kw) | Rated current (A) | refrigerant | compressor power(kw) | ice weight(kg/pc) | machine size(L*W*Hmm) |
| BMB20 | 2T | 14 | 7.7 | 14.3 | R22/R404A | 6.43 | 20/30/50kg | 4150*1650*2480 |
| BMB30 | 3T | 21.5 | 11 | 21.4 | R22/R404A | 9.74 | 20/30/50kg | 5000*1800*2480 |
| BMB50 | 5T | 35.9 | 18 | 35.6 | R22/R404A | 16.2 | 20/30/50kg | 5700*2200*2480 |
| BMB80 | 8T | 56.7 | 30.7 | 61.4 | R22/R404A | 27 | 20/30/50kg | 6300*2200*2480 |
| BMB100 | 10T | 77.3 | 37.5 | 75 | R22/R404A | 33.7 | 20/30/50kg | 6450*2360*2530 |
| BMB120 | 12T | 85 | 41.35 | 82.7 | R22/R404A | 37.3 | 20/30/50kg | 7100*2350*2690 |
| BMB150 | 15T | 106.8 | 59.3 | 116.6 | R22/R404A | 49.3 | 20/30/50kg | 8670*2750*2690 |
| BMB200 | 20T | 147 | 85.8 | 170.6 | R22/R404A | 75.1 | 20/30/50kg | 8960*3250*2690 |
| BMB250 | 25T | 210 | 92.4 | 184.8 | R22/R404A | 83.2 | 20/30/50kg | 11400*3250*2690 |
| BMB300 | 30T | 230.8 | 107 | 214 | R22/R404A | 92 | 20/30/50kg | 12950*3250*2690 |
| Model | output (kg) |
Cooling (kw) |
input (kw) | Rated current (A) | refrigerant | compressor power(kw) | ice weight(kg/pc) | machine size(L*W*Hmm) |
| BMSB10 | 1T | 8.6 | 4.9 | 9.6 | R22/R404A | 4.15 | 20/30/50kg | 4200*1600*1500 |
| BMSB20 | 2T | 15.78 | 8.04 | 16 | R22/R404A | 7.11 | 20/30/50kg | 5000*1600*1500 |
| BMSB30 | 3T | 21.5 | 12.37 | 24.3 | R22/R404A | 9.74 | 20/30/50kg | 5600*1900*1600 |
| BMSB50 | 5T | 38.5 | 21.56 | 43.12 | R22/R404A | 17.43 | 20/30/50kg | 6400*2600*1600 |
| BMSB100 | 10T | 77.3 | 44.6 | 88.8 | R22/R404A | 36.7 | 20/30/50kg | 7600*2600*1750 |
| BMSB150 | 15T | 115 | 62.7 | 125 | R22/R404A | 53.3 | 20/30/50kg | 9600*2600*1750 |
| BMSB200 | 20T | 147 | 90.5 | 181 | R22/R404A | 75 | 20/30/50kg | 10400*3000*1800 |
| BMSB250 | 25T | 194 | 97 | 194 | R22/R404A | 85.5 | 20/30/50kg | 9200*4100*1800 |
| BMSB300 | 30T | 234.8 | 125 | 250 | R22/R404A | 103 | 20/30/50kg | 10300*4500*1800 |
| BMSB400 | 40T | 308 | 147 | 294 | R22/R404A | 121.5 | 20/30/50kg | 12300*4500*1800 |
| BMSB500 | 50T | 368 | 185.6 | 378 | R22/R404A | 150 | 20/30/50kg | 12300*5400*1800 |
| BMSB600 | 60T | 455.8 | 215 | 428 | R22/R404A | 181.5 | 20/30/50kg | 13800*5400*1800 |
|
FAQ
|
|
|
|
|
||||
|
Q1-What is the lifespan of the machine?
|
|
|
|
|
||||
|
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment
without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine. |
|
|
|
|
||||
|
Q2-What is your payment method?
|
|
|
|
|
||||
|
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at
the Alibaba background. We have several payment methods, which one do you think is more suitable for you? |
|
|
|
|
||||
|
Q3-Which brands of compressors do you use?
|
|
|
|
|
||||
|
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
|
|
|
|
|
||||
|
Q4-What type of refrigerant are you using?
|
|
|
|
|
||||
|
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has
special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22) |
|
|
|
|
||||
|
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
|
|
|
|
|
||||
|
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you
only need to connect water and electricity to use. |
|
|
|
|
||||
