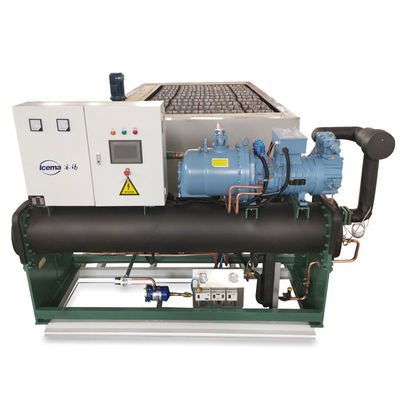

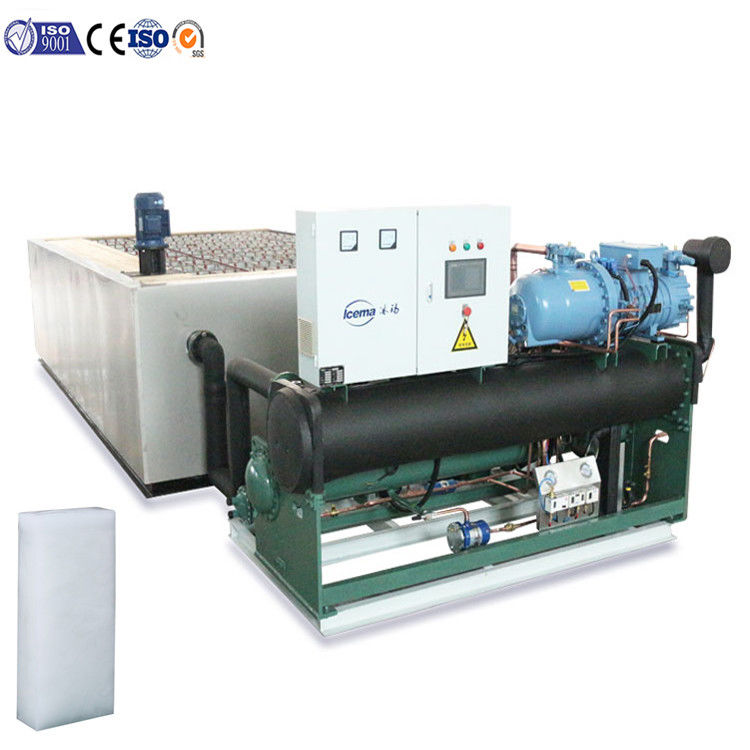

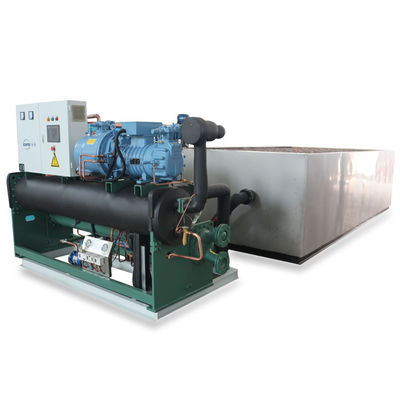

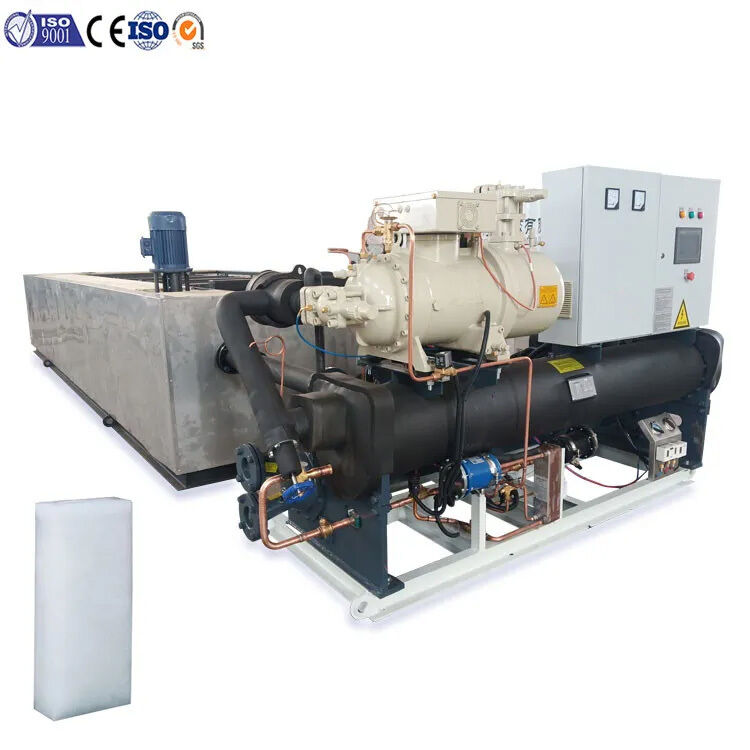

15 Tons Industrial Big Ice Block Making Machine 19.75KW

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	ICEMA
Certification:	CE/ISO
Model Number:	BMSB150

Payment & Shipping Terms:

Price:	$8,000.00/sets 1-1 sets
Packaging Details:	wooden case or plywood box or container or as per requests<br>Factory price 5 tons high quality brine block ice maker
Delivery Time:	20DAYS
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	2 Unit/Units per Month 5 ton solar ice maker

Contact Now

Detailed Product Description

Compressor Brand:	Bitzer	Cooling Way:	Brine Refrigeration
Dimension:	520021002400mm	Evaporating Temperature:	-25~-30℃
Ice Making Capacity:	2.8-3.5T/24h	Ice Shape:	Block
Ice Storage Capacity:	1.2T	Ice Temperature:	-10~-15℃
Ice Thickness:	10-25mm	Power Supply:	380V/50Hz
Highlight:	ICEMA 15 Tons big ice block making machine , ICEMA Industrial big ice block making machine , ICEMA 19.75KW clear ice block machine

ICEMA 15 Tons Large Brine Ice Block Machine Industrial Coil Tube Evaporator For Block Ice Making Machine Plant

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice weight(kg/pc)	machine size(LWHmm)
BMB20	2T	14	7.7	14.3	R22/R404A	6.43	20/30/50kg	415016502480
BMB30	3T	21.5	11	21.4	R22/R404A	9.74	20/30/50kg	500018002480
BMB50	5T	35.9	18	35.6	R22/R404A	16.2	20/30/50kg	570022002480
BMB80	8T	56.7	30.7	61.4	R22/R404A	27	20/30/50kg	630022002480
BMB100	10T	77.3	37.5	75	R22/R404A	33.7	20/30/50kg	645023602530
BMB120	12T	85	41.35	82.7	R22/R404A	37.3	20/30/50kg	710023502690
BMB150	15T	106.8	59.3	116.6	R22/R404A	49.3	20/30/50kg	867027502690
BMB200	20T	147	85.8	170.6	R22/R404A	75.1	20/30/50kg	896032502690
BMB250	25T	210	92.4	184.8	R22/R404A	83.2	20/30/50kg	1140032502690
BMB300	30T	230.8	107	214	R22/R404A	92	20/30/50kg	1295032502690

Product Paramenters

Products Description

BRINE BLOCK ICE MACHINE DESCRIPTION

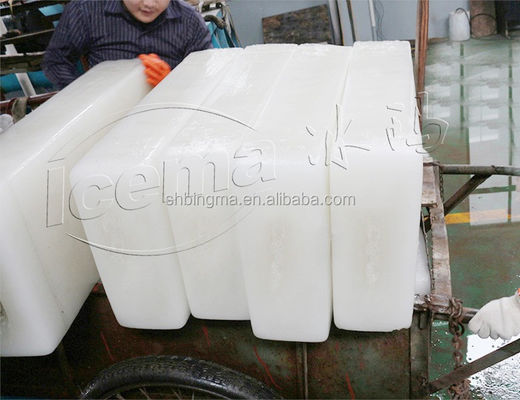

Block ice, called ice block by people habitually. Block ice is easy to save, convenient to transportation, convenient to measurement, melting time is long, and many other advantages, so it is widely used in the production and living of people.
Brine refrigeration block ice machine is used for traditional way of seawater tank of ice, the configuration of modern automation control, greatly improving the efficiency of making ice and reduce the labor intensity of the workers.
Customers can order the block ice machine according to the different occasions of ice using, different size and weight of ice and different ice frozen time, the customer can see the table below as the reference.

FUTURES

1. The traditional craft of brine heat ice;
ice machine running stable, low failure rate;
2. According to customer requirements, design
suitable block ice machine for the customer request;

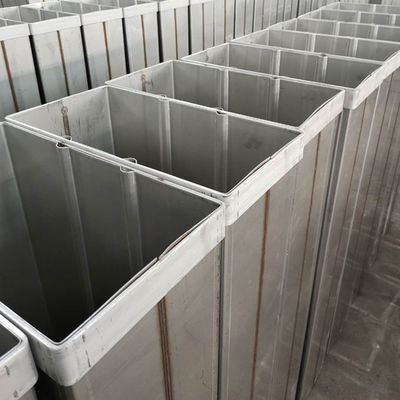

3. The ice mold can be made of galvanized
sheet or stainless steel;
4. The machine process of ice is the full
automatic control; don't need a professional people with certificates;

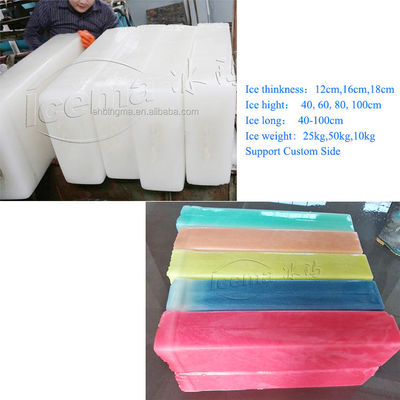

5. Ice size can be customization.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMSB10	1T	8.6KW	4.6KW	9.2A	4.15KW	R22/R404A	Air/ Water	420016001500
BMSB20	2T	15.7KW	8.3KW	16.6A	7.3KW	R22/R404A	Air/ Water	500016001500
BMSB30	3T	21.5KW	11.8KW	23.6A	10KW	R22/R404A	Air/ Water	560019001600
BMSB50	5T	38.5KW	21.56KW	43.5A	17.43KW	R22/R404A	Water/ Evaporative	640026001600
BMSB 100	10T	77.3KW	44.6KW	88.8A	36.7KW	R22/R404A	Water/ Evaporative	760026001750
BMSB 150	15T	115KW	62.7KW	125A	53.3KW	R22/R404A	Water/ Evaporative	960026001750
BMSB 200	20T	121.4KW	90.5KW	181A	75KW	R22/R404A	Water/ Evaporative	1040030001800
BMSB 250	25T	194KW	97KW	194A	85.5KW	R22/R404A	Water/ Evaporative	920041001800
BMSB 300	30T	234.8KW	125KW	250A	103KW	R22/R404A	Water/ Evaporative	10300 45001800
BMSB 400	40T	308KW	147KW	294A	121.5KW	R22/R404A	Water/ Evaporative	12300 45001800
BMSB 500	50T	368KW	185.6KW	378A	150KW	R22/R404A	Water/ Evaporative	1230054001800
BMSB 600	60T	455.8KW	215KW	428A	181.5KW	R22/R404A	Water/ Evaporative	13800 54001800

Products catalogues

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice weight(kg/pc)	machine size(LWHmm)
BMSB10	1T	8.6	4.9	9.6	R22/R404A	4.15	20/30/50kg	420016001500
BMSB20	2T	15.78	8.04	16	R22/R404A	7.11	20/30/50kg	500016001500
BMSB30	3T	21.5	12.37	24.3	R22/R404A	9.74	20/30/50kg	560019001600
BMSB50	5T	38.5	21.56	43.12	R22/R404A	17.43	20/30/50kg	640026001600
BMSB100	10T	77.3	44.6	88.8	R22/R404A	36.7	20/30/50kg	760026001750
BMSB150	15T	115	62.7	125	R22/R404A	53.3	20/30/50kg	960026001750
BMSB200	20T	147	90.5	181	R22/R404A	75	20/30/50kg	1040030001800
BMSB250	25T	194	97	194	R22/R404A	85.5	20/30/50kg	920041001800
BMSB300	30T	234.8	125	250	R22/R404A	103	20/30/50kg	1030045001800
BMSB400	40T	308	147	294	R22/R404A	121.5	20/30/50kg	1230045001800
BMSB500	50T	368	185.6	378	R22/R404A	150	20/30/50kg	1230054001800
BMSB600	60T	455.8	215	428	R22/R404A	181.5	20/30/50kg	1380054001800
