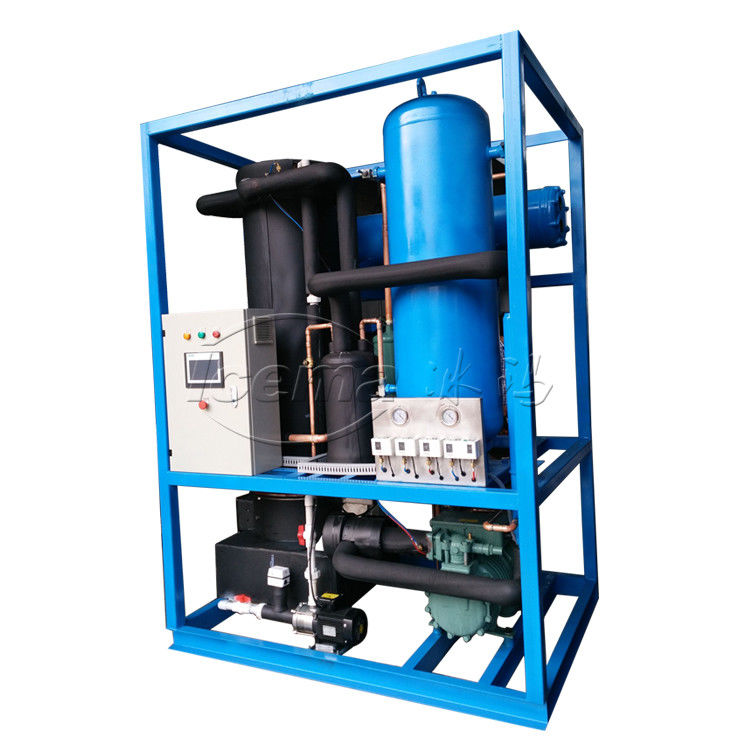

3 Tons/24H Commercial Ice Tube Maker Machine Automatic For bars ice plants

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	ICEMA
Certification:	ce
Model Number:	BMT30

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$18,200.00/sets 1-1 sets
Packaging Details:	Wooden case or plywood box or container or as per requests.
Delivery Time:	20 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Capacity:	2-20 Tons/day	Compressor:	Bitzer/Copeland
Control System:	PLC	Cooling Way:	Air/Water
Ice Shape:	Tube Ice	Ice Size:	22-29mm
Material:	Stainless Steel	Power:	7.5-22KW
Product Name:	Tube Ice Machine	Voltage:	380V/50HZ/3P
Highlight:	ice tube maker machine Commercial , 3 Tons/24H ice tube maker machine , Automatic ice machine tube

Automatic Tube Ice Machine 1Tons/24H Commercial Tube Ice Maker For Farm Sea For Food Fish Bar

Products Description

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	Tube diameter(mm)	machine size(LWHmm)
BMT10	1T	8.9	4.6	9.2	R22/R404A	3.7	25/32/38	14909001850
BMT20	2T	17.7	8.3	16.6	R22/R404A	7.3	25/32/38	149010501850
BMT30	3T	25.4	11.8	23.6	R22/R404A	10	25/32/38	165011501980
BMT50	5T	40	17.35	23.5	R22/R404A	15.7	25/32/38	176012502200
BMT80	8T	67.5	32	64	R22/R404A	27	25/32/38	293012902700
BMT100	10T	82.6	40	80	R22/R404A	33.8	25/32/38	293012902950
BMT150	15T	121.4	55.5	110	R22/R404A	48.8	25/32/38	275016803500
BMT200	20T	166	70	140	R22/R404A	61.9	25/32/38	296021003550
BMT250	25T	205	92	184	R22/R404A	80	25/32/38	340023503750

TUBE ICE MACHINE DESCRIPTION

Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This

kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.

FUTURES

1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMT10	1T	8.9KW	4.6KW	9.2A	3.7KW	R22/R404A	Air/ Water	14909001850
BMT20	2T	17.7KW	8.3KW	16.6A	7.3KW	R22/R404A	Air/ Water	14909001850
BMT30	3T	25.4KW	11.8KW	23.6A	10KW	R22/R404A	Air/ Water	14909001850
BMT50	5T	40KW	17.35KW	43.5A	15.7KW	R22/R404A	Air/ Water	14909001850
BMT80	8T	67.5KW	32KW	64A	27KW	R22/R404A	Air/ Water	14909001850
BMT100	10T	82.6KW	40KW	80A	33.8KW	R22/R404A	Water/ Evaporative	14909001850
BMT150	15T	121.4KW	55.5KW	110A	48KW	R22/R404A	Water/ Evaporative	275016803500
BMT200	20T	166KW	70KW	140A	61.9KW	R22/R404A	Water/ Evaporative	296021003550
BMT250	25T	205KW	92KW	184A	80KW	R22/R404A	Water/ Evaporative	340023503750
BMT300	30T	215KW	115KW	230A	102KW	R22/R404A	Water/ Evaporative	395023504050
