Home > products > Tube Ice Machine > 5 Tons Commercial Tube Ice Machine Automatic 3.6KW

5 Tons Commercial Tube Ice Machine Automatic 3.6KW

Product Details

Place of Origin: China

Brand Name: ICEMA

Certification: ce

Model Number: BMT50

Payment & Shipping Terms

Price: $22,000.00/sets 1-4 sets

Packaging Details: Wooden case or plywood box or container or as per requests.

Get Best Price
Highlight:

5 Tons commercial tube ice machine

,

commercial tube ice machine Automatic

,

3.6KW ice maker tube

Output:
5T/24H
Power:
17.35KW
Condenser:
Ari/Water Cooling
Refrigerant:
R404A/R507A
Rated Current:
25.5A
Rated Voltage:
220V/380V
Tube Ice Diameter:
22/25/32/38mm
Machine Size:
2760*1850*2200mm
Machine Weight:
1120kg
Warranty Period:
1 Year
Output:
5T/24H
Power:
17.35KW
Condenser:
Ari/Water Cooling
Refrigerant:
R404A/R507A
Rated Current:
25.5A
Rated Voltage:
220V/380V
Tube Ice Diameter:
22/25/32/38mm
Machine Size:
2760*1850*2200mm
Machine Weight:
1120kg
Warranty Period:
1 Year
5 Tons Commercial Tube Ice Machine Automatic 3.6KW
Automatic ice machine ice making equipment 5 tons tube ice machine price
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) Tube diameter(mm) machine size(L*W*Hmm)
BMT10 1T 8.9 4.6 9.2 R22/R404A 3.7 25/32/38 1490*900*1850
BMT20 2T 17.7 8.3 16.6 R22/R404A 7.3 25/32/38 1490*1050*1850
BMT30 3T 25.4 11.8 23.6 R22/R404A 10 25/32/38 1650*1150*1980
BMT50 5T 40 17.35 23.5 R22/R404A 15.7 25/32/38 1760*1250*2200
BMT80 8T 67.5 32 64 R22/R404A 27 25/32/38 2930*1290*2700
BMT100 10T 82.6 40 80 R22/R404A 33.8 25/32/38 2930*1290*2950
BMT150 15T 121.4 55.5 110 R22/R404A 48.8 25/32/38 2750*1680*3500
BMT200 20T 166 70 140 R22/R404A 61.9 25/32/38 2960*2100*3550
BMT250 25T 205 92 184 R22/R404A 80 25/32/38 3400*2350*3750


Products Description
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 0
TUBE ICE MACHINE DESCRIPTION

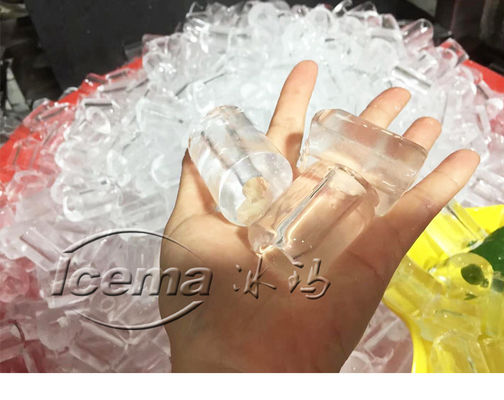

Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 1
FUTURES
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 2
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 3
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 4
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 5
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 6
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 7
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 8
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 9
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 10
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 11
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size L*W*H (mm)
BMT10
1T
8.9KW
4.6KW
9.2A
3.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT20
2T
17.7KW
8.3KW
16.6A
7.3KW
R22/R404A
Air/ Water
1490*900*1850
BMT30
3T
25.4KW
11.8KW
23.6A
10KW
R22/R404A
Air/ Water
1490*900*1850
BMT50
5T
40KW
17.35KW
43.5A
15.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT80
8T
67.5KW
32KW
64A
27KW
R22/R404A
Air/ Water
1490*900*1850
BMT100
10T
82.6KW
40KW
80A
33.8KW
R22/R404A
Water/ Evaporative
1490*900*1850
BMT150
15T
121.4KW
55.5KW
110A
48KW
R22/R404A
Water/ Evaporative
2750*1680*3500
BMT200
20T
166KW
70KW
140A
61.9KW
R22/R404A
Water/ Evaporative
 2960*2100*3550
BMT250
25T
205KW
92KW
184A
80KW
R22/R404A
Water/ Evaporative
3400*2350*3750
BMT300
30T
215KW
115KW
230A
102KW
R22/R404A
Water/ Evaporative
3950*2350*4050
Company Profile
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 12
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 13
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 14
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Products catalogues
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 15
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 16
Certifications
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 17
Customer Photos
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 18
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 19
5 Tons Commercial Tube Ice Machine Automatic  3.6KW 20
FAQ
1. Where is your company?
Changye road, lijia town, wujin district, changzhou city, jiangsu province, China.

2.What are your advantages?
We ensures our products can reach the strict quality standards and the goods can be delivered on time.
We provide warmly and friendly service and after-sale service.
We will reply you within 24 hours.
We guarantee the best price and multiple choices.

3.When can I get the price?
Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will
prioritize your inquiry.

4. How to confirm the quality before placing the order?
You are warmly welcomed to visit our factory and check the quality.

5. What is your price?
Our FOB price is based on quantity, material and size you buy.

6. What can you do for us?
All material/color/size are available, also we can customize products as your requirements. Any questions, pls don’t hesitate to contact us!
