26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic

Name

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic

Brand Name:	ICEMA
Model Number:	BMT80
Price:	$40,000.00/sets 1-1 sets
Supply Ability:	30 Unit/Units per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE

Capacity:

5-100 Tons/day

Compressor:

Bitzer/Copeland/Hanbell

Control System:

PLC

Ice Size:

22mm/28mm/35mm

Ice Thickness:

2-3mm

Power:

3-30KW

Product Name:

Tube Ice Machine

Voltage:

380V

After-sales Service Provided:

Field Installation

Condition:

New

Packaging Details:

wooden case or plywood box or container or as per requests

Supply Ability:

30 Unit/Units per Month

Highlight:

28T ice tube maker machine

,

27T ice tube maker machine

,

26T ice tube maker

Product Description

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 0

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 1

Products Description

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 2

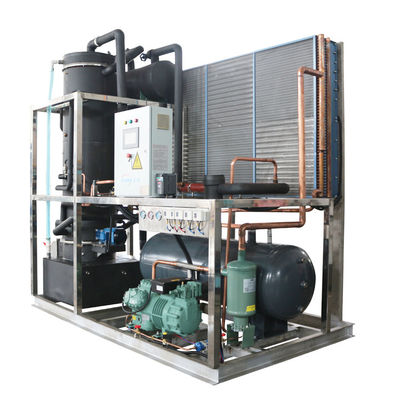

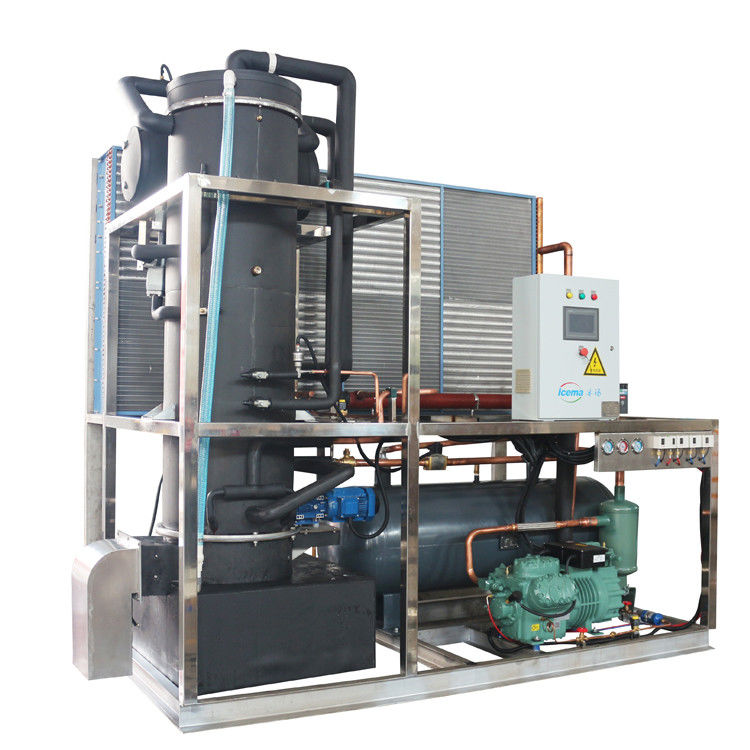

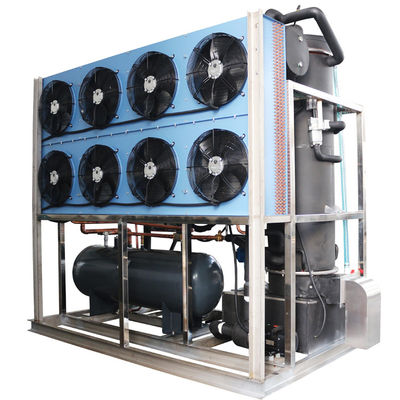

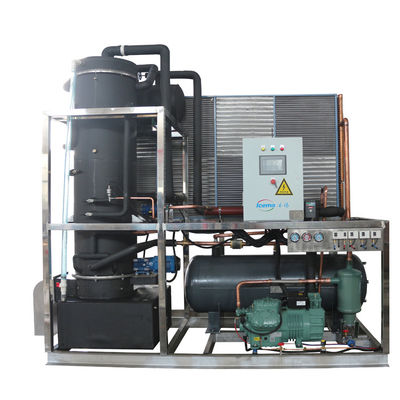

TUBE ICE MACHINE DESCRIPTION

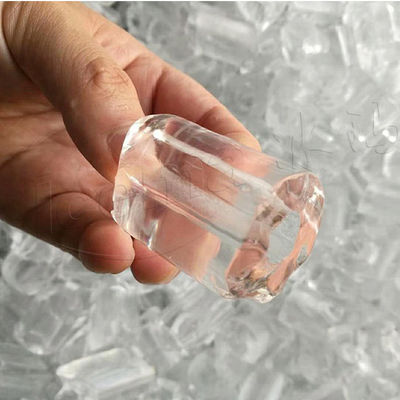

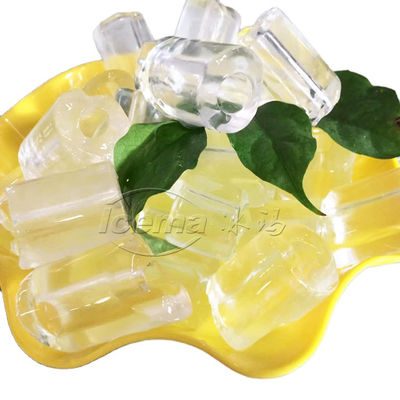

Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This

kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 3

FUTURES

1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 4

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 5

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 6

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMT10	1T	8.9KW	4.6KW	9.2A	3.7KW	R22/R404A	Air/ Water	14909001850
BMT20	2T	17.7KW	8.3KW	16.6A	7.3KW	R22/R404A	Air/ Water	14909001850
BMT30	3T	25.4KW	11.8KW	23.6A	10KW	R22/R404A	Air/ Water	14909001850
BMT50	5T	40KW	17.35KW	43.5A	15.7KW	R22/R404A	Air/ Water	14909001850
BMT80	8T	67.5KW	32KW	64A	27KW	R22/R404A	Air/ Water	14909001850
BMT100	10T	82.6KW	40KW	80A	33.8KW	R22/R404A	Water/ Evaporative	14909001850
BMT150	15T	121.4KW	55.5KW	110A	48KW	R22/R404A	Water/ Evaporative	275016803500
BMT200	20T	166KW	70KW	140A	61.9KW	R22/R404A	Water/ Evaporative	296021003550
BMT250	25T	205KW	92KW	184A	80KW	R22/R404A	Water/ Evaporative	340023503750
BMT300	30T	215KW	115KW	230A	102KW	R22/R404A	Water/ Evaporative	395023504050

Products catalogues

Company Profile

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 7

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 8

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 9

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 10

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 11

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 12

26T 27T 28T Ice Tube Maker Machine 29T 30T Automatic 13

FAQ

1. Can I customize the machine?
You can choose output, material, accessories brand, etc.
round ice machine tube ice machine ice tube machine ice tube maker tube ice making machine tube ice maker
2 . Are the prices on the website accurate?
Because the price of the machine is affected by many factors, the price of the website is not very accurate.
tube ice machine price round ice maker ice tube maker machine tube ice machine philippines
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
1 ton tube ice machine tube ice plant ice tube machine 3 ton tube ice maker machine ice tube machine

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
2 ton ice tube maker commercial tube ice machine 1 tons
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release
your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
