Home > products > Tube Ice Machine > 10 ton industrial high quality fresh-keeping ice tube machine

10 ton industrial high quality fresh-keeping ice tube machine

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Payment & Shipping Terms

Price: $35,000.00/sets 1-1 sets

Packaging Details: wooden case

Supply Ability: 3 Set/Sets per Month

Get Best Price
Highlight:
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Condition:
New
Ice Shape:
Tube Ice
Voltage:
380v/220v
Power:
4000W
Dimension(L*W*H):
2930*1250*2950mm
Weight:
3000 KG
Warranty:
2 Years, 18 Months
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
1000kg
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Bristol, Other, Frascold, Bitzer, Copeland
Application:
Industrial
Product Name:
Tube Ice Machine
Name:
Ice Tube Making Machine
Capacity:
10 Tons
Type:
Automatic Ice Maker
Cooling Way:
Air Cooling/ Water Cooling
Refrigerant:
R404a/R22a
Marketing Type:
New Product 2022
Port:
Shanghai
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Condition:
New
Ice Shape:
Tube Ice
Voltage:
380v/220v
Power:
4000W
Dimension(L*W*H):
2930*1250*2950mm
Weight:
3000 KG
Warranty:
2 Years, 18 Months
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
1000kg
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Bristol, Other, Frascold, Bitzer, Copeland
Application:
Industrial
Product Name:
Tube Ice Machine
Name:
Ice Tube Making Machine
Capacity:
10 Tons
Type:
Automatic Ice Maker
Cooling Way:
Air Cooling/ Water Cooling
Refrigerant:
R404a/R22a
Marketing Type:
New Product 2022
Port:
Shanghai
10 ton industrial high quality fresh-keeping ice tube machine
10 ton industrial high quality fresh-keeping  ice tube machine 0
10 ton industrial high quality fresh-keeping  ice tube machine 1
Products Description
10 ton industrial high quality fresh-keeping  ice tube machine 2

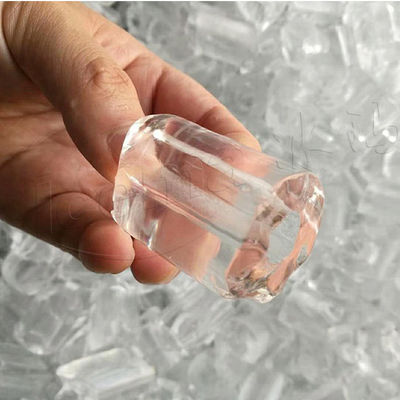

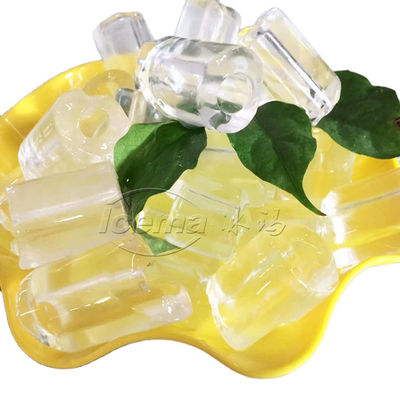

TUBE ICE MACHINE DESCRIPTION
Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
10 ton industrial high quality fresh-keeping  ice tube machine 3
FUTURES
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
10 ton industrial high quality fresh-keeping  ice tube machine 4
10 ton industrial high quality fresh-keeping  ice tube machine 5
10 ton industrial high quality fresh-keeping  ice tube machine 6
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size L*W*H (mm)
BMT10
1T
8.9KW
4.6KW
9.2A
3.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT20
2T
17.7KW
8.3KW
16.6A
7.3KW
R22/R404A
Air/ Water
1490*900*1850
BMT30
3T
25.4KW
11.8KW
23.6A
10KW
R22/R404A
Air/ Water
1490*900*1850
BMT50
5T
40KW
17.35KW
43.5A
15.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT80
8T
67.5KW
32KW
64A
27KW
R22/R404A
Air/ Water
1490*900*1850
BMT100
10T
82.6KW
40KW
80A
33.8KW
R22/R404A
Water/ Evaporative
1490*900*1850
BMT150
15T
121.4KW
55.5KW
110A
48KW
R22/R404A
Water/ Evaporative
2750*1680*3500
BMT200
20T
166KW
70KW
140A
61.9KW
R22/R404A
Water/ Evaporative
 2960*2100*3550
BMT250
25T
205KW
92KW
184A
80KW
R22/R404A
Water/ Evaporative
3400*2350*3750
BMT300
30T
215KW
115KW
230A
102KW
R22/R404A
Water/ Evaporative
3950*2350*4050
Products catalogues
Company Profile
10 ton industrial high quality fresh-keeping  ice tube machine 7
10 ton industrial high quality fresh-keeping  ice tube machine 8
10 ton industrial high quality fresh-keeping  ice tube machine 9
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
10 ton industrial high quality fresh-keeping  ice tube machine 10
10 ton industrial high quality fresh-keeping  ice tube machine 11
10 ton industrial high quality fresh-keeping  ice tube machine 12
10 ton industrial high quality fresh-keeping  ice tube machine 13
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.
round ice machine tube ice machine ice tube machine ice tube maker tube ice making machine tube ice maker
2 . Are the prices on the website accurate?
Because the price of the machine is affected by many factors, the price of the website is not very accurate.
tube ice machine price round ice maker ice tube maker machine tube ice machine philippines
3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.
1 ton tube ice machine tube ice plant ice tube machine 3 ton tube ice maker machine ice tube machine
4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.
2 ton ice tube maker commercial tube ice machine 1 tons
5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release
your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
