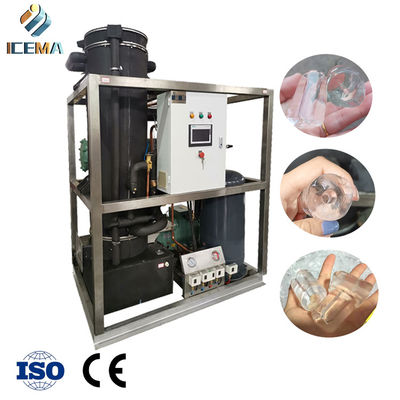

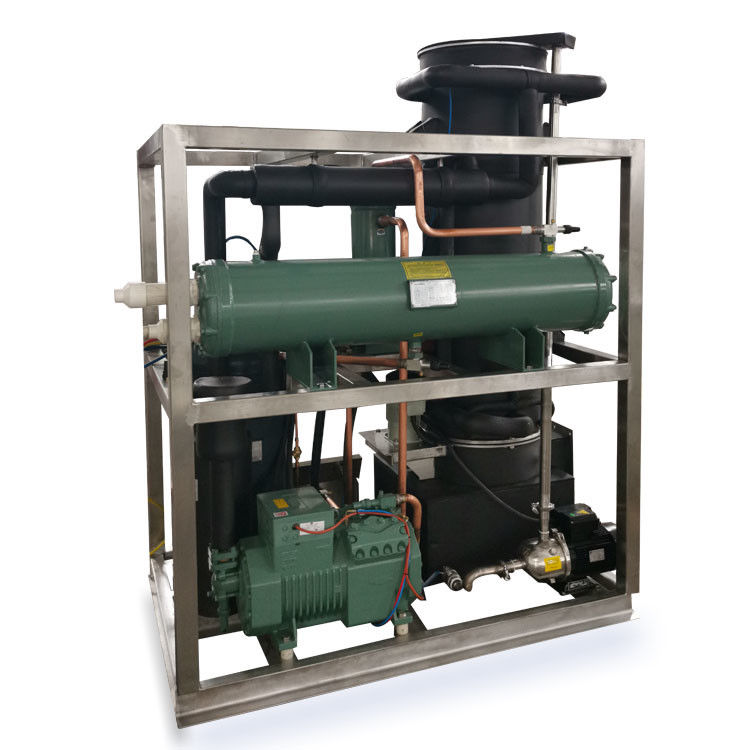

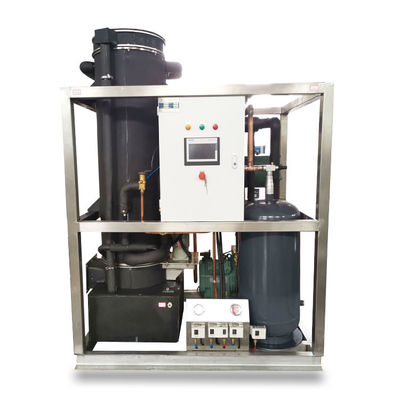

5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant

Product Details

Place of Origin: Shanghai, China

Brand Name: Icema

Model Number: BMT50

Payment & Shipping Terms

Price: $23,000.00/pieces 1-1 pieces

Packaging Details: Wooden case

Supply Ability: 1000 Set/Sets per Month

Get Best Price
Highlight:

5T/24H tube ice making machine

,

tube ice making machine Industrial

,

5T ice machine tube

Compressor Brand:
Copeland/Bitzer/Hanbell
Control System:
PLC Control
Evaporator:
Finned Tube/Shell And Tube
Ice Making Capacity:
1-20 Tons/day
Ice Size:
22mm*22mm*45mm
Installation:
Provide Installation Guide
Material:
Stainless Steel/Carbon Steel
Power:
3-30KW
Voltage:
220V/380V/415V/440V/480V
Warranty:
1 Year
Compressor Brand:
Copeland/Bitzer/Hanbell
Control System:
PLC Control
Evaporator:
Finned Tube/Shell And Tube
Ice Making Capacity:
1-20 Tons/day
Ice Size:
22mm*22mm*45mm
Installation:
Provide Installation Guide
Material:
Stainless Steel/Carbon Steel
Power:
3-30KW
Voltage:
220V/380V/415V/440V/480V
Warranty:
1 Year
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 0
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 1

Product Description
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 2

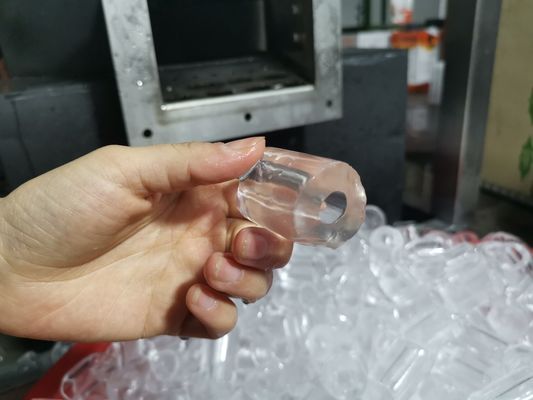

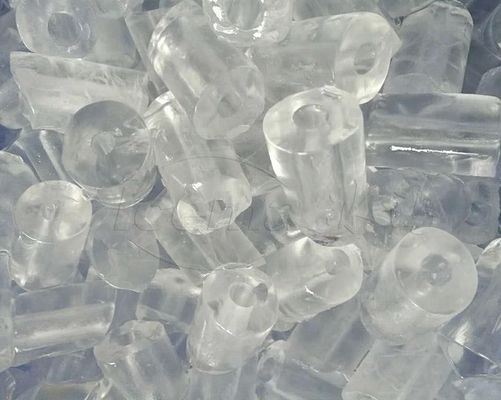

It is named because the shape of the ice produced is hollow tubular. Its inner hole diameter is between 3mm and 10mm, and its length is between 25mm and 42mm. There are various sizes to choose from. The outer diameter of the ice is 22mm, 29mm, 35mm, etc.

The shape of tube ice is round and generous, and it is crystal clear, so it is very popular among consumers. It is widely used in the preparation of wine, iced drinks, decoration and food preservation.



The tubes of the icing part of the tube ice machine are all made of SUS304 food-grade material, and the upper and lower water
tanks, the ice-cutting mechanism and the part in contact with the ice are also SUS304 stainless steel, so it is a food-grade
ice-making equipment. The machine can be used to produce commercial ice or as an industrial refrigeration freezer.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 3
Product Acessories
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 4



Bitzer compressors
Bitzer compressors is recognized as the best compressor brand on the market.
The quality of this compressor is ensured.


Ice Mold
The tubes of the freezing part of the tube ice machine are all made of SUS304 food grade material.
The diameter of the tube ice is
19mm/22mm/25mm/28mm/35mm, etc.
The length of the tube ice can be adjusted according to customer requirements.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 5
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 6










Evaporators
We offer the highest quality stainless steel evaporators with an 18 month warranty.




Stainless steel frame
Fully automatic operation of the stainless steel frame of the evaporation drum.
Quality is guaranteed.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 7
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 8



PLC+touch screen
PLC: Can directly use Siemens software to read and write programs
Touch screen: Kunlun /Siemens

The whole system comes standard with Schneider brand contactors, thermal magnetic protectors.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 9




Air cooling
Advantages: no water consumption, energy saving
Disadvantages: Loud noise, affects yield in poorly ventilated/higher temperature areas
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 10




Water cooling
Advantages: high efficiency, low noise, use in water-rich areas
Disadvantage: high water consumption
Water Filter
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 11




5 Stage Filter
Processing capacity: 2.5T/24H Water purification level: level 5 Features: up to the standard of direct drinking
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 12




Tube Filter
Processing capacity: 20T/24H Water purification level: coarse Particles
Features: suitable for kitchen use
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 13




Reverse Osmosis Filter
Processing capacity: 0.5-3T/H Water purification level: direct drinking Pellet
Features: Food Factory, Water Treatment Factory
Tube ice machines need very clean and healthy water, if your local water is not up to hygienic standards, here are three filters for you to choose from
Tube ice Application
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 14





1. Add ice for drinks and beverages; 2. Seafood , aquatic products are kept fresh and refrigerated;
3. Fruit and vegetable preservation;
4, medicine, chemical cooling;
5. Industrial cooling
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 15
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 16
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 17
Product Parameters
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 18
Relative Products

About Company
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 19
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 20
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 21
We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal
equipment.We have our own processing plants in Shanghai, Suzhou and Jiangsu. Icema integrates high-quality technology, production
and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and
modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum
warranty period of 18 months, eliminating customers' after-sales worries.
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has
established long-term good partnership with many customers at home and abroad with excellent product quality, good product
performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy
to ensure that customers are assured of products by establishing the factory's production base, various production machinery and
equipment, and finished products.
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 22
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 23
Clients Feedback
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 24
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 25
5T/24H Tube Ice Making Machine Industrial For Cool Drink / Bar / Restaurant 26
FAQ




Q1-What is the lifespan of the machine?




R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.




Q2-What is your payment method?




R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?




Q3-Which brands of compressors do you use?




R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.




Q4-What type of refrigerant are you using?




R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)




Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?




R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
