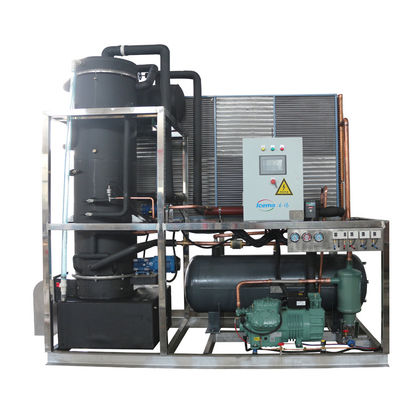

Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia

Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia

Brand Name: ICEMA
Price: $48,500.00/pieces 1-1 pieces
Supply Ability: 5 Set/Sets per Month
Detail Information
Place of Origin:
Jiangsu, China
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Condition:
New
Ice Shape:
Tube Ice
Voltage:
220V/380V/415V/440V
Power:
40KW
Dimension(L*W*H):
4200*1900*3150mm
Weight:
5200 KG
Warranty:
2 Years
Key Selling Points:
High Productivity
Ice Storage Capacity:
Other
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC, Expansion Valve, Compressor
Compressor Brand:
Frascold, Bitzer, Copeland, Refcomp
Application:
Industrial
Product Name:
Tube Ice Machine
After-sales Service Provided:
18 Months Warranty
Keyword:
Ice Tube Maker Machine
Type:
Automatic Ice Maker
Capacity:
10Ton/Day
Cooling Way:
Air Cooling /Water Cooling
Ice Size(diameter):
22/25/32/38mm
Refrigerant:
R404a/R22a
Marketing Type:
Hot Product 2022
Port:
SHANGHAI
Packaging Details:
Wooden case
Supply Ability:
5 Set/Sets per Month
Product Description
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 0
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 1
Product Description
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 2

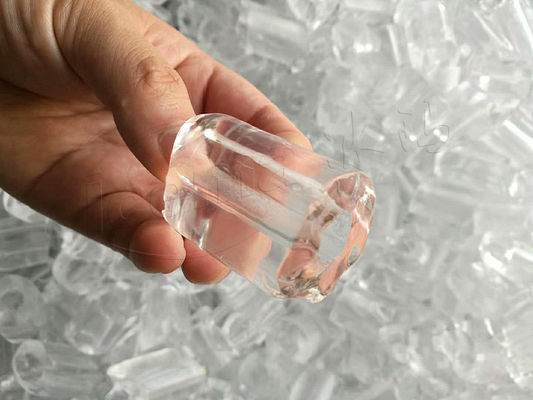

It is named because the shape of the ice produced is hollow tubular. Its inner hole diameter is between 3mm and 10mm, and its length is between 25mm and 42mm. There are various sizes to choose from. The outer diameter of the ice is 22mm, 29mm, 35mm, etc.

The shape of tube ice is round and generous, and it is crystal clear, so it is very popular among consumers. It is widely used in the preparation of wine, iced drinks, decoration and food preservation.



The tubes of the icing part of the tube ice machine are all made of SUS304 food-grade material, and the upper and lower water
tanks, the ice-cutting mechanism and the part in contact with the ice are also SUS304 stainless steel, so it is a food-grade
ice-making equipment. The machine can be used to produce commercial ice or as an industrial refrigeration freezer.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 3
Product Acessories
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 4



Bitzer compressors
Bitzer compressors is recognized as the best compressor brand on the market.
The quality of this compressor is ensured.

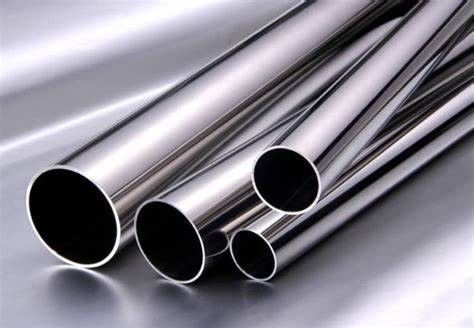

Ice Mold
The tubes of the freezing part of the tube ice machine are all made of SUS304 food grade material.
The diameter of the tube ice is
19mm/22mm/25mm/28mm/35mm, etc.
The length of the tube ice can be adjusted according to customer requirements.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 5
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 6

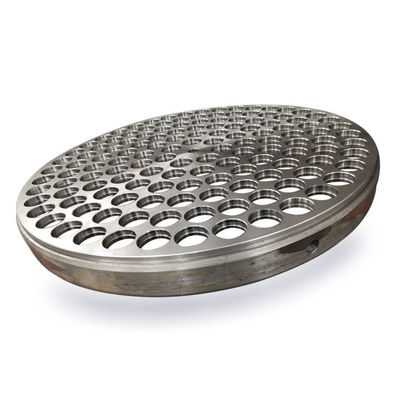

Evaporators
We offer the highest quality stainless steel evaporators with an 18 month warranty.




Stainless steel frame
Fully automatic operation of the stainless steel frame of the evaporation drum.
Quality is guaranteed.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 7
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 8



PLC+touch screen
PLC: Can directly use Siemens software to read and write programs
Touch screen: Kunlun /Siemens

The whole system comes standard with Schneider brand contactors, thermal magnetic protectors.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 9

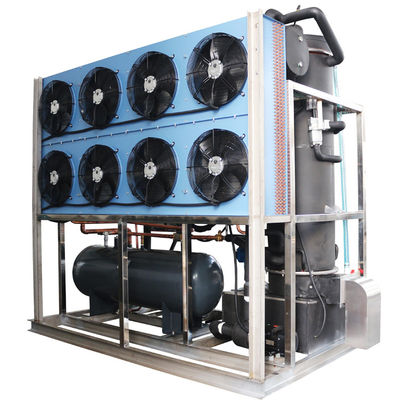

Air cooling

Advantages: no water consumption, energy saving
Disadvantages: Loud noise, affects yield in poorly ventilated/higher temperature areas
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 10


Water cooling

Advantages: high efficiency, low noise, use in water-rich areas
Disadvantage: high water consumption
Water Filter
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 11


5 Stage Filter

Processing capacity: 2.5T/24H Water purification level: level 5 Features: up to the standard of direct drinking
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 12


Tube Filter

Processing capacity: 20T/24H Water purification level: coarse Particles
Features: suitable for kitchen use
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 13


Reverse Osmosis Filter

Processing capacity: 0.5-3T/H Water purification level: direct drinking Pellet
Features: Food Factory, Water Treatment Factory
Tube ice machines need very clean and healthy water, if your local water is not up to hygienic standards, here are three filters for you to choose from
Tube ice Application
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 14





1. Add ice for drinks and beverages; 2. Seafood , aquatic products are kept fresh and refrigerated;
3. Fruit and vegetable preservation;
4, medicine, chemical cooling;
5. Industrial cooling
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 15
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 16
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 17
Product Parameters
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 18
Relative Products
About Company
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 19
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 20
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 21
We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal
equipment.We have our own processing plants in Shanghai, Suzhou and Jiangsu. Icema integrates high-quality technology, production
and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and
modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum
warranty period of 18 months, eliminating customers' after-sales worries.
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has
established long-term good partnership with many customers at home and abroad with excellent product quality, good product
performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy
to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 22
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 23
Clients Feedback
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 24
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 25
Tube Ice 10 Tons Machine ICEMA Tube Ice Maker in Malaysia 26
FAQ
Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
