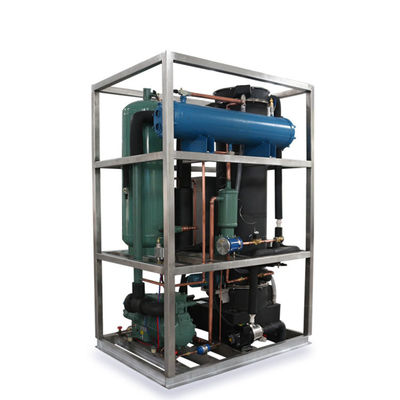

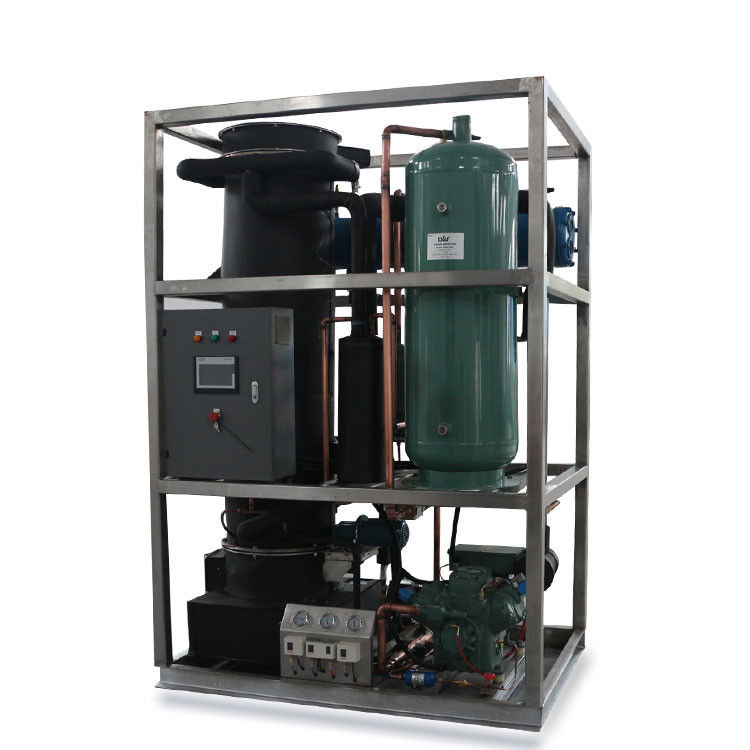

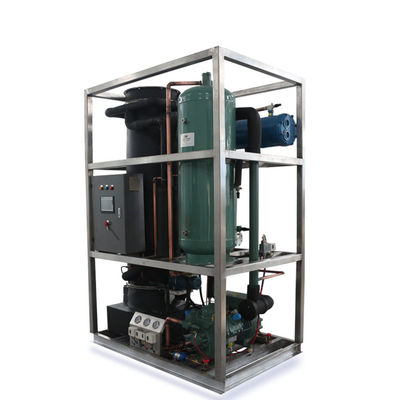

High Quality Custom Wholesale 2T/24H Small dry Tube Ice Machine for Cool Drink Tube Ice Machine for Sale

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Icema

Payment & Shipping Terms:

Price:	$13,300.00/pieces 1-4 pieces
Packaging Details:	Wooden case
Supply Ability:	1000 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Hotels, Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Energy & Mining, Food & Beverage Shops	Condition:	New
Ice Shape:	Tube Ice	Voltage:	380V/220V\|3P\|50HZ/60HZ(customizable)
Power:	8.3kw	Dimension(LWH):	246015751850mm
Weight:	1500 KG	Warranty:	1.5 Years
Key Selling Points:	Competitive Price	Ice Storage Capacity:	2T
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:	Emerson, Bristol, Other, Frascold, Xumei, Bitzer, Sanyo, Performer, TECUMSEH, Maneurop, Hitachi, Copeland, Daikin, DORIN, Fusheng	Application:	Commercial, Cold Drinks And Wine
Refrigerant:	R404	Condensation Way:	Water Cooling/Air Cooling
Tube Ice Diameter:	22mm/29mm/35 Mm	Compressor:	Bitzer
Cut Ice Knife:	304Stainless Steel	Circuit Interrupter:	Schneider
Material:	SUS304 Staineless Steel	Contonller:	PLC
Tube Ice Temperature:	-8 ℃	Marketing Type:	New Product 2022
Port:	SHANGHAI
Highlight:	Custom Wholesale Tube Ice Machine , Small Tube Ice Machine , Small dry Tube Ice Machine

Product Description

Model:BMT-20
Ice Production: 2000kg/24h

Total Power: 8.3kw
Ice Temperature:-3℃
Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Tube Size:
22/25/32/38mm
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months

The tubes of the icing part of the tube ice machine are all made of SUS304 food-grade material, and the upper and lower water
tanks, the ice-cutting mechanism and the part in contact with the ice are also SUS304 stainless steel, so it is a food-grade
ice-making equipment. The machine can be used to produce commercial ice or as an industrial refrigeration freezer.

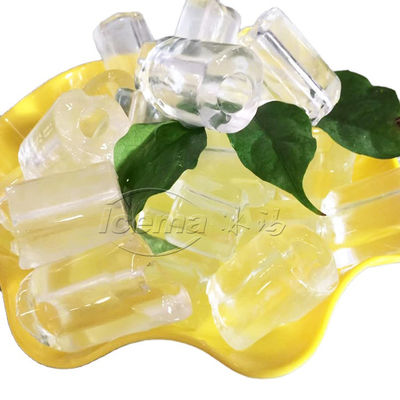

Tube ice Application

1. Add ice for drinks and beverages; 2. Seafood , aquatic products are kept fresh and refrigerated;

3. Fruit and vegetable preservation;

4, medicine, chemical cooling;

5. Industrial cooling

Product Parameters

Product Acessories

Bitzer compressors

Bitzer compressors is recognized as the best compressor brand on the market.

The quality of this compressor is ensured.

Ice Mold

The tubes of the freezing part of the tube ice machine are all made of SUS304 food grade material.

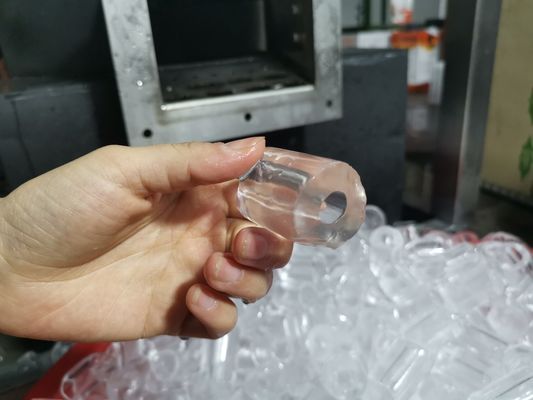

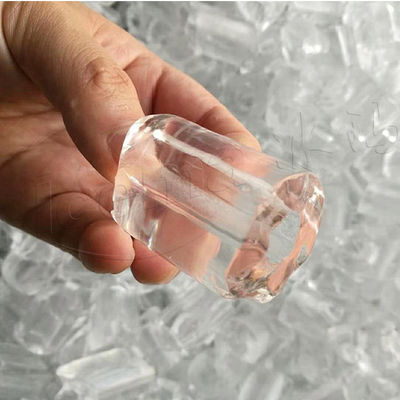

The diameter of the tube ice is
19mm/22mm/25mm/28mm/35mm, etc.

The length of the tube ice can be adjusted according to customer requirements.

Evaporators

We offer the highest quality stainless steel evaporators with an 18 month warranty.

Stainless steel frame

Fully automatic operation of the stainless steel frame of the evaporation drum.

Quality is guaranteed.

PLC+touch screen

PLC: Can directly use Siemens software to read and write programs

Touch screen: Kunlun /Siemens

The whole system comes standard with Schneider brand contactors, thermal magnetic protectors.

Air cooling

Advantages: no water consumption, energy saving

Disadvantages: Loud noise, affects yield in poorly ventilated/higher temperature areas

Water cooling

Advantages: high efficiency, low noise, use in water-rich areas

Disadvantage: high water consumption

Water Filter

5 Stage Filter

Processing capacity: 2.5T/24H Water purification level: level 5 Features: up to the standard of direct drinking

Tube Filter

Processing capacity: 20T/24H Water purification level: coarse Particles

Features: suitable for kitchen use

Reverse Osmosis Filter

Processing capacity: 0.5-3T/H Water purification level: direct drinking Pellet

Features: Food Factory, Water Treatment Factory

Tube ice machines need very clean and healthy water, if your local water is not up to hygienic standards, here are three filters for you to choose from

Relative Products

About Company

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal
equipment.We have our own processing plants in Shanghai, Suzhou and Jiangsu. Icema integrates high-quality technology, production
and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and
modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum
warranty period of 18 months, eliminating customers' after-sales worries.

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has
established long-term good partnership with many customers at home and abroad with excellent product quality, good product
performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy
to ensure that customers are assured of products by establishing the factory's production base, various production machinery and
equipment, and finished products.

Clients Feedback

FAQ
Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
