Commercial Tube Ice Machine Automatic 5 Tons/24H

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Certification: CE

Model Number: BMT50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $15,200.00/sets 1-1 sets

Packaging Details: paper case, wooden case, or requirements of customer

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 10 Set/Sets per Quarter

Get Best Price
Highlight:

Commercial Tube Ice Machine

,

Tube Ice Machine 5 Tons/24H

,

Automatic tube ice making machine

Output:
5T/24H
Power:
17.35KW
Condenser:
Ari/Water Cooling
Refrigerant:
R404A/R507A
Rated Current:
25.5A
Rated Voltage:
220V/380V
Tube Ice Diamerer:
22/25/32/38mm
Machine Size:
2760*1850*2200mm
Machine Weight:
1120kg
Warranty Period:
1 Year
Output:
5T/24H
Power:
17.35KW
Condenser:
Ari/Water Cooling
Refrigerant:
R404A/R507A
Rated Current:
25.5A
Rated Voltage:
220V/380V
Tube Ice Diamerer:
22/25/32/38mm
Machine Size:
2760*1850*2200mm
Machine Weight:
1120kg
Warranty Period:
1 Year

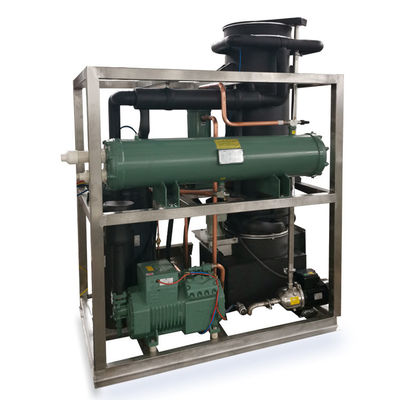

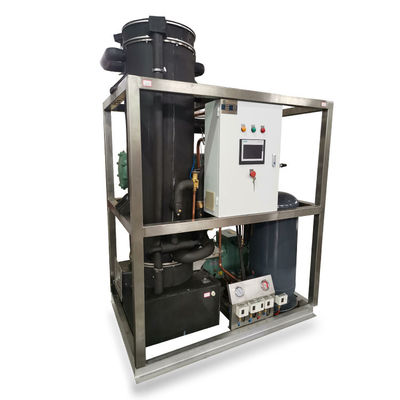

Commercial Tube Ice Machine Automatic 5 Tons/24H
Automatic Tube Ice Machine 5Tons/24H Commercial Tube Ice Maker For Farm Sea For Food Fish Bar
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) Tube diameter(mm) machine size(L*W*Hmm)
BMT10 1T 8.9 4.6 9.2 R22/R404A 3.7 25/32/38 1490*900*1850
BMT20 2T 17.7 8.3 16.6 R22/R404A 7.3 25/32/38 1490*1050*1850
BMT30 3T 25.4 11.8 23.6 R22/R404A 10 25/32/38 1650*1150*1980
BMT50 5T 40 17.35 23.5 R22/R404A 15.7 25/32/38 1760*1250*2200
BMT80 8T 67.5 32 64 R22/R404A 27 25/32/38 2930*1290*2700
BMT100 10T 82.6 40 80 R22/R404A 33.8 25/32/38 2930*1290*2950
BMT150 15T 121.4 55.5 110 R22/R404A 48.8 25/32/38 2750*1680*3500
BMT200 20T 166 70 140 R22/R404A 61.9 25/32/38 2960*2100*3550
BMT250 25T 205 92 184 R22/R404A 80 25/32/38 3400*2350*3750
Commercial Tube Ice Machine Automatic 5 Tons/24H 0

Commercial Tube Ice Machine Automatic 5 Tons/24H 1
TUBE ICE MACHINE DESCRIPTION
Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
Commercial Tube Ice Machine Automatic 5 Tons/24H 2
FUTURES
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;
3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
