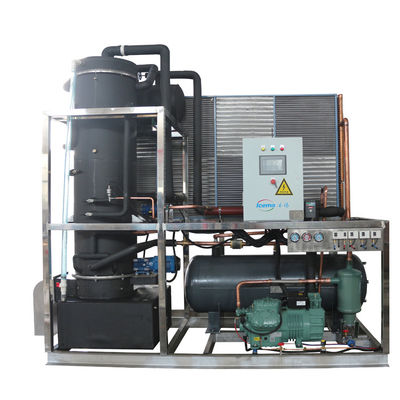

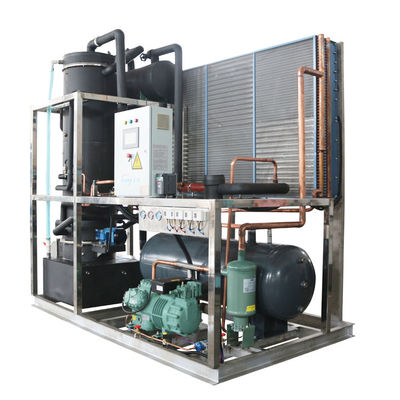

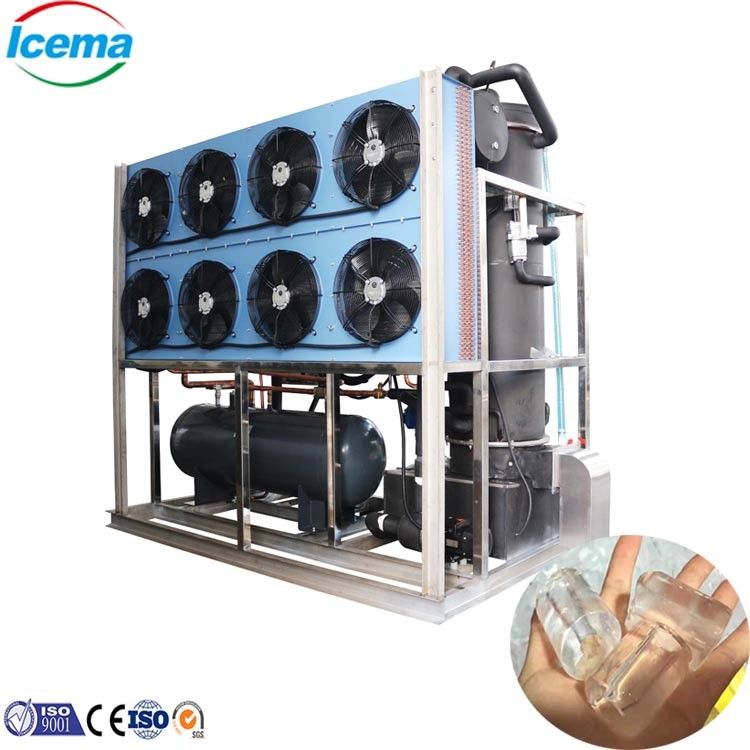

10Tons/24H Commercial Ice Tube Maker Machine Automatic

10Tons/24H Commercial Ice Tube Maker Machine Automatic

Brand Name: ICEMA
Model Number: BMT100
Price: $8,000.00/sets 1-1 sets
Supply Ability: 10 Set/Sets per Quarter
Detail Information
Place of Origin:
Jiangsu, China
Certification:
CE
Compressor:
Semi-Hermetic/Hermetic
Condenser:
Shell And Tube
Cooling Method:
Air/Water
Evaporator:
Stainless Steel
Ice Capacity:
10-20 Tons/Day
Ice Shape:
Tube
Ice Size:
Small
Ice Temperature:
-10℃
Ice Thickness:
2-3mm
Power Supply:
220V/380V/415V/440V
Packaging Details:
paper case, wooden case, or requirements of customer
Supply Ability:
10 Set/Sets per Quarter
Highlight:

10Tons/24H ice tube maker machine

,

ice tube maker machine Automatic

,

220V ice tube maker

Product Description
Automatic Tube Ice Machine 10Tons/24H Commercial Tube Ice Maker For Farm Sea For Food Fish Bar
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) Tube diameter(mm) machine size(L*W*Hmm)
BMT10 1T 8.9 4.6 9.2 R22/R404A 3.7 25/32/38 1490*900*1850
BMT20 2T 17.7 8.3 16.6 R22/R404A 7.3 25/32/38 1490*1050*1850
BMT30 3T 25.4 11.8 23.6 R22/R404A 10 25/32/38 1650*1150*1980
BMT50 5T 40 17.35 23.5 R22/R404A 15.7 25/32/38 1760*1250*2200
BMT80 8T 67.5 32 64 R22/R404A 27 25/32/38 2930*1290*2700
BMT100 10T 82.6 40 80 R22/R404A 33.8 25/32/38 2930*1290*2950
BMT150 15T 121.4 55.5 110 R22/R404A 48.8 25/32/38 2750*1680*3500
BMT200 20T 166 70 140 R22/R404A 61.9 25/32/38 2960*2100*3550
BMT250 25T 205 92 184 R22/R404A 80 25/32/38 3400*2350*3750
10Tons/24H Commercial Ice Tube Maker Machine Automatic 0

Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size L*W*H (mm)
BMT10
1T
8.9KW
4.6KW
9.2A
3.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT20
2T
17.7KW
8.3KW
16.6A
7.3KW
R22/R404A
Air/ Water
1490*900*1850
BMT30
3T
25.4KW
11.8KW
23.6A
10KW
R22/R404A
Air/ Water
1490*900*1850
BMT50
5T
40KW
17.35KW
43.5A
15.7KW
R22/R404A
Air/ Water
1490*900*1850
BMT80
8T
67.5KW
32KW
64A
27KW
R22/R404A
Air/ Water
1490*900*1850
BMT100
10T
82.6KW
40KW
80A
33.8KW
R22/R404A
Water/ Evaporative
1490*900*1850
BMT150
15T
121.4KW
55.5KW
110A
48KW
R22/R404A
Water/ Evaporative
2750*1680*3500
BMT200
20T
166KW
70KW
140A
61.9KW
R22/R404A
Water/ Evaporative
 2960*2100*3550
BMT250
25T
205KW
92KW
184A
80KW
R22/R404A
Water/ Evaporative
3400*2350*3750
BMT300
30T
215KW
115KW
230A
102KW
R22/R404A
Water/ Evaporative
3950*2350*4050
Products Description
10Tons/24H Commercial Ice Tube Maker Machine Automatic 1
TUBE ICE MACHINE DESCRIPTION
Tube ice machine is one kind of ice machine. Because of the irregular length and hollow tube, so we called it tube ice, its inside diameter is 5 mm to 15 mm ,the length is between 25 mm ~ 42 mm, there are a variety sizes that can be chosen, the outer diameter of ice are: 22, 29, 32, 35 mm,etc. This
kind of ice is called tube ice. Tube ice is round, generous, bright and transparent, so it is welcomed by consumer, it is widely used in modulating drinks, ice beverage, decoration and food fresh keeping, etc.
10Tons/24H Commercial Ice Tube Maker Machine Automatic 2
FUTURES
1. The evaporator using high quality stainless steel 304 and other materials processing, meet international health standards;
2. The machine adopts the integrated design, compact structure, easy installation and use;

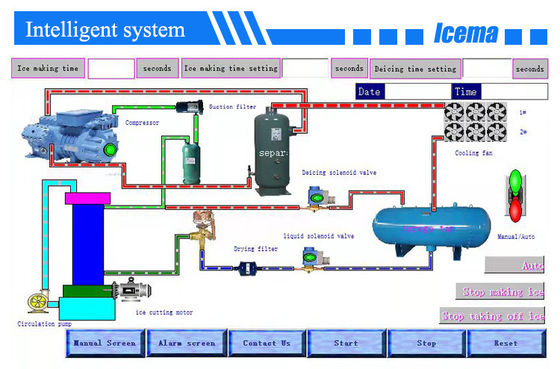

3. PLC man-machine interface computer module, ice making and ice automatically switches off, save time and effort;
4. All equipment using CAD, 3D simulation assembly, arrangement of equipment parts and accessories, pipe to more reasonable,compact structure and not crowded, operation, maintenance more human;
5. According to different working condition of customized, non-standard machines can be made.
10Tons/24H Commercial Ice Tube Maker Machine Automatic 3
10Tons/24H Commercial Ice Tube Maker Machine Automatic 4
10Tons/24H Commercial Ice Tube Maker Machine Automatic 5
Client Feedback
10Tons/24H Commercial Ice Tube Maker Machine Automatic 6
10Tons/24H Commercial Ice Tube Maker Machine Automatic 7
10Tons/24H Commercial Ice Tube Maker Machine Automatic 8
Products catalogues

Company Profile
10Tons/24H Commercial Ice Tube Maker Machine Automatic 9
10Tons/24H Commercial Ice Tube Maker Machine Automatic 10
10Tons/24H Commercial Ice Tube Maker Machine Automatic 11
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
