Home > products > Cold Water Chiller > Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications

Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications

Product Details

Place of Origin: China

Brand Name: ICEMA

Payment & Shipping Terms

Price: $2,900.00/sets 1-4 sets

Packaging Details: wooden case

Supply Ability: 100 Set/Sets per Month

Get Best Price
Highlight:
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:
Hot Sale
Type:
Air-cooled
Voltage:
380V 50Hz/60Hz
Dimension(L*W*H):
750*1580*1500mm
Weight:
200 KG
Warranty:
1.5 Years
Power:
9.92kw
Working Temperature Range:
7-12
Key Selling Points:
Easy To Operate
Refrigerant Type:
R22/R507/R404A
Compressor Qty:
2
Pump Power:
1.1kw
Water Pump Brand:
Nanfang/Muchuan
Cooling Water Flow:
8m³
Fan Size:
500mm
Condenser Type:
Finned Copper Tube+Low Noise Outer Rotor Fan
Water Tank Capacity:
120 Liter
Marketing Type:
New Product 2020
Port:
Shanghai
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition:
Hot Sale
Type:
Air-cooled
Voltage:
380V 50Hz/60Hz
Dimension(L*W*H):
750*1580*1500mm
Weight:
200 KG
Warranty:
1.5 Years
Power:
9.92kw
Working Temperature Range:
7-12
Key Selling Points:
Easy To Operate
Refrigerant Type:
R22/R507/R404A
Compressor Qty:
2
Pump Power:
1.1kw
Water Pump Brand:
Nanfang/Muchuan
Cooling Water Flow:
8m³
Fan Size:
500mm
Condenser Type:
Finned Copper Tube+Low Noise Outer Rotor Fan
Water Tank Capacity:
120 Liter
Marketing Type:
New Product 2020
Port:
Shanghai
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications
Products Description
Air Cooled Water Chiller
Industrial chillers are widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical,ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality and over one hundred different models.
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 0
Refrigerant Capacity
Model
BMW1A
BMW2A
BMW3A
BMW5A
BMW8A
BMW10A
BMW12A
BMW20AKW/hr
3
6
9
15
24
30
36
Kcal
2850
5700
8550
14250
22800
28500
34200
Range of controlling temperature
Standard models flow water at 7-12ºC (below 7ºC,please consult)
Power Supply
1N-220V 50Hz/60Hz
5N-380V 50Hz/60Hz
Total Power
KW
1.27
2.02
2.92
4.89
8.42
9.92
11.42
Control Way
Expansion valve
Compressor
Type
Hermetic scroll type or piston
Quantity
1
1
1
1
2
2
3
Brand
Panasonic
Power KW
0.75
1.50
2.25
3.75
6.00
7.5
9.00
Refrigerant
R22/R404A/R507A(For other refrigerants,consult the sales)
Condenser
Form
Efficient brass sets corrugated aluminm fin
Evaporator
Tank Capacity(L)
30
35
50
60
120
120
150
Diameter of inlet and outlet water pipe
DN20
DN20
DN20
DN20
DN40
DN40
DN40
Circulating Water Pump
Power KW
0.37
0.37
0.37
0.75
0.75
1.1
1.1
Water Flow Rate m³
6
6
6
12
12
8
8
Pump Head m
22
22
22
22
22
27
27
Brand
Nuchuan    Nanfang
Unit size
L/CM
77
77
122
125
158
158
158
W/CM
51
51
60
64
75
75
75
H/CM
87
87
120
131
150
150
150
Fan size (MM)
350
350
350
400
450
500
500
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 1

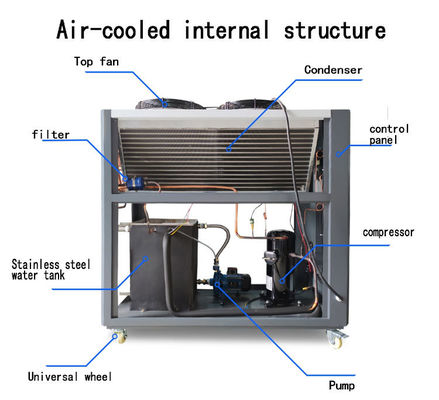

Details Images
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 2
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 3
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 4
Application
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 5
Manufacturing Shop
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 6
Customer Photos
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 7
Certifications
Easy to Operate 10HP Automatic Air Cooled Water Chiller for Industrial Applications 8
FAQ
1. How can I contact you?
You can contact me here. You can also contact me through Tel/Whatsapp/Wechat +86 18261195392, Email: angel@sh-icema.com.

2. Can I customize the refrigerator?
Yes. You can choose size, material, accessories brand, etc.

3. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

4. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
