Icema Industrial Block Ice Maker Machine Output 1t-30t For Commercial

Product Details:

Place of Origin:	Shanghai
Brand Name:	ICEMA
Certification:	CE/SGS/ISO

Payment & Shipping Terms:

Minimum Order Quantity:	1Set
Packaging Details:	Wooden box packaging
Delivery Time:	35days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000Set

Contact Now

Detailed Product Description

Highlight:

1t Block Ice Maker Machine

30t Block Ice Maker Machine

Commercial Block Ice Maker Machine

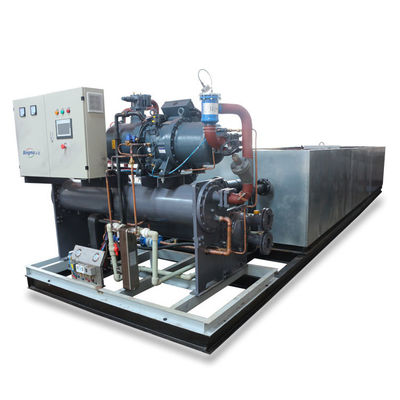

Icema Industrial Block Ice Maker Machine Output 1t-30t For Commercial 0

Direct cooling block ice machine parameters

Model	Output	Power	Condenser	Refrigerant	Rated current	Rated voltage	Machine size
BMB20	2T/24H	11KW	air/water cooling	R404A/R22	21.4A	220V/380V	500018002480mm
BMB50	5T/24H	18KW	air/water cooling	R404A/R22	35.6A	220V/380V	570022002480mm
BMB80	8T/24H	30.7KW	air/water cooling	R404A/R22	61.4A	220V/380V	630022002480mm
BMB100	10T/24H	37.5KW	water/evaporative	R404A/R22	75.6A	220V/380V	645023602530mm
BMB150	15T/24H	59.3KW	water/evaporative	R404A/R22	116.6A	220V/380V	867027502690mm
BMB200	20T/24H	85.5KW	water/evaporative	R404A/R22	170.6A	220V/380V	896032502690mm
BMB250	25T/24H	92.4KW	water/evaporative	R404A/R22	184.8A	220V/380V	1140032502690mm

Brine Block Ice Machine Parameters

Model	Output	Power	Condenser	Refrigerant	Rated current	Rated voltage	Machine size
BMSB20	2T/24H	8KW	air/water cooling	R404A/R22	16A	220V/380V	500016001500mm
BMSB30	3T/24H	12.37KW	air/water cooling	R404A/R22	24.3A	220V/380V	560019001600mm
BMSB50	5T/24H	21.56KW	air/water cooling	R404A/R22	43.12A	220V/380V	820029003500mm
BMSB100	10T/24H	44.6KW	air/water cooling	R404A/R22	88.8A	220V/380V	940029003500mm
BMSB150	15T/24H	62.7KW	air/water cooling	R404A/R22	127A	220V/380V	960026001750mm
BMSB200	20T/24H	90.5KW	air/water cooling	R404A/R22	181A	220V/380V	1040030001800mm
BMSB250	25T/24H	97KW	air/water cooling	R404A/R22	194A	220V/380V	920041001800mm

Feature

1.High density, high strength, not easy to melt
2.Can be made into colorful ice
3.Available in a variety of sizes
4.Clean, hygienic and free of impurities
5.Low temperature

Icema Industrial Block Ice Maker Machine Output 1t-30t For Commercial 1

Bitzer /Refcomp/Frascold Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;

2.the brand effect is good, the quality is more guaranteed;

3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Reliable Condenser

1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;

2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°

SUS304 Evaporator

1.Use stainless steel material for good grade

2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency

PLC+ Touch screen

1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield

4.More status indications to facilitate machine
maintenance

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Product Technical Map

FAQ

1.After-sales service and support?

18 months machine warranty (free replacement parts), after the expiration of the period, only charge the cost of parts + freight; lifelong 24-hour online support, offline service engineers travel expenses borne by the customer.

2.Production experience and export cases?

The factory was established 15 years ago, the products are exported to Europe, America, Southeast Asia, Africa, involving more than 130 countries

3.Terms of the transaction?

Prepayment 30% + final payment 70%, shipment after final payment

4.Factory Audit & Inspection?

Provide production process video or third party factory inspection report
