Home > products > Freshwater Flake Ice Machine > 2T Freshwater Flake Ice Machine 380V/220V With Ice Storage

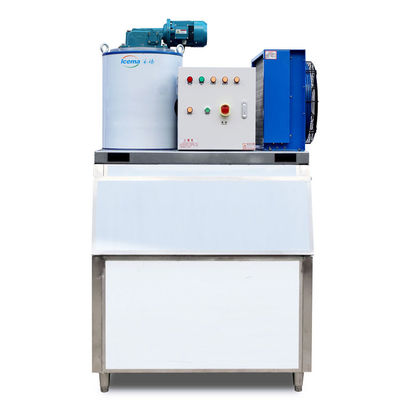

2T Freshwater Flake Ice Machine 380V/220V With Ice Storage

Product Details

Place of Origin: Shanghai, China

Brand Name: ICEMA

Certification: CE / ISO

Model Number: BMF20

Payment & Shipping Terms

Price: $1,000.00/units 1-9 units

Packaging Details: Wooden case

Supply Ability: 100 Unit/Units per Month crushed ice maker machine

Get Best Price
Highlight:

2T Freshwater Flake Ice Machine

,

Freshwater Flake Ice Machine 380V

,

220V flake ice machine for fish

Ice Shape:
Ice Flack
Voltage:
380V
Power:
8.66KW
Dimension(L*W*H):
1500*1250*1350mm
Weight:
750 KG
Warranty:
1.5 Years
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
2T
Application:
Industrial
Compressor:
Tecumseh
Ice Shape:
Ice Flack
Voltage:
380V
Power:
8.66KW
Dimension(L*W*H):
1500*1250*1350mm
Weight:
750 KG
Warranty:
1.5 Years
Key Selling Points:
Easy To Operate
Ice Storage Capacity:
2T
Application:
Industrial
Compressor:
Tecumseh
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage
Hot Sale 2T Flake Ice Making Machine Flake Ice Maker With Ice Storage For Fish Competitive Price
Products Description
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(MM) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890

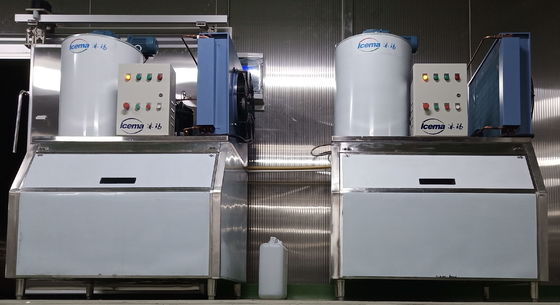

2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 0
FLAKE ICE MACHINE DESCRIPTION

Thin, this is an irregular tape -like ice. Different sizes; the largest section size is about 30.5mm x 30.5 mm, and the thickness is 1.5 mm-2.5 mm. Because of its dryness, it can be used safely through the characteristics of cooling materials, so it is widely used in hotels, supermarkets, chemicals, buildings and deep -sea fishing. The frozen principle of a thin ice machine is very simple. Put the city water directly into the cold water tank of the assembly unit. When the refrigeration system starts to work, the closed -loop refrigerant exchange the outdoor closed -ring heat exchange water to the water tank, and pump the water into the water into the water. The circulating pump in the pot is driven by the restore device. The water on the inner wall flows evenly in the pot. The refrigerant in the refrigerant system evaporates through the circular in the middle ring of the evaporator and exchanges heat with water on the wall and water on the wall.
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 1
FUTURES AND SUITABLE INDUSTRY
Features:
1. Less space,, low power consumption, no special requirements of the installation environment;
2. The failure rate is low, do not need professionals staff to control;
3. The operation is simple, one-click operation;
4. The ice can be made in one minute , don't need to wait for a long time;
5. Configurable standard cold storage(if customers need it, please tell us in advance)

Suitable industry:
1. Seafood showing in the hotel, vegetables fresh-keeping, special packaging for the special food;
2. Seafood showing and transporting in the supermarket, , vegetable fresh-keeping and transporting;
3. The dietary supplementation of food factory, Raw material storing, food precooling;
4. The lives stock precooling ,fresh keeping ,freezing and transporting after killing in the meat processing plant ;
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 2
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 3
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 4
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size
 L*W*H (mm)
BMF03
0.3T
2.1KW
1.9KW
4.3A
1.5KW
R22/R404A
 Water
950*800* *680
BMF05
0.5T
3.5KW
2.45KW
5.6A
2.1KW
R22/R404A
 Water
950*800* 810
BMF08
0.8T
5KW
3.5KW
7A
2.9KW
R22/R404A
Water
1320*970*850
BMF10
1T
6.35KW
4.33KW
8.66A
3.6KW
R22/R404A
Air/ Water
1320*970*900
BMF20
2T
12.9KW
8.66KW
17.3A
5.88KW
R22/R404A
Air/ Water
1500*1100*1050
BMF30
3T
21.5KW
13KW
26A
9.7KW
R22/R404A
Air/ Water
1745*1360*1250
Company Profile
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 5
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 6
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 7
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 8
Products catalogues
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 9
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 10
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 11
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 12
2T Freshwater Flake Ice Machine 380V/220V With Ice Storage 13
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
