Home > products > Freshwater Flake Ice Machine > Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling

Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling

Product Details

Place of Origin: Shanghai, China

Brand Name: ICEMA

Certification: CE / ISO

Model Number: BMF50

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: $14,500.00/units 1-1 units

Packaging Details: Wooden boxes or into container

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 100 Unit/Units per Month crushed ice maker machine

Get Best Price
Highlight:

Fresh Water flake ice maker machine

,

Industrial flake ice maker machine

,

5 Tons flake style ice machine

Compressor:
High Efficiency
Condenser:
Air-cooled
Evaporator:
Stainless Steel
Ice Making Capacity:
30kg/24h
Ice Shape:
Flake
Ice Storage Capacity:
10kg
Ice Thickness:
1.5-2.2mm
Power Supply:
220V/50Hz
Refrigerant:
R404A/R507A
Size:
520*650*850mm
Compressor:
High Efficiency
Condenser:
Air-cooled
Evaporator:
Stainless Steel
Ice Making Capacity:
30kg/24h
Ice Shape:
Flake
Ice Storage Capacity:
10kg
Ice Thickness:
1.5-2.2mm
Power Supply:
220V/50Hz
Refrigerant:
R404A/R507A
Size:
520*650*850mm
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling
Industrial Fresh water Flake Ice Machine 5Tons Direct Cooling Flake Ice Maker Equipment For Fish Sea Food Factory
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(MM) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 0
Products Description

Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 1
FLAKE ICE MACHINE DESCRIPTION

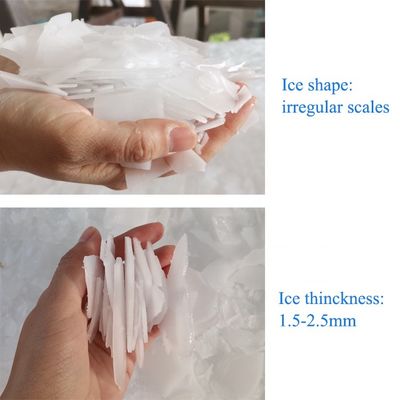

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm x 30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.
The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of

The assembly unit, when the refrigeration system starts to work, the closed -loop heat exchange of the refrigerant, the external water flows into the water tank, and the water is pumped into the water cooker The circulating pump, the water in the pot is uniformly flowing along the inner wall of evaporation. The refrigerant in the refrigerator evaporates through the circuit inside the evaporator and exchanges a lot of calories through the water on the wall. The water on the surface was coolly cooling below the freezing point, and instantly frozen ice into ice. Some water masks were attached to the bottom of the evaporator and then entered the water to recycled. When the ice on the inner wall reached a certain thickness, the spiral skate was driven from the ice cubes from the inner wall, so as Belly slices are formed, the storage refrigerator at the bottom of the boring slices is formed and stored to prepare for future recycling.


Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 2
FUTURES
1. High efficiency of ice making;
2. Power is relatively large, need to determine the power capacity;
3. Color man-machine interface, the unit running status be clear at a glance, simple operation,
4. Optional piston or screw compressor unit;
5. There is no standard ice storage, non-standard order is allowed.

SUITABLE INDUSTRY
1. The raw materials storing and precooling of the food processing plant;
2. The lives stock precooling, fresh keeping, freezing and transporting after killing in the meat processing plant;
3. The reaction kettle of chemical plant, raw material cooling and the box-type and environment cooling;
4. Concrete cooling during mixing, concrete adding in the construction industry;
5. Ice factory;
6. The deep-sea fishing and seafood fresh keeping;
7. The mine cooling.
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 3
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 4
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size
 L*W*H (mm)
BMF50
5T
35KW
17.8KW
35.7A
14.5KW
R22/R404A
Air/ Water
2200*1500*1600
BMF80
8T
53.8KW
29.2KW
58.5A
24.6KW
R22/R404A
Air/ Water
2740*1900*1690
BMF100
10T
65KW
34.7KW
69.4A
31KW
R22/R404A
Air/ Water
2740*1900*1830
BMF150
15T
95.2KW
49.6KW
99.2A
44.8KW
R22/R404A
Air/ Water
2740*2100*2320
BMF200
20T
133KW
64.6KW
129.3A
57.2KW
R22/R404A
Air/ Water
295021002260
BMF250
25T
165.7KW
87.7KW
175.4A
78.5KW
R22/R404A
 Water/
Evaporation
2950*2100*2450
BMF300
30T
185KW
93.5KW
187A
84.3KW
R22/R404A
 Water/
Evaporation
4300*2100*2520
BMF350
35T
228KW
124KW
284A
111.5KW
R22/R404A
 Water/
Evaporation
4300*2100*2690
BMF400
40T
260KW
168KW
336A
156KW
R22/R404A
 Water/
Evaporation
4300*2100*2890
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 5
Company Profile
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 6
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 7
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 8
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 9
Products catalogues
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 10
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 11
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 12
Industrial Fresh Water Flake Ice Maker Machine 5 Tons Direct Cooling 13
FAQ
1. Can I customize the machine?
Yes. You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
