10 Tons Seawater Flake Ice Machine Commercial 32kw 380V

Brand Name:	ICEMA
Model Number:	BMSF10
MOQ:	1 SET
Price:	$29,100.00/sets 1-2 sets
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

Compressor:

Bitzer/Copeland

Control System:

PLC

Dimension:

Customized

Evaporator:

Stainless Steel

Ice Making Capacity:

2.5-20 Tons/day

Ice Storage Bin:

Stainless Steel

Ice Temperature:

-5~-15℃

Ice Thickness:

1.5-2.2mm

Power Consumption:

10-50KW

Power Supply:

220V/380V/415V/440V/460V/480V

Packaging Details:

Wooden boxes or into container

Supply Ability:

2 Set/Sets per Month

Highlight:

10 Tons Seawater Flake Ice Machine

Seawater Flake Ice Machine Commercial

380V flake ice maker machine

Product Description

Automatic Sea water Flake Ice Machine 10Tons Commercial Slat Flake Ice Maker For Farm Sea For Food Fish Farm

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(mm)	machine size(LWHmm)
BMSF10	1T	6.5	5.9	11.8	R507A/R404A	4.6	1.5-2.5mm	1320970680
BMSF20	2T	12.7	11.3	22.6	R507A/R404A	8.6	1.5-2.5mm	150011001050
BMSF30	3T	18.4	15.8	31.6	R507A/R404A	12.3	1.5-2.5mm	174513601250
BMSF50	5T	32.8	27.7	55.4	R507A/R404A	22.7	1.5-2.5mm	220015001600
BMSF80	8T	49	41	82	R507A/R404A	36	1.5-2.5mm	274019001690
BMSF100	10T	67.5	57.8	115	R507A/R404A	52.5	1.5-2.5mm	274019001830

Products Description

FLAKE ICE MACHINE DESCRIPTION

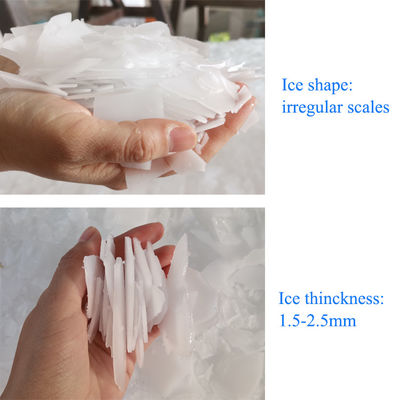

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm x 30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of assembling unit.

FUTURES AND SUITABLE INDUSTRY

Features:
1. Less space,, low power consumption, no special requirements of the installation environment;
2. The failure rate is low, do not need professionals staff to control;
3. The operation is simple, one-click operation;
4. The ice can be made in one minute , don't need to wait for a long time;

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMF03	0.3T	2.1KW	1.9KW	4.3A	1.5KW	R22/R404A	Water	950800 *680
BMF05	0.5T	3.5KW	2.45KW	5.6A	2.1KW	R22/R404A	Water	950800 810
BMF08	0.8T	5KW	3.5KW	7A	2.9KW	R22/R404A	Water	1320970850
BMF10	1T	6.35KW	4.33KW	8.66A	3.6KW	R22/R404A	Air/ Water	1320970900
BMF20	2T	12.9KW	8.66KW	17.3A	5.88KW	R22/R404A	Air/ Water	150011001050
BMF30	3T	21.5KW	13KW	26A	9.7KW	R22/R404A	Air/ Water	174513601250

Customer Reviews

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(kg/pc)	machine size(LWHmm)
BMSF10	1T	6.5	5.9	11.8	R507A/R404A	4.6	1.5-2.5mm	1320970680
BMSF20	2T	12.7	11.3	22.6	R507A/R404A	8.6	1.5-2.5mm	150011001050
BMSF30	3T	18.4	15.8	31.6	R507A/R404A	12.3	1.5-2.5mm	174513601250
BMSF50	5T	32.8	27.7	55.4	R507A/R404A	22.7	1.5-2.5mm	220015001600
BMSF80	8T	49	41	82	R507A/R404A	36	1.5-2.5mm	274019001690
BMSF100	10T	67.5	57.8	115	R507A/R404A	52.5	1.5-2.5mm	274019001830

Company Profile

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
