Home > products > Freshwater Flake Ice Machine > Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling

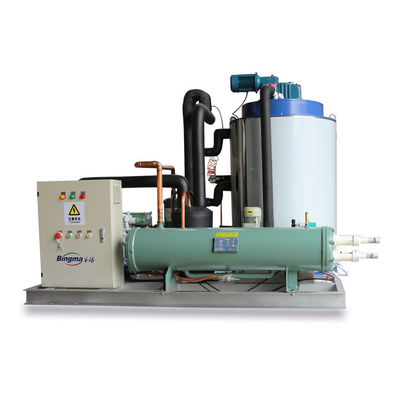

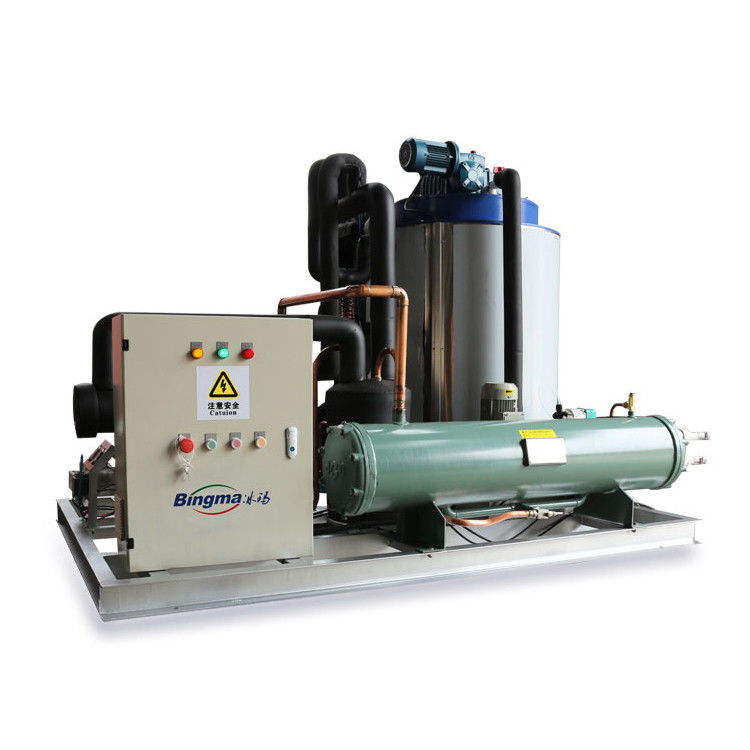

Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Certification: CE

Model Number: BMF500

Payment & Shipping Terms

Price: $16,150.00/sets 1-2 sets

Packaging Details: Wooden case

Supply Ability: 2 Set/Sets per Month

Get Best Price
Highlight:

Automatic fresh water flake ice machine

,

fresh water flake ice machine 50 Tons

,

Direct Cooling flake ice maker

Name:
Flake Ice Machine
Voltage:
220V/380V
Machine Size:
2200*1500*1600
Key Selling Points:
Automatic
Ice Type:
Flake Shape
Refrigerant:
R404a
Cooling Way:
Water Cooling\Air Cooling
Condenser:
Water/evaporation
Condition:
New
Capacity:
5ton/day
Name:
Flake Ice Machine
Voltage:
220V/380V
Machine Size:
2200*1500*1600
Key Selling Points:
Automatic
Ice Type:
Flake Shape
Refrigerant:
R404a
Cooling Way:
Water Cooling\Air Cooling
Condenser:
Water/evaporation
Condition:
New
Capacity:
5ton/day
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling
Automatic Fresh water Flake Ice Machine 50Tons Direct Cooling Flake Ice Maker Equipment For Farm Sea Food Factory

Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(MM) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 0
FLAKE ICE MACHINE DESCRIPTION

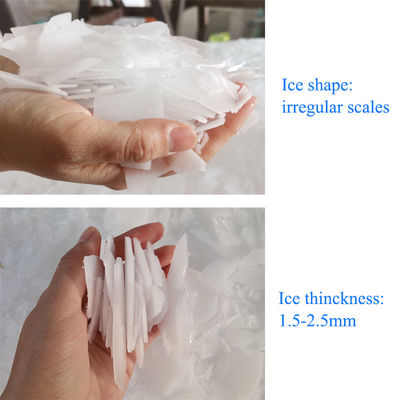

Thin pieces, this is an irregular tape -like ice. Different size; the largest slice size is about 30.5mm x 30.5 mm, and the thickness is 1.5 mm-2.5 mm. Because of its dryness, it is safely used through the characteristics of cooling materials, so it is widely used in hotels, supermarkets, chemical industries, buildings and deep -sea fishing. The frozen principle of the thin ice machine is very simple. Put the city water directly into the cold water tank of the assembly unit. When the refrigeration system starts to work, the closed -loop refrigerant exchange the outdoor closed -loop heat exchange water to the water tank, and pump the water into the water into the water allocation. In the pot The circulating pump driven by the reducing device, the inner wall of the water flowing uniformly in the pot, the refrigerant in the refrigerant system is evaporated through the ring in the ring in the loop in the evaporator, and the heat exchange with the water on the wall and the water on the wall. Replace calories to absorb a large amount of heat results. The water flows over the surface of the wall of the internal evaporator, cools sharply below the freezing point, and instantly frozen to the ice. Some water film is connected to the bottom of the evaporator, then recycled in the water, and then recycled, and then in the water. Water recycling. The inner wall reaches a certain thickness. The spiral ice skates are driven to the inner wall to peel off the ice, thereby forming an boring piece, falling into the ice cubes at the bottom of the boring, and stored in the future cycling. Generally speaking, thin pieces can fall into the storage space within 30 seconds. The machine stops ice after 2 minutes.

Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 1
FUTURES AND SUITABLE INDUSTRY
Features:
1. Less space,, low power consumption, no special requirements of the installation environment;
2. The failure rate is low, do not need professionals staff to control;
3. The operation is simple, one-click operation;
4. The ice can be made in one minute , don't need to wait for a long time;
5. Configurable standard cold storage(if customers need it, please tell us in advance)

Suitable industry:
1. Seafood showing in the hotel, vegetables fresh-keeping, special packaging for the special food;
2. Seafood showing and transporting in the supermarket, , vegetable fresh-keeping and transporting;
3. The dietary supplementation of food factory, Raw material storing, food precooling;
4. The lives stock precooling ,fresh keeping ,freezing and transporting after killing in the meat processing plant ;
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 2
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size
 L*W*H (mm)
BMF03
0.3T
2.1KW
1.9KW
4.3A
1.5KW
R22/R404A
 Water
950*800* *680
BMF05
0.5T
3.5KW
2.45KW
5.6A
2.1KW
R22/R404A
 Water
950*800* 810
BMF08
0.8T
5KW
3.5KW
7A
2.9KW
R22/R404A
Water
1320*970*850
BMF10
1T
6.35KW
4.33KW
8.66A
3.6KW
R22/R404A
Air/ Water
1320*970*900
BMF20
2T
12.9KW
8.66KW
17.3A
5.88KW
R22/R404A
Air/ Water
1500*1100*1050
BMF30
3T
21.5KW
13KW
26A
9.7KW
R22/R404A
Air/ Water
1745*1360*1250
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 3
Company Profile
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 4
Products catalogues

Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 5
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 6
Automatic Fresh Water Flake Ice Machine 50 Tons Direct Cooling 7
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
