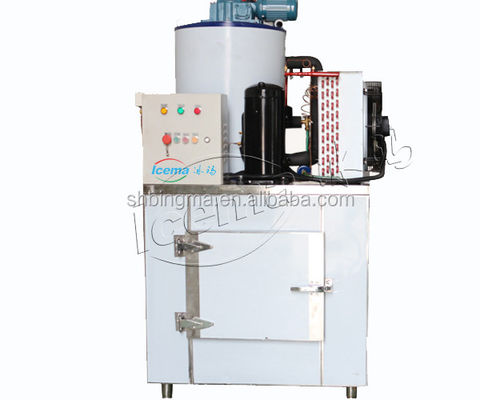

1 Tons Freshwater Flake Ice Machine Commercial 380V 220V

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Certification: CE

Model Number: BMF10

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $7,000.00/sets 1-1 sets

Packaging Details: Wooden case or plywood box or container or as per requests

Payment Terms: L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability: 10 Unit/Units per Month

Get Best Price
Highlight:

Icema 1 Tons Freshwater Flake Ice Machine

,

Icema Commercial Freshwater Flake Ice Machine

,

Icema 380V 1 ton flake ice machine

Product Name:
Commercial Flake Ice Machine
Ice Shape:
Flake Ice
Voltage:
220V/380V
Dimension(L*W*H):
1100*800*820mm
Weight:
240 KG
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Type:
Automatic Ice Maker
Cooling Way:
Air Cooling /Water Cooling
Refrigerant:
R404a/R507a
Product Name:
Commercial Flake Ice Machine
Ice Shape:
Flake Ice
Voltage:
220V/380V
Dimension(L*W*H):
1100*800*820mm
Weight:
240 KG
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Type:
Automatic Ice Maker
Cooling Way:
Air Cooling /Water Cooling
Refrigerant:
R404a/R507a
1 Tons Freshwater Flake Ice Machine Commercial 380V 220V
Automatic Fresh water Flake Ice Machine 1Tons Commercial Flake Ice Maker Equipment For Farm Sea For Food Fish Farm
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(MM) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890
Products Description

1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 0
FLAKE ICE MACHINE DESCRIPTION

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm x 30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.
The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of assembling unit, When the refrigeration system begins to work, the closed loop heat exchange of refrigerant, outside water flow into the tank, the water is pumped into the water distribution pan by the
circulating pump, driven by the reducer, the water in the pan evenly flows down the inner wall of evaporate, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat by exchanging heat with the water on the wall, as a result, the water flow over the surface of inner evaporator wall sharply cools to below the freezing point and freezes into ice instantaneously, Part of the water film attached the bottom of evaporator and then into the water for recycling, when the ice on the inner wall reaches a certain thickness, the spiral ice skates is driven to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of ice flakes and stored for future cycling.
Generally speaking, the flake ice can fall into the storage in 30 seconds; stop making ice in 2 minutes after machine turned off.
1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 1
FUTURES AND SUITABLE INDUSTRY
Features:
1. Less space,, low power consumption, no special requirements of the installation environment;
2. The failure rate is low, do not need professionals staff to control;
3. The operation is simple, one-click operation;
4. The ice can be made in one minute , don't need to wait for a long time;
5. Configurable standard cold storage(if customers need it, please tell us in advance)

Suitable industry:
1. Seafood showing in the hotel, vegetables fresh-keeping, special packaging for the special food;
2. Seafood showing and transporting in the supermarket, , vegetable fresh-keeping and transporting;
3. The dietary supplementation of food factory, Raw material storing, food precooling;
4. The lives stock precooling ,fresh keeping ,freezing and transporting after killing in the meat processing plant ;
1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 2
Product Paramenters
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size
 L*W*H (mm)
BMF03
0.3T
2.1KW
1.9KW
4.3A
1.5KW
R22/R404A
 Water
950*800* *680
BMF05
0.5T
3.5KW
2.45KW
5.6A
2.1KW
R22/R404A
 Water
950*800* 810
BMF08
0.8T
5KW
3.5KW
7A
2.9KW
R22/R404A
Water
1320*970*850
BMF10
1T
6.35KW
4.33KW
8.66A
3.6KW
R22/R404A
Air/ Water
1320*970*900
BMF20
2T
12.9KW
8.66KW
17.3A
5.88KW
R22/R404A
Air/ Water
1500*1100*1050
BMF30
3T
21.5KW
13KW
26A
9.7KW
R22/R404A
Air/ Water
1745*1360*1250
Company Profile
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Products catalogues

1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 3
1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 4
1 Tons Freshwater Flake Ice Machine Commercial 380V 220V 5
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
