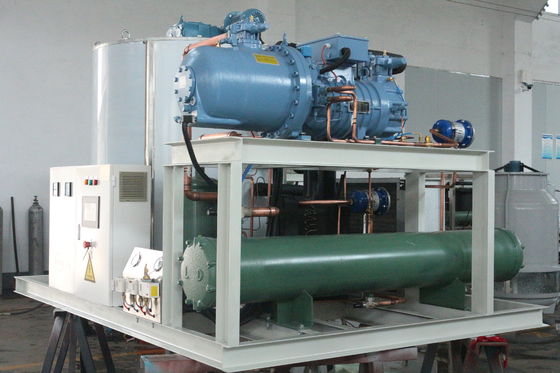

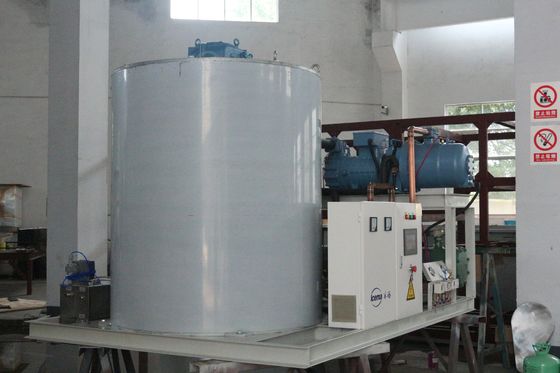

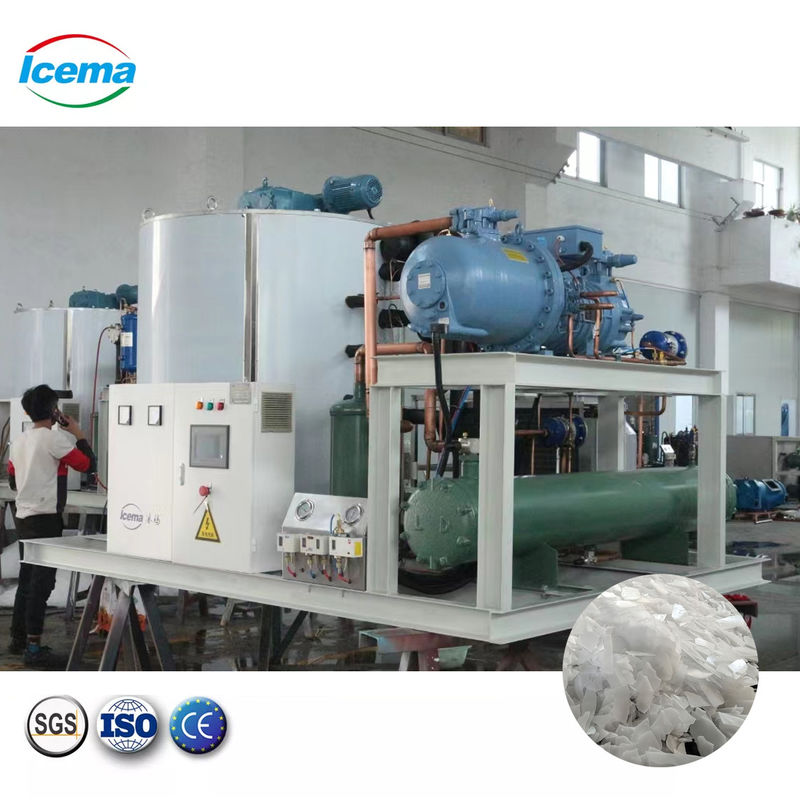

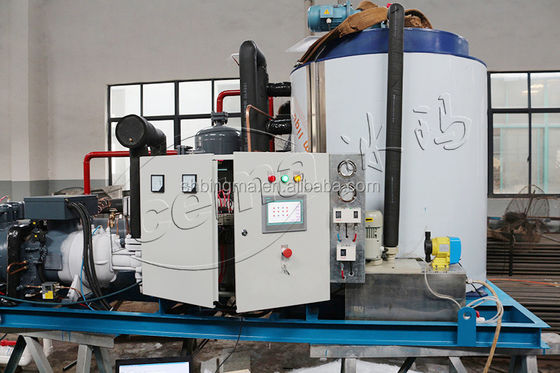

300KG-40T Industrial Flake Ice Machine Snow Ice Flakes Machine For Fresh Seafood Fishery

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Icema
Certification:	CE
Model Number:	BMF400

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$3,500.00/pieces >=1 pieces
Packaging Details:	Wooden case/container
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 Set/Sets per Month

Contact Now

Detailed Product Description

Ambient Temperature:	25℃	Capacity:	5-20 Tons/day
Compressor:	Copeland/Bitzer	Ice Shape:	Flake
Ice Size:	2-4mm	Ice Temperature:	-8℃
Ice Thickness:	1.5-2.2mm	Material:	Stainless Steel
Name:	Freshwater Flake Ice Machine	Power:	3.0-4.0 KW
Highlight:	40T industrial flake ice machine , 300KG industrial flake ice machine , R404A snow ice flakes machine

ICEMA 300KG~40T Ice Flake Making Machine Snow Flake Machine for fresh seafood fishery

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(MM)	machine size(LWHmm)
BMF03	300kg	2.1	1.9	4.3	R22/R404A	1.5	1.5-2.5mm	950800680
BMF05	500kg	3.5	2.45	5.6	R22/R404A	2.1	1.5-2.5mm	950800810
BMF08	800kg	5	3.5	7	R22/R404A	2.9	1.5-2.5mm	1320970850
BMF10	1T	6.35	4.33	8.66	R22/R404A	3.6	1.5-2.5mm	1320970900
BMF20	2T	12.9	8.66	17.3	R22/R404A	5.88	1.5-2.5mm	150011001050
BMF30	3T	21.5	13	26	R22/R404A	9.7	1.5-2.5mm	174513601250
BMF50	5T	35.0	17.8	35.7	R22/R404A	14.5	1.5-2.5mm	220015001600
BMF80	8T	53.8	29.2	58.5	R22/R404A	24.6	1.5-2.5mm	274019001690
BMF100	10T	65	34.7	69.4	R22/R404A	31	1.5-2.5mm	274019001830
BMF150	15T	95.2	49.6	99.2	R22/R404A	44.8	1.5-2.5mm	274021002320
BMF200	20T	133	64.6	129.3	R22/R404A	57.2	1.5-2.5mm	295021002260
BMF250	25T	165.7	87.7	175.4	R22/R404A	78.5	1.5-2.5mm	295021002450
BMF300	30T	185	93.5	187	R22/R404A	84.3	1.5-2.5mm	430021002520
BMF350	35T	228	124	248	R22/R404A	111.5	1.5-2.5mm	430021002690
BMF400	40T	260	168	336	R22/R404A	156	1.5-2.5mm	430021002890

25Ton Flake Ice Machine

Voltage: 380v 3p 50h (can be customized)

Cooling Method:Water Cooling/Air Cooling/Evaporative cooling

Compressor:German Bizter/Itay Refcomp or other brand

Evaporator: carbon steel with chrome plating/SUS304/SUS316L

Type:Fresh Water Flake Ice Machine/Sea Water Flake Ice Machine

If you need cold room,please contact sales

The inner cavity of the evaporator adopts the structure of the rib spiral surrounding the welding groove, and the strength of the inner wall is further enhanced. The inner cavity is strictly tested by a sound wave thickness gauge, and the wall thickness is uniform to ensure that the evaporator is not deformed

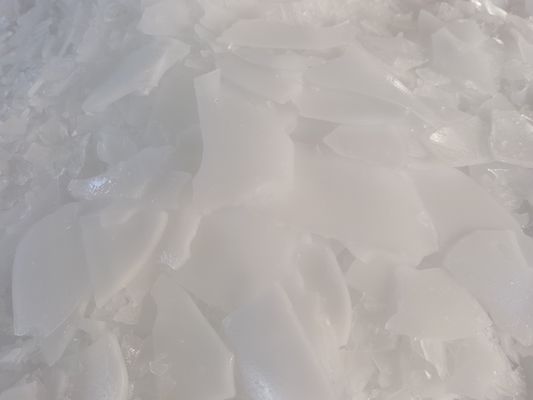

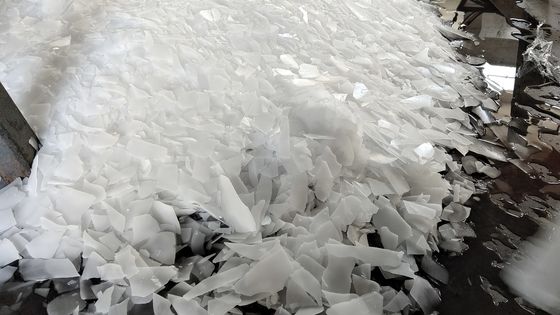

ICE DETAILS

Due to the flat shape of flake ice, it has a larger surface area than other ice shapes of the same weight. The larger the contact surface area, the better the cooling effect.

Feature

1.low production cost 2.Excellent folding food insurance 3.Fold and mix thoroughly 4.Convenient storage and transportation

PRODUCT DETAILS

Ice Storage

For small flake ice machines, we are mainly equipped with these two types of ice storages. The hangars are integrated. When the machine produces ice, it will drop directly into the ice storage below. It is very convenient and can also maintain temperature and isolation from the outside world.

For large flake ice machines, we can customize ice storage

Ice skate

Spiral type hob, low resistance, low loss, no noise, and even ice production.

Evaporator

Fixed and static vertical design, reducing wear and tear, high sealing, effectively preventing refrigerant leakage. High-quality 304 stainless steel material and automatic argon-fluoride welding to improve strength and precision

Flake ice machine Parameters

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(kg/pc)	machine size(LWHmm)
BMF03	300kg	2.1	1.9	4.3	R22/R404A	1.5	1.5-2.5mm	950800680
BMF05	500kg	3.5	2.45	5.6	R22/R404A	2.1	1.5-2.5mm	950800810
BMF08	800kg	5	3.5	7	R22/R404A	2.9	1.5-2.5mm	1320970850
BMF10	1T	6.35	4.33	8.66	R22/R404A	3.6	1.5-2.5mm	1320970900
BMF20	2T	12.9	8.66	17.3	R22/R404A	5.88	1.5-2.5mm	150011001050
BMF30	3T	21.5	13	26	R22/R404A	9.7	1.5-2.5mm	174513601250
BMF50	5T	35.0	17.8	35.7	R22/R404A	14.5	1.5-2.5mm	220015001600
BMF80	8T	53.8	29.2	58.5	R22/R404A	24.6	1.5-2.5mm	274019001690
BMF100	10T	65	34.7	69.4	R22/R404A	31	1.5-2.5mm	274019001830
BMF150	15T	95.2	49.6	99.2	R22/R404A	44.8	1.5-2.5mm	274021002320
BMF200	20T	133	64.6	129.3	R22/R404A	57.2	1.5-2.5mm	295021002260
BMF250	25T	165.7	87.7	175.4	R22/R404A	78.5	1.5-2.5mm	295021002450
BMF300	30T	185	93.5	187	R22/R404A	84.3	1.5-2.5mm	430021002520
BMF350	35T	228	124	248	R22/R404A	111.5	1.5-2.5mm	430021002690
BMF400	40T	260	168	336	R22/R404A	156	1.5-2.5mm	430021002890

OUR COMPANY

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal equipment.We have our own processing plants in Shanghai, Suzhou and Jiangsu. Icema integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Relative Products

Intelligent Control

APPLICATION FIELD

Flake Ice Application	1.Fishery	5.Vegetable delivery and preservation
		2.Aquatic product processing	6.Pharmaceutical industry
		3.Food processing	7.Concrete mixing
		4.Poultry meat processing	8.Concrete mixing

CLIENT FEEDBACK

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.

Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?

Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.

Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)

Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
