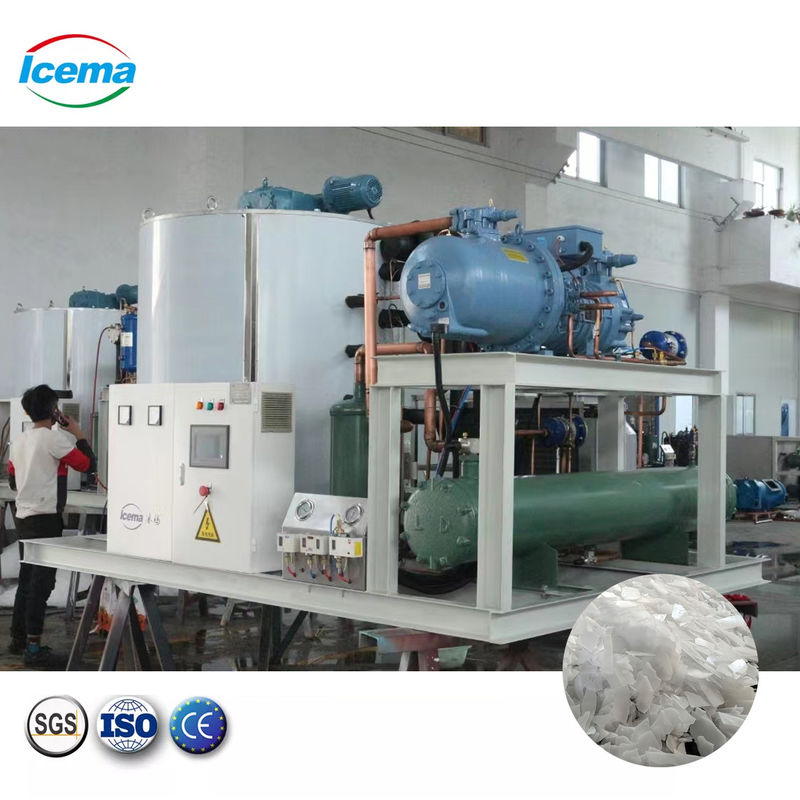

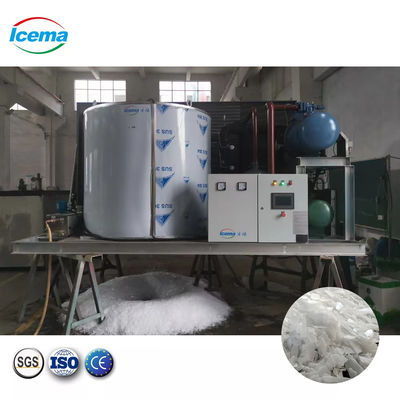

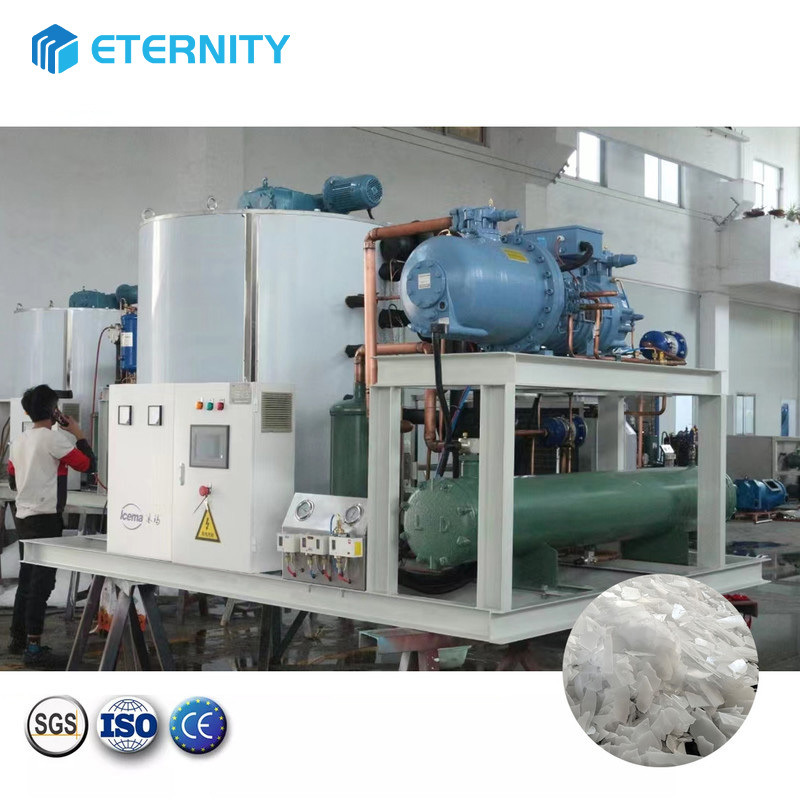

20 Ton Industrial Freshwater Flake Ice Machine 220V

Product Details

Place of Origin: Shanghai, China

Brand Name: Icema

Certification: CE

Model Number: Flack ice machine

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: $9,000.00/pieces >=1 pieces

Packaging Details: Wooden case/container

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1000 Set/Sets per Month

Get Best Price
Highlight:

Icema Industrial Freshwater Flake Ice Machine

,

Industrial Freshwater Flake Ice Machine Icema

,

Icema 220V ice machine flake ice

Compressor Brand:
Copeland/Danfoss
Condenser:
Finned Copper Tube
Controller:
Microcomputer Control
Dimension:
1050*800*1450mm
Evaporator:
Stainless Steel
Ice Production Capacity:
200-1000kg/24h
Ice Shape:
Flake
Ice Thickness:
1.5-2.2mm
Power:
2.2-4.5KW
Ice Thickness:
1.5mm(1.5mm-2.2mm Adjustable)
Compressor Brand:
Copeland/Danfoss
Condenser:
Finned Copper Tube
Controller:
Microcomputer Control
Dimension:
1050*800*1450mm
Evaporator:
Stainless Steel
Ice Production Capacity:
200-1000kg/24h
Ice Shape:
Flake
Ice Thickness:
1.5-2.2mm
Power:
2.2-4.5KW
Ice Thickness:
1.5mm(1.5mm-2.2mm Adjustable)
20 Ton Industrial Freshwater Flake Ice Machine 220V
ICEMA 20ton Snow Flake Ice Machine Industrial Ice Flake Making machine for fishery shipping food fresh
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(MM) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890

20 Ton Industrial Freshwater Flake Ice Machine 220V 0

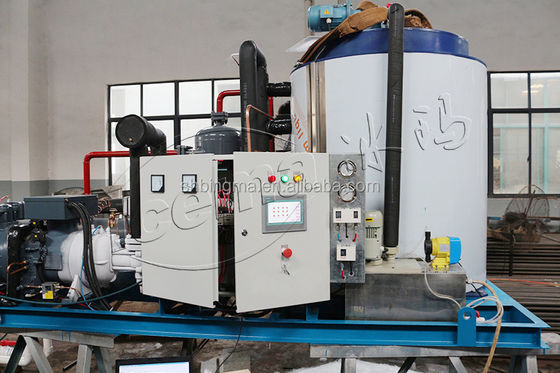

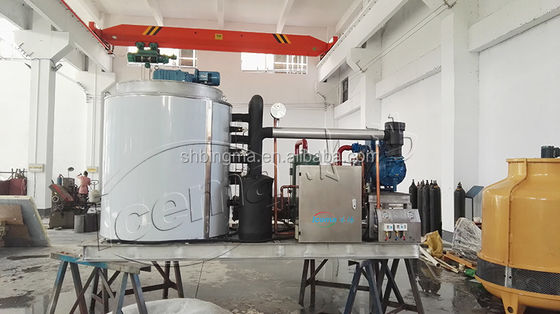

20Ton Flake Ice Machine
Voltage: 380v 3p 50h (can be customized)
Cooling Method:Water Cooling/Air Cooling/Evaporative cooling
Compressor:German Bizter/Itay Refcomp or other brand
Evaporator: carbon steel with chrome plating/SUS304/SUS316L
Type:Fresh Water Flake Ice Machine/Sea Water Flake Ice Machine
If you need cold room,please contact sales
The inner cavity of the evaporator adopts the structure of the rib spiral surrounding the welding groove, and the strength of the inner wall is further enhanced. The inner cavity is strictly tested by a sound wave thickness gauge, and the wall thickness is uniform to ensure that the evaporator is not deformed
20 Ton Industrial Freshwater Flake Ice Machine 220V 1
ICE DETAILS
20 Ton Industrial Freshwater Flake Ice Machine 220V 2


Due to the flat shape of flake ice, it has a larger surface area than other ice shapes of the same weight. The larger the contact surface area, the better the cooling effect.

      Feature

1.low production cost 2.Excellent folding food insurance 3.Fold and mix thoroughly 4.Convenient storage and transportation
20 Ton Industrial Freshwater Flake Ice Machine 220V 3
PRODUCT DETAILS

Ice Storage

For small flake ice machines, we are mainly equipped with these two types of ice storages. The hangars are integrated. When the machine produces ice, it will drop directly into the ice storage below. It is very convenient and can also maintain temperature and isolation from the outside world.





For large flake ice machines, we can customize ice storage
20 Ton Industrial Freshwater Flake Ice Machine 220V 4
20 Ton Industrial Freshwater Flake Ice Machine 220V 5
Ice skate

Spiral type hob, low resistance, low loss, no noise, and even ice production.




Evaporator

Fixed and static vertical design, reducing wear and tear, high sealing, effectively preventing refrigerant leakage. High-quality 304 stainless steel material and automatic argon-fluoride welding to improve strength and precision
20 Ton Industrial Freshwater Flake Ice Machine 220V 6
Flake ice machine Parameters
Model output
(kg)
Cooling
(kw)
input (kw) Rated current (A) refrigerant compressor power(kw) ice size(kg/pc) machine size(L*W*Hmm)
BMF03 300kg 2.1 1.9 4.3 R22/R404A 1.5 1.5-2.5mm 950*800*680
BMF05 500kg 3.5 2.45 5.6 R22/R404A 2.1 1.5-2.5mm 950*800*810
BMF08 800kg 5 3.5 7 R22/R404A 2.9 1.5-2.5mm 1320*970*850
BMF10 1T 6.35 4.33 8.66 R22/R404A 3.6 1.5-2.5mm 1320*970*900
BMF20 2T 12.9 8.66 17.3 R22/R404A 5.88 1.5-2.5mm 1500*1100*1050
BMF30 3T 21.5 13 26 R22/R404A 9.7 1.5-2.5mm 1745*1360*1250
BMF50 5T 35.0 17.8 35.7 R22/R404A 14.5 1.5-2.5mm 2200*1500*1600
BMF80 8T 53.8 29.2 58.5 R22/R404A 24.6 1.5-2.5mm 2740*1900*1690
BMF100 10T 65 34.7 69.4 R22/R404A 31 1.5-2.5mm 2740*1900*1830
BMF150 15T 95.2 49.6 99.2 R22/R404A 44.8 1.5-2.5mm 2740*2100*2320
BMF200 20T 133 64.6 129.3 R22/R404A 57.2 1.5-2.5mm 2950*2100*2260
BMF250 25T 165.7 87.7 175.4 R22/R404A 78.5 1.5-2.5mm 2950*2100*2450
BMF300 30T 185 93.5 187 R22/R404A 84.3 1.5-2.5mm 4300*2100*2520
BMF350 35T 228 124 248 R22/R404A 111.5 1.5-2.5mm 4300*2100*2690
BMF400 40T 260 168 336 R22/R404A 156 1.5-2.5mm 4300*2100*2890
OUR COMPANY
20 Ton Industrial Freshwater Flake Ice Machine 220V 7
20 Ton Industrial Freshwater Flake Ice Machine 220V 8
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
20 Ton Industrial Freshwater Flake Ice Machine 220V 9
We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal equipment.We have our own processing plants in Shanghai, Suzhou and Jiangsu. Icema integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries.
We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
20 Ton Industrial Freshwater Flake Ice Machine 220V 9
Relative Products

Intelligent Control
20 Ton Industrial Freshwater Flake Ice Machine 220V 11
APPLICATION FIELD

Flake Ice Application
1.Fishery
5.Vegetable delivery and preservation

2.Aquatic product processing
6.Pharmaceutical industry

3.Food processing
7.Concrete mixing

4.Poultry meat processing
8.Concrete mixing
20 Ton Industrial Freshwater Flake Ice Machine 220V 12
20 Ton Industrial Freshwater Flake Ice Machine 220V 13
CLIENT
20 Ton Industrial Freshwater Flake Ice Machine 220V 14
Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.

Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?

Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.

Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)

Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
