1 Tons Commercial Seawater Flake Ice Machine 400kg 380V

Brand Name:	ICEMA
Model Number:	BMSF10
MOQ:	1 SET
Price:	$3,200.00/sets 1-1 sets
Delivery Time:	20 DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

Output:

1T/24H

Cooling Capacity:

6.5KW

Ice Temp:

-12℃

Input Power:

5.9KW

Rated Current:

11.8A

Compressor:

Piston Compressor

Compressor Power:

4.6KW

Condensation Method:

Ari/Water Cooling

The Refeigerant:

R404A/R507A

Machine Size:

950*800*680mm

Packaging Details:

Wooden case or plywood box or container or as per requests
High quality 2 tons flake ice machine for Mozambique

Supply Ability:

10 Unit/Units per Month

Highlight:

1 Tons Seawater Flake Ice Machine

Seawater Flake Ice Machine 400kg

380V 1 ton flake ice machine

Product Description

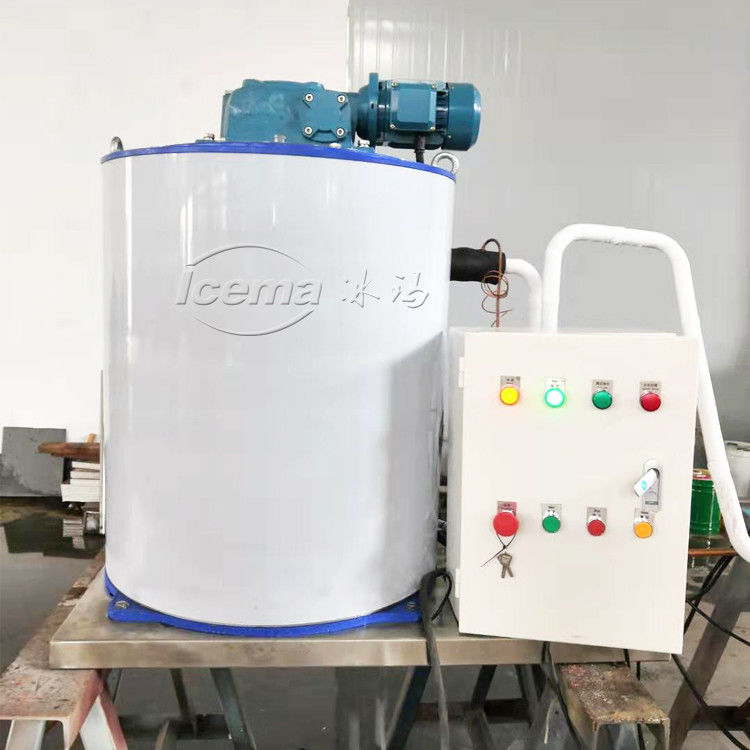

Automatic Sea water Flake Ice Machine 1Tons Commercial Slat Flake Ice Maker For Farm Sea For Food Fish Farm

Model	output (kg)	Cooling (kw)	input (kw)	Rated current (A)	refrigerant	compressor power(kw)	ice size(mm)	machine size(LWHmm)
BMSF10	1T	6.5	5.9	11.8	R507A/R404A	4.6	1.5-2.5mm	1320970680
BMSF20	2T	12.7	11.3	22.6	R507A/R404A	8.6	1.5-2.5mm	150011001050
BMSF30	3T	18.4	15.8	31.6	R507A/R404A	12.3	1.5-2.5mm	174513601250
BMSF50	5T	32.8	27.7	55.4	R507A/R404A	22.7	1.5-2.5mm	220015001600
BMSF80	8T	49	41	82	R507A/R404A	36	1.5-2.5mm	274019001690
BMSF100	10T	67.5	57.8	115	R507A/R404A	52.5	1.5-2.5mm	274019001830

Products Description

FLAKE ICE MACHINE DESCRIPTION

This is an irregular tape -like ice. Different size; the largest slice size is about 30.5mm x 30.5 mm, and the thickness is 1.5 mm-2.5 mm. Because of its dryness, it is safely used through the characteristics of cooling materials, so it is widely used in hotels, supermarkets, chemical industries, buildings and deep -sea fishing. The frozen principle of the thin ice machine is very simple. Put the city water directly into the cold water tank of the assembly unit. When the refrigeration system starts to work, the closed -loop refrigerant exchange the outdoor closed -loop heat exchange water to the water tank, and pump the water into the water into the water allocation. In the pot The circulating pump driven by the reducing device, the inner wall of the water flowing uniformly in the pot, the refrigerant in the refrigerant system is evaporated through the ring in the ring in the loop in the evaporator, and the heat exchange with the water on the wall and the water on the wall. Replace calories to absorb a large amount of heat results. The water flows over the surface of the wall of the internal evaporator, cools sharply below the freezing point, and instantly frozen to the ice. Some water film is connected to the bottom of the evaporator, then recycled in the water, and then recycled, and then in the water. Water recycling. The inner wall reaches a certain thickness, and the spiral ice skates are driven to the inner wall to peel off the ice, thereby forming an boring piece, falling into the ice cubes at the bottom of the boring, and stored.

FUTURES AND SUITABLE INDUSTRY

1 Tons Commercial Seawater Flake Ice Machine 400kg 380V 0

Features:
1. Less space,, low power consumption, no special requirements of the installation environment;
2. The failure rate is low, do not need professionals staff to control;
3. The operation is simple, one-click operation;
4. The ice can be made in one minute , don't need to wait for a long time;
5. Configurable standard cold storage(if customers need it, please tell us in advance)

Suitable industry:
1. Seafood showing in the hotel, vegetables fresh-keeping, special packaging for the special food;
2. Seafood showing and transporting in the supermarket, , vegetable fresh-keeping and transporting;
3. The dietary supplementation of food factory, Raw material storing, food precooling;
4. The lives stock precooling ,fresh keeping ,freezing and transporting after killing in the meat processing plant ;

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMF03	0.3T	2.1KW	1.9KW	4.3A	1.5KW	R22/R404A	Water	950800 *680
BMF05	0.5T	3.5KW	2.45KW	5.6A	2.1KW	R22/R404A	Water	950800 810
BMF08	0.8T	5KW	3.5KW	7A	2.9KW	R22/R404A	Water	1320970850
BMF10	1T	6.35KW	4.33KW	8.66A	3.6KW	R22/R404A	Air/ Water	1320970900
BMF20	2T	12.9KW	8.66KW	17.3A	5.88KW	R22/R404A	Air/ Water	150011001050
BMF30	3T	21.5KW	13KW	26A	9.7KW	R22/R404A	Air/ Water	174513601250

Company Profile

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

Products catalogues

FAQ

1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading. 1 Tons Commercial Seawater Flake Ice Machine 400kg 380V 6
