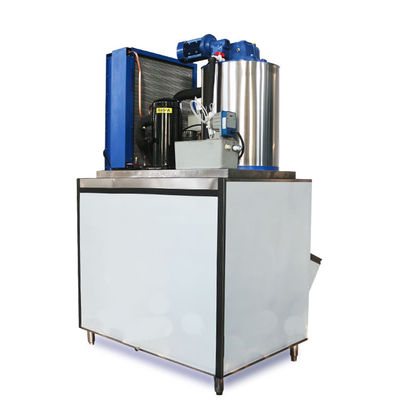

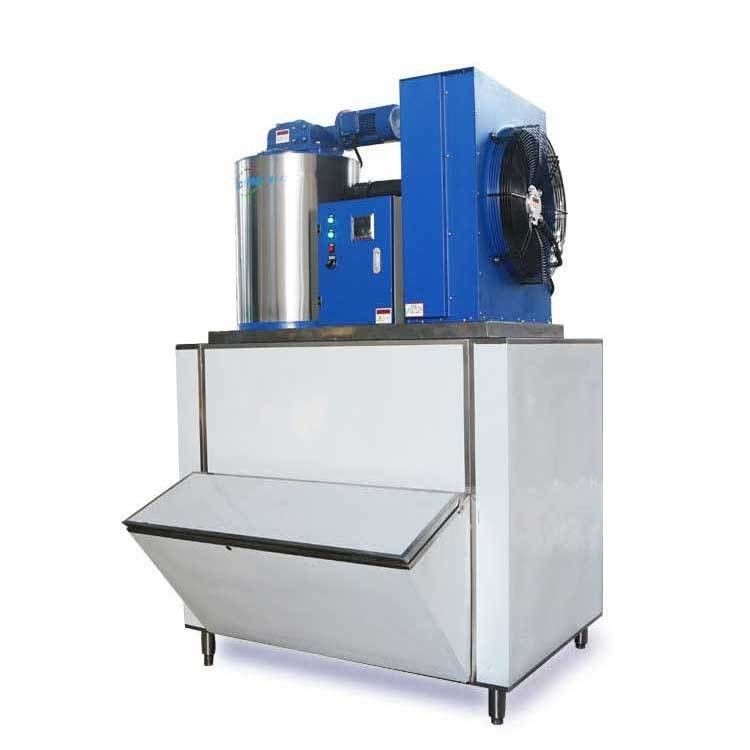

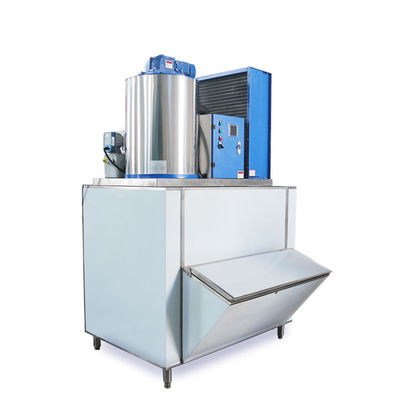

Water Cooling Condensation Way 1000kg Flake Ice Making Machine with Ice Storage Bin

Product Details:

Place of Origin:	JiangSu
Brand Name:	Icema

Payment & Shipping Terms:

Price:	$3,900.00/sets 1-4 sets
Packaging Details:	Paper case, wooden case, or requirements of customer
Supply Ability:	20 Set/Sets per Month

Contact Now

Detailed Product Description

Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C	Condition:	New
Ice Shape:	Flake Ice	Voltage:	380v3P50Hz
Power:	4.33kw	Dimension(LWH):	1320970900mm
Weight:	200 KG	Warranty:	1.5 Years
Key Selling Points:	Easy To Operate	Ice Storage Capacity:	400kg, 500KG
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Pressure Vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:	Emerson, Other, Frascold, Bitzer, Copeland, Refcomp	Application:	Commercial
Production:	1000kg	Refrigerating Capacity:	7.0
Input Power:	5.37kw	Rated Current:	10.6A
Temperature:	-8	Compressor Power:	4.8kw
Refrigerant:	R22/R404A Or As Per Requests	Condensation Way:	Air/water Cooling
Ice Storage:	Have	Compressor:	Bitzer/Copeland
Port:	Shanghai,ningbo
Highlight:	1000kg Flake Ice Making Machine

Product Details

300KG FLAKE ICE MACHINE

500KG FLAKE ICE MACHINE

1T FLAKE ICE MACHINE

2T FLAKE ICE MACHINE

Main Accessories

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size *LWH (mm)*
BMF03	0.3T	2.1KW	1.9KW	4.3A	1.5KW	R22/R404A	Water	950800 *680
BMF05	0.5T	3.5KW	2.45KW	5.6A	2.1KW	R22/R404A	Water	950800 810
BMF08	0.8T	5KW	3.5KW	7A	2.9KW	R22/R404A	Water	1320970850
BMF10	1T	6.35KW	4.33KW	8.66A	3.6KW	R22/R404A	Air/ Water	1320970900
BMF20	2T	12.9KW	8.66KW	17.3A	5.88KW	R22/R404A	Air/ Water	150011001050
BMF30	3T	21.5KW	13KW	26A	9.7KW	R22/R404A	Air/ Water	174513601250

Products Description

Main Features

1. The ice rake machine adopts modular design, which is easy to assemble and maintain;

the parts are processed by CNC machine tools with high precision and avoid welding defects.

2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.

Flake Ice Applications

The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.

Products catalogues

Company Profile

Certification&Partners

FAQ

1. Can I customize the machine?
You can choose output, material, accessories brand, etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Peak season requires longer production time.

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
