Home > products > Freshwater Flake Ice Machine > 3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine

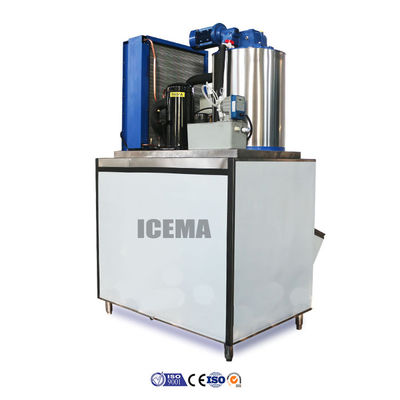

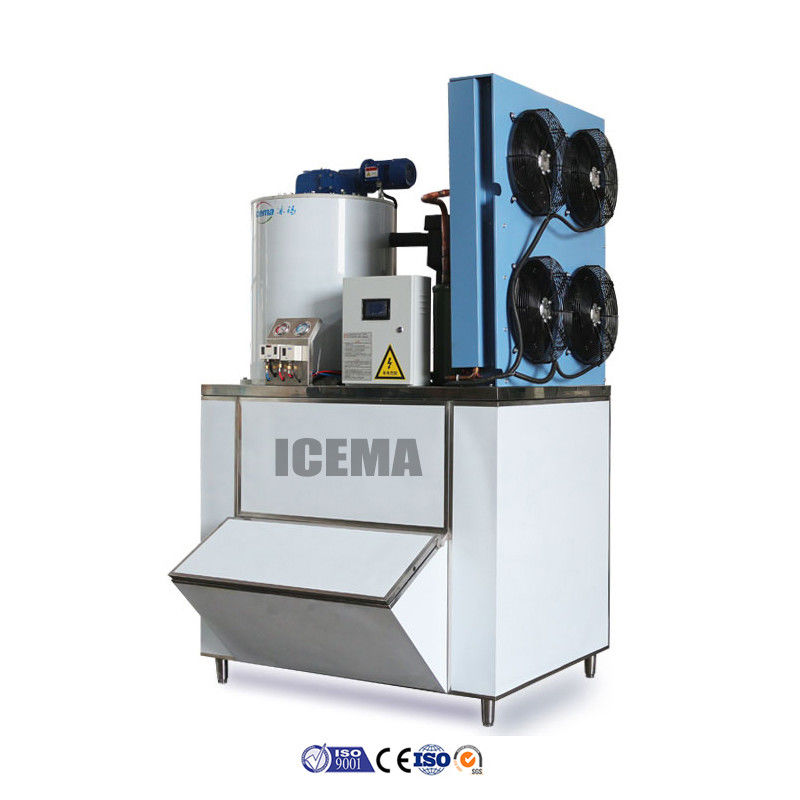

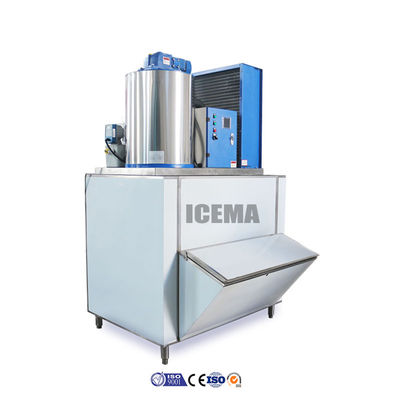

3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine

Product Details

Place of Origin: CHINA ShangHai

Payment & Shipping Terms

Price: $3,900.00/tons 1-1 tons

Get Best Price
Highlight:
Applicable Industries:
Raw Material Preservation, Seafood Display, Food Pre-cooling
Condition:
New
Ice Shape:
Customization
Voltage:
380v/3p/50hz 60hz Or 220v/3p/60hz
Power:
36.5KW
Dimension(L*W*H):
1320*970*900
Weight:
1000 KG
Warranty:
1.5 Years
Key Selling Points:
Automatic
Ice Storage Capacity:
1000KG
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Other, Compressors, Condensers, Evaporators, Gearboxes, Ice Knives, Expansion Valves, Ice Storage
Compressor Brand:
Frascold, Bitzer, Refcomp, Hanbell
Application:
Industrial
Model:
BMF10
Production/T:
10.0
Refrigerating Capacity:
6.35
Input Power:
36.5
Related CurrentA:
8.66A
Temperature:
-8
Compresssor Power KW:
3.6KW
Refrigerant:
R22/R404A/R507A
Ice Storage:
Available
Material:
Assignable
Applicable Industries:
Raw Material Preservation, Seafood Display, Food Pre-cooling
Condition:
New
Ice Shape:
Customization
Voltage:
380v/3p/50hz 60hz Or 220v/3p/60hz
Power:
36.5KW
Dimension(L*W*H):
1320*970*900
Weight:
1000 KG
Warranty:
1.5 Years
Key Selling Points:
Automatic
Ice Storage Capacity:
1000KG
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Other, Compressors, Condensers, Evaporators, Gearboxes, Ice Knives, Expansion Valves, Ice Storage
Compressor Brand:
Frascold, Bitzer, Refcomp, Hanbell
Application:
Industrial
Model:
BMF10
Production/T:
10.0
Refrigerating Capacity:
6.35
Input Power:
36.5
Related CurrentA:
8.66A
Temperature:
-8
Compresssor Power KW:
3.6KW
Refrigerant:
R22/R404A/R507A
Ice Storage:
Available
Material:
Assignable
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 0
Product Details

300KG FLAKE ICE MACHINE

3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 1
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 2

500KG FLAKE ICE MACHINE

3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 3
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 4

1T FLAKE ICE MACHINE

3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 5
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 6

2T FLAKE ICE MACHINE

3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 7
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 8
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 9

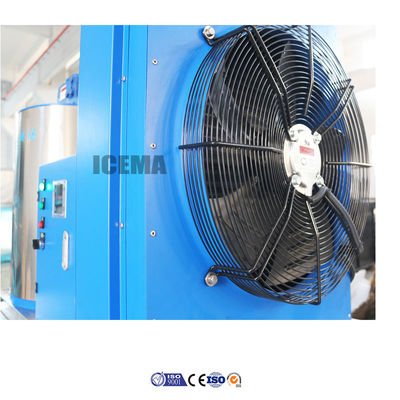

Main Accessories
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 10
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 11
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 12
Product Paramenters
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 13
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 14
Model
Output
Refrigerate Capacity
Total Power
Rated Current
Compressor Power
Refrigerant
Cooling Way
Unit Size
 L*W*H (mm)
BMF03
0.3T
2.1KW
1.9KW
4.3A
1.5KW
R22/R404A
 Water
950*800* *680
BMF05
0.5T
3.5KW
2.45KW
5.6A
2.1KW
R22/R404A
 Water
950*800* 810
BMF08
0.8T
5KW
3.5KW
7A
2.9KW
R22/R404A
Water
1320*970*850
BMF10
1T
6.35KW
4.33KW
8.66A
3.6KW
R22/R404A
Air/ Water
1320*970*900
BMF20
2T
12.9KW
8.66KW
17.3A
5.88KW
R22/R404A
Air/ Water
1500*1100*1050
BMF30
3T
21.5KW
13KW
26A
9.7KW
R22/R404A
Air/ Water
1745*1360*1250
Products Description
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 15

Main Features

1. The ice rake machine adopts modular design, which is easy to assemble and maintain;
the parts are processed by CNC machine tools with high precision and avoid welding defects.
2. Using high-precision bearings imported from Japan, the mechanism runs smoothly and has long service life.
3. One key to start the ice storage mode. After the ice cubes fall into the ice storage, the ice rake automatically runs according to the signal instructions provided by the sensor, and automatically stops when the ice storage reaches the maximum.
4. One-button start of the ice release mode, the ice blocking door opens automatically, the ice rake runs automatically according to the signal instruction provided by the sensor, and automatically stops after the ice output is completed, and the ice blocking door returns to its position.
5. Smart electric control screen, simple and easy to use.
6.Monitoring equipment is installed in the cold storage, which can check the working conditions of the equipment in real time,which is convenient for maintenance and management and safe production.
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 16

Flake Ice Applications

The ice flake machine is a leader in fast and large-scale refrigeration projects, and is widely used in supermarket food
preservation, fishery protection, food processing, concrete cooling, etc.
Products catalogues
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 17
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 18
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 19
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 20
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 21
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 22
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 23
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 24
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 25
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 26
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 27
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 28
Company Profile
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 29
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 30
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 31
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 32
Certification&Partners
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 33
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 34
3.6KW Industrial Portable Ice Flake Maker for Fish 1T/2T/3T/5T Flake Ice Machine 35
FAQ
1. Can I customize the machine?
You can choose output, material, accessories brand, logo etc.

2. Are the prices on the website accurate?
No. Because the price of the machine is affected by many factors, the price of the website is not very accurate.

3. How do I get a more accurate price?
Send a Inuiry to slaesman and Tell the salesman your requirements and they will give you a more accurate price.

4. How long will it take to make the machines?
The production time required for machines of different output is different. Normal production time:15-30days

5. Is there any guarantee for my payment?
In Alibaba, we paid the margin. This is to protect your rights. In addition, After you receive the goods, Alibaba will release your payment to us.

6. How do I receive the goods?
After we reach an agreement, I will entrust a freight forwarder to deliver the goods to your designated port. When the goods arrive at the port, you can go to the port to pick them up with the bill of lading.
