Product Details
Place of Origin: Jiangsu, China
Brand Name: ICEMA
Payment & Shipping Terms
Price: $12,286.00/pieces 1-4 pieces
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Condition: |
New |
Ice Shape: |
Block |
Voltage: |
220V/380V |
Power: |
11KW, 11KW |
Dimension(L*W*H): |
5000*1800*2480mm |
Weight: |
400 KG |
Warranty: |
1 Year |
Key Selling Points: |
Stainless Steel |
Ice Storage Capacity: |
200KG |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Pump, PLC |
Compressor Brand: |
Emerson, Bitzer, Maneurop, Daikin |
Application: |
Industrial |
Model: |
BMB20 |
Output: |
2T/24H |

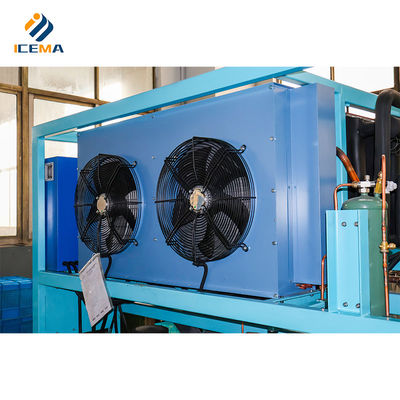

Condenser: |
Air/water Cooling |
Air/water Cooling: |
R404A/R22 |
Rated Current: |
21.4A |
Rated Voltage: |
220V/380V |
Block Ice A: |
380x180x900 Mm;50kg |
Block Ice B: |
320x120x800 Mm ;25kg |
Machine Size: |
5000*1800*2480mm |
Applicable Industries: |
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
Condition: |
New |
Ice Shape: |
Block |
Voltage: |
220V/380V |
Power: |
11KW, 11KW |
Dimension(L*W*H): |
5000*1800*2480mm |
Weight: |
400 KG |
Warranty: |
1 Year |
Key Selling Points: |
Stainless Steel |
Ice Storage Capacity: |
200KG |
Machinery Test Report: |
Provided |
Video Outgoing-inspection: |
Provided |
Warranty Of Core Components: |
1 Year |
Core Components: |
Pressure Vessel, Pump, PLC |
Compressor Brand: |
Emerson, Bitzer, Maneurop, Daikin |
Application: |
Industrial |
Model: |
BMB20 |
Output: |
2T/24H |
Condenser: |
Air/water Cooling |
Air/water Cooling: |
R404A/R22 |
Rated Current: |
21.4A |
Rated Voltage: |
220V/380V |
Block Ice A: |
380x180x900 Mm;50kg |
Block Ice B: |
320x120x800 Mm ;25kg |
Machine Size: |
5000*1800*2480mm |
Model | Output(T) | Cooling capacity (kw) | Input power (kw) | Rated current (A) | lce temp （℃） | Compressor power (kw) | Condensation | Machine Size L*W*H(mm) |
BMB20 | 2T | 14 | 7.7 | 14.3 | -8 | 6.43 | Air/water | 4150*1650*2480 |
BMB30 | 3T | 21.5 | 11 | 21.4 | -8 | 9.74 | Air/water | 5000*1800*2480 |
BMB50 | 5T | 35.9 | 18 | 35.6 | -8 | 16.2 | Air/water | 5700*2200*2480 |
BMB80 | 8T | 56.7 | 30.7 | 61.4 | -8 | 27 | Air/water | 6300*2200*2480 |
BMB100 | 10T | 77.3 | 37.5 | 75 | -8 | 33.7 | Air/Evaporative | 6450*2200*2530 |
BMB120 | 12T | 85 | 41.35 | 82.7 | -8 | 37.3 | Air/Evaporative | 9000*2250*2530 |
BMB150 | 15T | 106.8 | 59.3 | 116.6 | -8 | 49.3 | Air/Evaporative | 11600*2250*2530 |
BMB200 | 20T | 147 | 85.8 | 170.6 | -8 | 75.1 | Air/Evaporative | 12490*2750*2530 |
BMB250 | 25T | 210 | 92.4 | 184.8 | -8 | 83.2 | Air/Evaporative | 13900*3000*2530 |
BMB300 | 30T | 230.8 | 107 | 214 | -8 | 92 | Air/Evaporative | 16300*3000*2530 |
Q1-What is the lifespan of the machine? | ||||||||
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine. | ||||||||
Q2-What is your payment method? | ||||||||
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you? | ||||||||
Q3-Which brands of compressors do you use? | ||||||||
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on. | ||||||||
Q4-What type of refrigerant are you using? | ||||||||
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22) | ||||||||
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received? | ||||||||
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use. | ||||||||
