Home > products > Direct Cooling Block Ice Machine > Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm

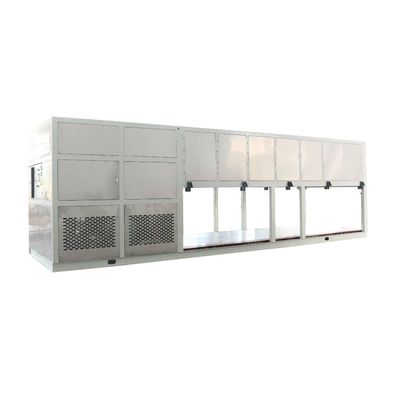

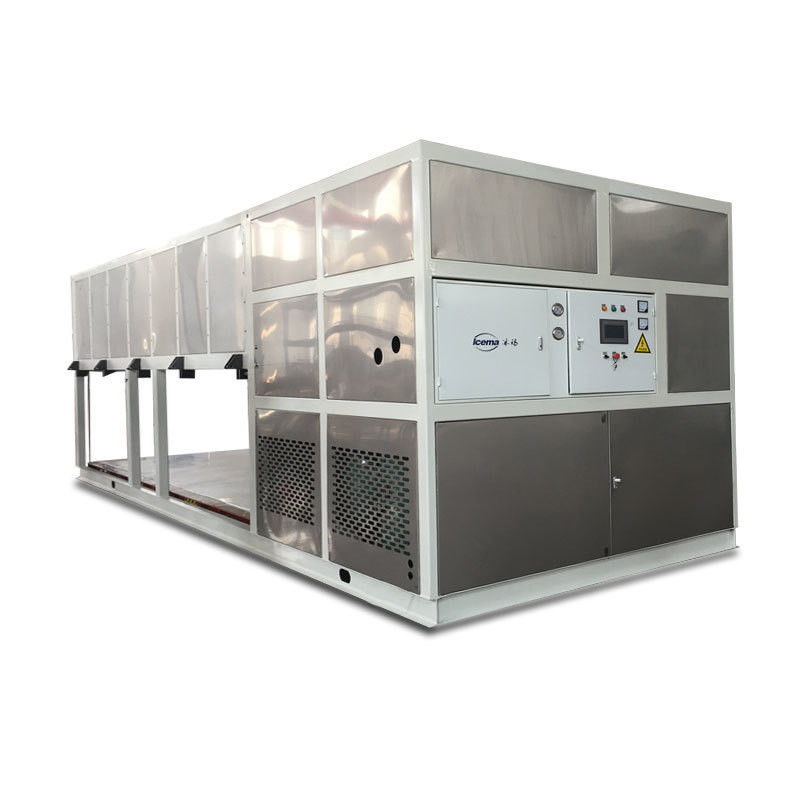

Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Payment & Shipping Terms

Price: $55,799.00/pieces 1-4 pieces

Get Best Price
Highlight:
Applicable Industries:
Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops
Condition:
New
Ice Shape:
Block
Voltage:
3P/380V/50HZ
Power:
59.3KW, 59.3KW
Dimension(L*W*H):
8670*2750*2690mm
Weight:
400 KG
Warranty:
1.5 Years
Key Selling Points:
Stainless Steel
Ice Storage Capacity:
Other
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Bitzer, Maneurop, Daikin
Application:
Industrial
Model:
BMB150
Output:
15T/24H
Condenser:
Air/water Cooling
Air/water Cooling:
R404A/R22
Rated Current:
116.6A
Rated Voltage:
3P/380V/50HZ
Block Ice A:
380x180x900 Mm;50kg
Block Ice B:
320x120x800 Mm ;25kg
Machine Size:
8670*2750*2690mm
Applicable Industries:
Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops
Condition:
New
Ice Shape:
Block
Voltage:
3P/380V/50HZ
Power:
59.3KW, 59.3KW
Dimension(L*W*H):
8670*2750*2690mm
Weight:
400 KG
Warranty:
1.5 Years
Key Selling Points:
Stainless Steel
Ice Storage Capacity:
Other
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1.5 Years
Core Components:
Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:
Emerson, Bitzer, Maneurop, Daikin
Application:
Industrial
Model:
BMB150
Output:
15T/24H
Condenser:
Air/water Cooling
Air/water Cooling:
R404A/R22
Rated Current:
116.6A
Rated Voltage:
3P/380V/50HZ
Block Ice A:
380x180x900 Mm;50kg
Block Ice B:
320x120x800 Mm ;25kg
Machine Size:
8670*2750*2690mm
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm
PRODUCT DESCRIPTION
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 0

Model:ETD-B20
Ice Production:20000kg/24h
Cooling Capacity : 14kw
Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Net Weight:2860kg
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months



Features

1. Small footprint, one-time icing, saving labor and time;
2. Fully automatic ice making, ice melting and deicing process, high efficiency;
3. Modular design, convenient on-site installation, and convenient later movement;
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 1
Product Parameters
Model
Output(T)
Cooling capacity (kw)
Input power (kw)
Rated current (A)
lce temp (℃)
Compressor power (kw)
Condensation
Machine Size L*W*H(mm)
BMB20
2T
14
7.7
14.3
-8
6.43
Air/water
4150*1650*2480
BMB30
3T
21.5
11
21.4
-8
9.74
Air/water
5000*1800*2480
BMB50
5T
35.9
18
35.6
-8
16.2
Air/water
5700*2200*2480
BMB80
8T
56.7
30.7
61.4
-8
27
Air/water
6300*2200*2480
BMB100
10T
77.3
37.5
75
-8
33.7
Air/Evaporative
6450*2200*2530
BMB120
12T
85
41.35
82.7
-8
37.3
Air/Evaporative
9000*2250*2530
BMB150
15T
106.8
59.3
116.6
-8
49.3
Air/Evaporative
11600*2250*2530
BMB200
20T
147
85.8
170.6
-8
75.1
Air/Evaporative
12490*2750*2530
BMB250
25T
210
92.4
184.8
-8
83.2
Air/Evaporative
13900*3000*2530
BMB300
30T
230.8
107
214
-8
92
Air/Evaporative
16300*3000*2530

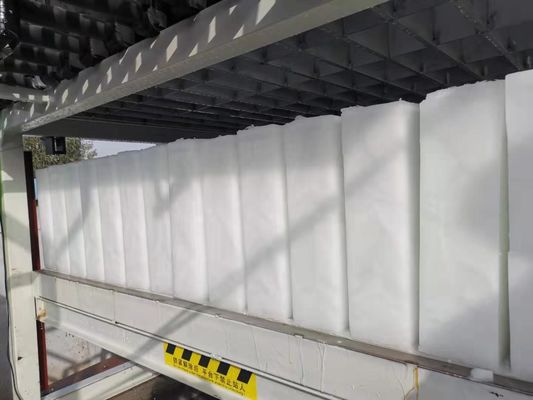

Ice Details



Feature

1.High density, high strength, not easy to melt
2.Can be made into colorful ice
3.Available in a variety of sizes
4.Clean, hygienic and free of impurities
5.Low temperature
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 2
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 3
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 4
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 5
Product Accessories
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 6
Bitzer /Refcomp/Frascold Compressor
1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;
2.the brand effect is good, the quality is more guaranteed;
3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.
Reliable Condenser
1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;
2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 7
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 8

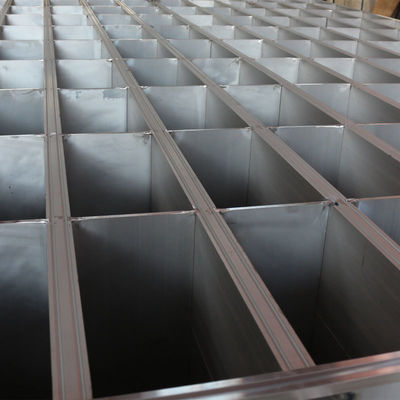

SUS304 Evaporator
1.Use stainless steel material for good grade
2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency


PLC+ Touch screen
1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield
4.More status indications to facilitate machine
maintenance
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 9
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 10
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 11
Fully equipped with Schneider Switches
1. The panel of the socket is exquisite, flat and beautiful, simple and elegant
2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness
3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 12
Cooling Tower
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 13
Cooling Pump
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 14
Pressure controller
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 15
Oil Separator
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 16
Solenoid valve
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 17
Dry Filter
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 18
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 19
Product Technical Map
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 20
Application Field


1.Port, wharf ice factory
2.Aquatic product preservation and cooling
3.Long-distance transportation, aquatic food preservation
4.Cooling and eating in special fields
5.Ice sculpture viewing
6.Edible ice fields, etc.
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 21
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 22
OUR COMPANY
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 23
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 24
Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 25
We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal equipment. We have our own processing plants in Shanghai, Suzhou and Jiangsu. Bingma integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries. Each product will be inspected by the quality inspection department before shipment to ensure that the product can be delivered intact. into the hands of every customer.
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 26

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 27
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 28
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 29
Certification
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 30
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 31
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 32
Design 15 Tons Industrial Ice Making Machine Direct Cooling Block Ice B 320x120x800 mm 33
Customer Feedback
FAQ
Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment
without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at
the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has
special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you
only need to connect water and electricity to use.
