1 Ton Industrial Ice Making Machine with Direct Cooling and Other Ice Storage Capacity

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	ICEMA

Payment & Shipping Terms:

Price:	$8,599.00/pieces 1-4 pieces

Contact Now

Detailed Product Description

Applicable Industries:	Food & Beverage Factory, Farms, Food Shop, Energy & Mining, Food & Beverage Shops	Condition:	New
Ice Shape:	Block	Voltage:	3P/380V/50HZ
Power:	11KW, 8KW	Dimension(LWH):	500018002480mm
Weight:	400 KG	Warranty:	1.5 Years
Key Selling Points:	Stainless Steel	Ice Storage Capacity:	Other
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years	Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Compressor Brand:	Emerson, Bitzer, Maneurop, Daikin	Application:	Industrial
Model:	BMB10	Output:	1T/24H
Condenser:	Air/water Cooling	Air/water Cooling:	R404A/R22
Rated Current:	10.7A	Rated Voltage:	3P/380V/50HZ
Block Ice A:	380x180x900 Mm;50kg	Block Ice B:	320x120x800 Mm ;25kg
Machine Size:	500018002480mm
Highlight:	1 Ton Industrial Ice Making Machine

PRODUCT DESCRIPTION

Model:ETD-B20
Ice Production:20000kg/24h

Cooling Capacity : 14kw
Compressor:
Bitzer/Frascold/Refcomp
Refrigerant: R404a/R507a/R22
Net Weight:2860kg
Power Supply:
220V/380V/415V/460V 3P/50hz/60hz
Warranty:18months

Features
1. Small footprint, one-time icing, saving labor and time;
2. Fully automatic ice making, ice melting and deicing process, high efficiency;
3. Modular design, convenient on-site installation, and convenient later movement;

Product Parameters

Model	Output(T)	Cooling capacity (kw)	Input power (kw)	Rated current (A)	lce temp （℃）	Compressor power (kw)	Condensation	Machine Size LWH(mm)
BMB20	2T	14	7.7	14.3	-8	6.43	Air/water	415016502480
BMB30	3T	21.5	11	21.4	-8	9.74	Air/water	500018002480
BMB50	5T	35.9	18	35.6	-8	16.2	Air/water	570022002480
BMB80	8T	56.7	30.7	61.4	-8	27	Air/water	630022002480
BMB100	10T	77.3	37.5	75	-8	33.7	Air/Evaporative	645022002530
BMB120	12T	85	41.35	82.7	-8	37.3	Air/Evaporative	900022502530
BMB150	15T	106.8	59.3	116.6	-8	49.3	Air/Evaporative	1160022502530
BMB200	20T	147	85.8	170.6	-8	75.1	Air/Evaporative	1249027502530
BMB250	25T	210	92.4	184.8	-8	83.2	Air/Evaporative	1390030002530
BMB300	30T	230.8	107	214	-8	92	Air/Evaporative	1630030002530

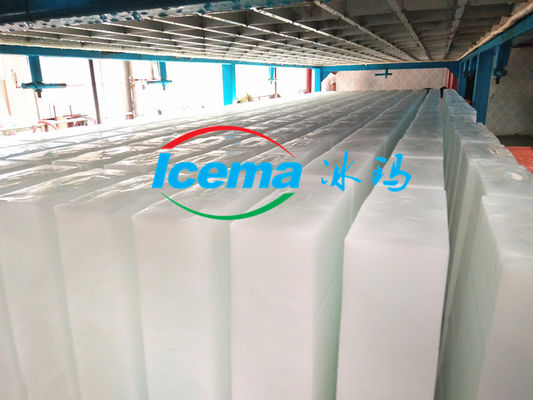

Ice Details

Feature

1.High density, high strength, not easy to melt
2.Can be made into colorful ice
3.Available in a variety of sizes
4.Clean, hygienic and free of impurities
5.Low temperature

Product Accessories

Bitzer /Refcomp/Frascold Compressor

1. Select well-known brand compressors in the refrigeration industry, with sufficient cooling capacity and strong universality of accessories;

2.the brand effect is good, the quality is more guaranteed;

3. Most countries and regions have after-sales service contact points, and after-sales service is more secure.

Reliable Condenser

1. High-efficiency internal thread copper tube heat exchanger, larger heat exchange area and good heat exchange effect;

2. The end cover is detachable, which is convenient for cleaning scale;
3. Precision machining, effectively preventing leakage;
4. It is very suitable for use in environments above 35°;

SUS304 Evaporator

1.Use stainless steel material for good grade

2. The style of inside machine ensures constant running at the lowest power
consumption
3.It is easy to discharge oil; High heat transfer efficiency

PLC+ Touch screen

1.The program can be directly read and written with Siemens software.
2.The fault code can be directly viewed, and the machine status can be seen at a glance
3.Real-time display of ice making and de-icing time,easier to calculate yield

4.More status indications to facilitate machine
maintenance

Fully equipped with Schneider Switches

1. The panel of the socket is exquisite, flat and beautiful, simple and elegant

2.Material thickness is more intimate Schneider switch has achieved a great improvement in thickness

3.Safe, durable and durable, stable in performance, using super green and environmentally friendly materials

Cooling Tower

Cooling Pump

Pressure controller

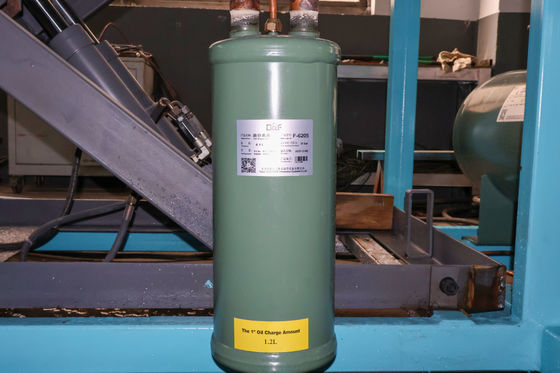

Oil Separator

Solenoid valve

Dry Filter

Product Technical Map

Application Field

1.Port, wharf ice factory

2.Aquatic product preservation and cooling

3.Long-distance transportation, aquatic food preservation
4.Cooling and eating in special fields

5.Ice sculpture viewing

6.Edible ice fields, etc.

OUR COMPANY

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurryice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage,spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

We have our OEM factory in Suzhou, specializing in supplying all kinds of air condensers and air conditioning terminal equipment. We have our own processing plants in Shanghai, Suzhou and Jiangsu. Bingma integrates high-quality technology, production and logistics resources, specializing in the production and marketing of ice machines. The company has a strong technical team and modern production equipment, dedicated to To produce high-quality and high-performance products, all products have a minimum warranty period of 18 months, eliminating customers' after-sales worries. Each product will be inspected by the quality inspection department before shipment to ensure that the product can be delivered intact. into the hands of every customer.

We participate in promotion and industry exchange activities attentively. In the long-term development process, the company has established long-term good partnership with many customers at home and abroad with excellent product quality, good product performance, leading technology advantages, and the company leads customers to visit It is our most important business philosophy to ensure that customers are assured of products by establishing the factory's production base, various production machinery and equipment, and finished products.

Certification

Customer Feedback

Q1-What is the lifespan of the machine?
R1- It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Usually, pay attention to the cleaning of the machine.
Q2-What is your payment method?
R2-The most ideal payment method for us is T/T, but we also accept pre-T/T+L/C or 100% L/C at sight. You can also pay directly at the Alibaba background. We have several payment methods, which one do you think is more suitable for you?
Q3-Which brands of compressors do you use?
R3- There are mainly brands such as BITZER, Frascold, Refcomp, Copeland, Highly and so on.
Q4-What type of refrigerant are you using?
R4-The use of refrigerant is determined according to the model. R22, R404A, and R507A are routinely used. If your country has special requirements for refrigerants, you can tell me. (The tube ice machine uses R404A or R507A, and other models can also use R22)
Q5- Do I still need to add refrigerant and refrigeration oil to the machine I received?
R5-No need, we have added refrigerant and refrigerating oil according to the standard when the machine leaves the factory, you only need to connect water and electricity to use.
