High Productivity 10T/24H Industrial Ice Flake Making Machine for Fishing Seafood

Name: High Productivity 10T/24H Industrial Ice Flake Making Machine for Fishing Seafood
Brand: ICEMA
SKU: ICEMA
Price: 23 USD
Availability: InStock
Rating: 4.7 (117 reviews)

Product Details

Place of Origin: Jiangsu, China

Brand Name: ICEMA

Payment & Shipping Terms

Price: $23,299.00/pieces 1-3 pieces

Get Best Price

Product Details

Product Description

Highlight:

Applicable Industries:	Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops	Condition:	New
Ice Shape:	Flake Ice	Voltage:	3P/380V/50HZ
Dimension(LWH):	253018301835mm	Weight:	1540 KG
Warranty:	1.5 Years	Key Selling Points:	High Productivity
Ice Storage Capacity:	Other	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1.5 Years
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Expansion Valve, Evaporator, Condensor	Compressor Brand:	Emerson, Frascold, Bitzer, Refcomp, Hanbell
Application:	Industrial, Ocean Fishing	Product Name:	Ice Flake Making Machine
Keyword:	Flake	Compressor:	Emerson/Bitzer
Refrigerant:	R404A/R22	Insulation Material:	PU Material
Ice Making Speed:	12-17 Minutes / Time	Evaporator:	Copper Plated Nickel Ice Mold

Applicable Industries:	Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Condition:	New
Ice Shape:	Flake Ice
Voltage:	3P/380V/50HZ
Dimension(LWH):	253018301835mm
Weight:	1540 KG
Warranty:	1.5 Years
Key Selling Points:	High Productivity
Ice Storage Capacity:	Other
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Warranty Of Core Components:	1.5 Years
Core Components:	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Expansion Valve, Evaporator, Condensor
Compressor Brand:	Emerson, Frascold, Bitzer, Refcomp, Hanbell
Application:	Industrial, Ocean Fishing
Product Name:	Ice Flake Making Machine
Keyword:	Flake
Compressor:	Emerson/Bitzer
Refrigerant:	R404A/R22
Insulation Material:	PU Material
Ice Making Speed:	12-17 Minutes / Time
Evaporator:	Copper Plated Nickel Ice Mold

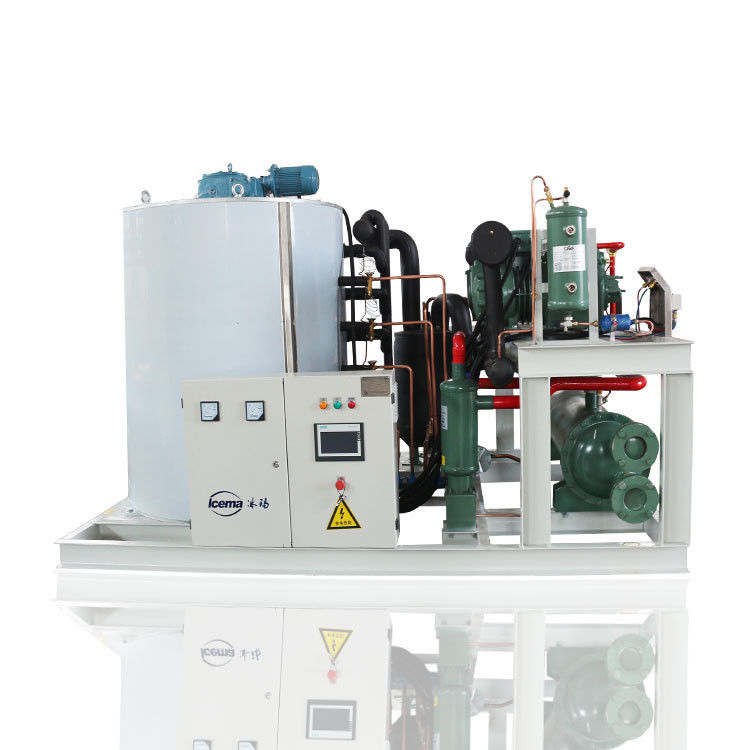

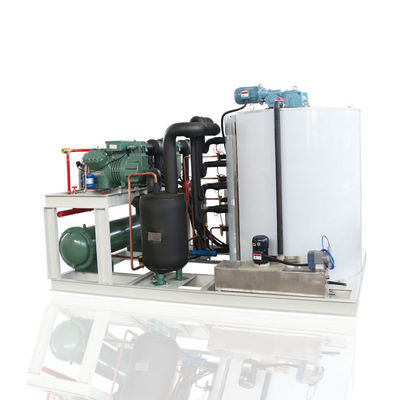

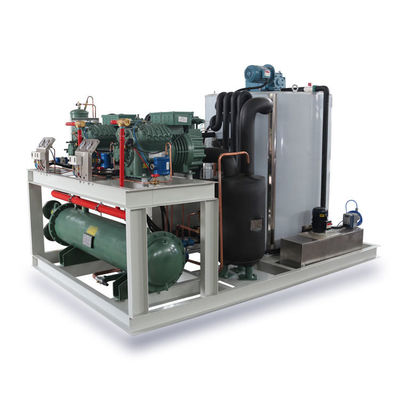

High Productivity 10T/24H Industrial Ice Flake Making Machine for Fishing Seafood

Products Description

FLAKE ICE MACHINE DESCRIPTION

Flake ice, it is a kind of irregular flaky ice. Size is different; the biggest flake size is about 30.5mm*30.5 mm, thickness of 1.5 mm - 2.5 mm. Because of its dry, safe to contact by the characteristics of the cooling material ,so it is widely used in hotels, supermarkets, chemical industry, construction and deep-sea fishing, etc.

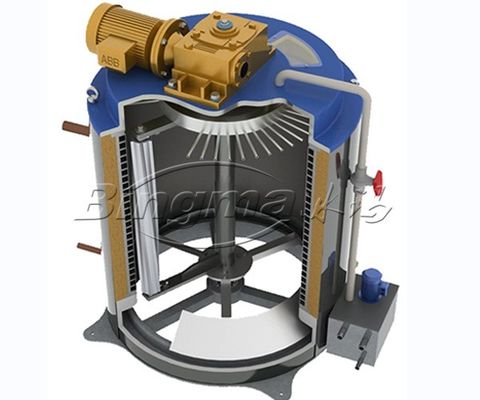

The freezing principle of flake ice machine is simple, put the city water directly (can also be equipped with water filter) into the cold water tank of assembling unit, When the refrigeration system begins to work, the closed loop heat exchange of refrigerant, outside water flow into the tank, the water is pumped into the water distribution pan by the

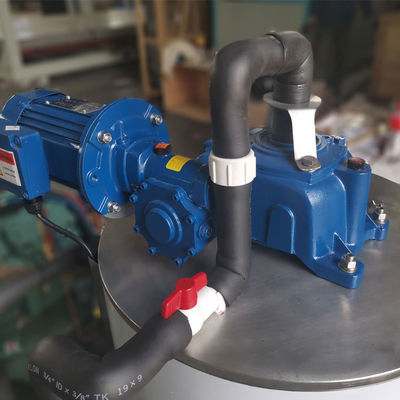

circulating pump, driven by the reducer, the water in the pan evenly flows down the inner wall of evaporate, the refrigerant in the refrigeration system evaporates through the loop inside the evaporator and absorbs large amount of heat by exchanging heat with the water on the wall, as a result, the water flow over the surface of inner evaporator wall sharply cools to below the freezing point and freezes into ice instantaneously, Part of the water film attached the bottom of evaporator and then into the water for recycling, when the ice on the inner wall reaches a certain thickness, the spiral ice skates is driven to peel ice from the inner wall, thus ice flakes form, fall into the ice storage bin at the bottom of ice flakes and stored for future cycling.
Generally speaking, the flake ice can fall into the storage in 30 seconds; stop making ice in 2 minutes after machine turned off.

FUTURES AND SUITABLE INDUSTRY

Features：
1. SUS316 stainless steel evaporator;
2. The frame is made of SUS316 stainless steel or hot dip galvanized steel;
3. Use deep groove piston compressor and special water condenser, longer service life;
4. The water-cooled aircrew need not equipped with cooling tower, can significantly
reducecustomer costs;
5. Can be directly installed on the fishing boat, it is more convenient to use.

Suitable industry：
1. The dock or the place need to use the sea ice;
2. The fishing boats, Making ice is suitable for deep-sea fishing.

Product Paramenters

Model	Output	Refrigerate Capacity	Total Power	Rated Current	Compressor Power	Refrigerant	Cooling Way	Unit Size LWH (mm)
BMSF10	1T	6.5KW	5.9KW	11.8A	4.6KW	R507/R404A	Air/Water	1320970680
BMSF20	2T	12.7KW	11.3KW	22.6A	8.6KW	R507/R404A	Air/ Water	150011001050
BMSF30	3T	18.4KW	15.8KW	31.6A	12.3KW	R507/R404A	Air/Water	174513601250
BMSF50	5T	32.8KW	27.7KW	55.4A	22.7KW	R507/R404A	Air/Water/ Evaporative	220015001600
BMSF80	8T	49KW	41KW	82A	36KW	R507/R404A	Air/ Water/ Evaporative	274019001690
BMSF 100	10T	67.5KW	57.8KW	115A	52.5KW	R507/R404A	Air/ Water/ Evaporative	274019001830

Company Profile

Shanghai ICEMA refrigeration technology co.,LTD is a technology-based enterprise that pay attention to user experience.According to customer requirements,Company can produce intermediate,low and ultra low temperature refrigeration system,covering cooling, keeping fresh,cold storing,freezing,quick freezing and other fields,our machines not only have a large market share in china,and also be exported to Southeast Asia, Africa, Middle East,South America,Europe and other countries.According to the developing requirement of the market,SHANGHAI ICEMA refrigeration technology co., LTD has developed a group of standard machines for customers in all industries, including brine refrigeration block ice machine, direct refrigeration block ice machine (high quality aluminum plate), tube ice machine, seawater type flake ice machine, freshwater type flake ice machine, plate ice machine, slurry ice machine, cube ice machine, water chiller, rake ice storage, spiral ice storage, fruits,vegetables and meat cold storage, spiral ice feed system, etc. In Suzhou we have our OEM factory that is specialized to provide all kinds of air condenser and terminal devices of air condition.

Products catalogues

Certifications

Customer Photos

FAQ

1. Where is your company?
Changye road, lijia town, wujin district, changzhou city, jiangsu province, China.

2.What are your advantages?
We ensures our products can reach the strict quality standards and the goods can be delivered on time.
We provide warmly and friendly service and after-sale service.
We will reply you within 24 hours.
We guarantee the best price and multiple choices.

3.When can I get the price?
Usually within 24 hours after we get your inquiry. And if you are very urgent, you can call us or tell us by e-mail so we will
prioritize your inquiry.

4. How to confirm the quality before placing the order?
You are warmly welcomed to visit our factory and check the quality.

5. What is your price?
Our FOB price is based on quantity, material and size you buy.

6. What can you do for us?
All material/color/size are available, also we can customize products as your requirements. Any questions, pls don’t hesitate to contact us!
